Technical Specifications
7-75
ET 200X Distributed I/O Device
EWA 4NEB 780601602-06
Assigning addresses to the pneumatic interface module for the CPV10

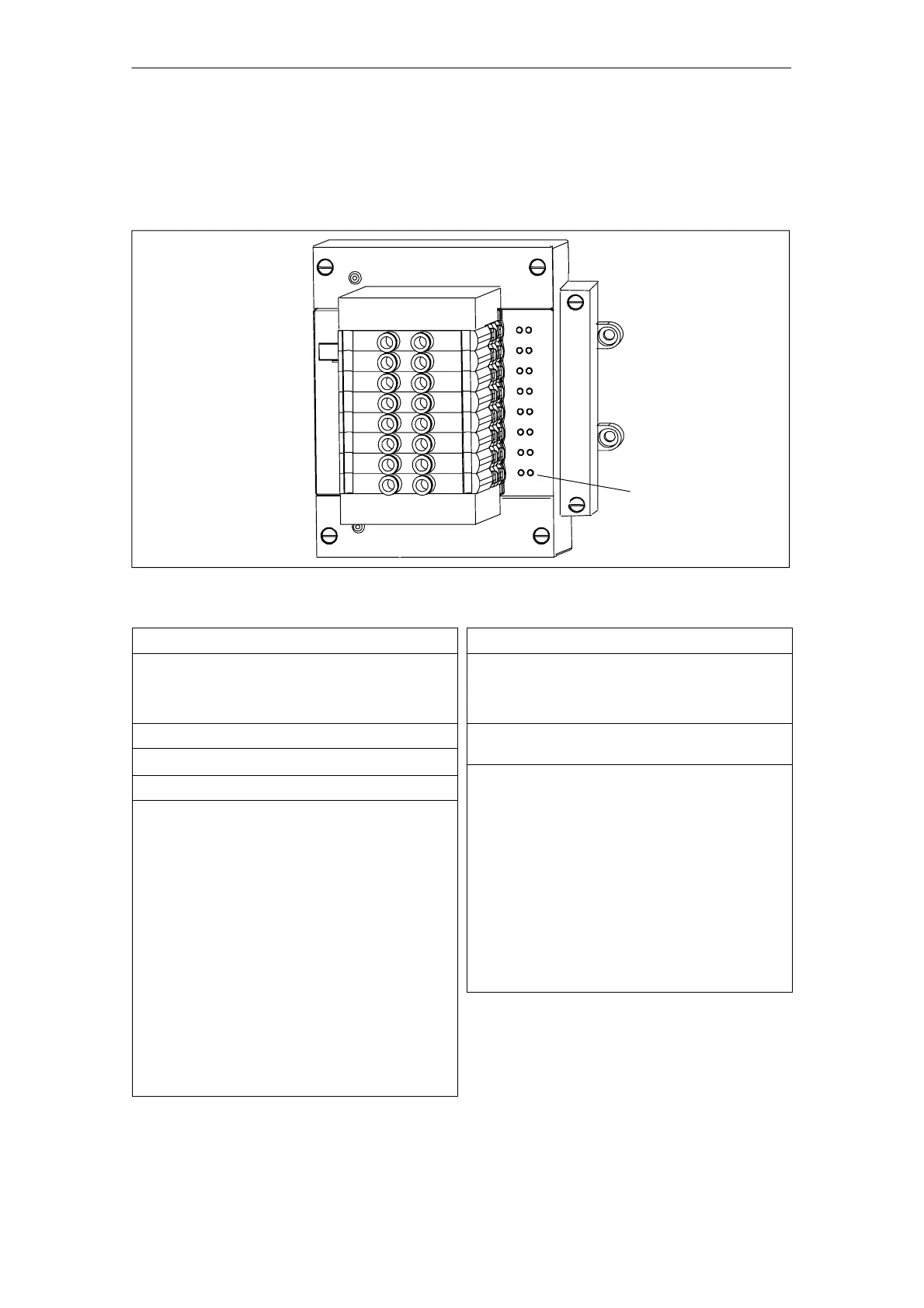

The figure below shows the pneumatic interface module with FESTO CPV10 valve
island and addresses.
0.0
0.2
0.4
0.6
1.0
1.2
1.4
1.6
0.1
0.3
0.5
0.7
1.1
1.3
1.5
1.7
0.0
0.2
0.4
0.6
1.0
1.2
1.4
1.6
0.1
0.3
0.5
0.7
1.3
1.5
1.7
LEDs
1.1
Figure 7-20 Assigning addresses to the pneumatic interface module
Dimensions and weight
Dimensions
W H D (mm)
147 152 55
Weight Approx. 450 g
Module-specific data
Number of outputs 16
Voltages, currents, potentials
Electrical isolation
Between extension
interface and channels
Yes, optocouplers
Between channels No
In groups of 16
Insulation tested with 500 VDC
Power input
From backplane bus
(1L+)
From 2L+ load voltage
(incl. CPV10 valves)
Max. 35 mA
Max. 320 mA
Power loss of module (incl.
valves)
Typ. 6 W
Status, alarms, diagnostics
Status display Green LED per digi-
tal output
Alarms None
Valve island for connection meets following
conditions*
Medium Compressed air
filtered (40 mm)
Oiled (oil: VG 32)
Unoiled/vacuum
Pressure range 3 to 8 bars
Rated flow 400 l/min
Valve switching times
On, change
Off
17 ms
25 ms
Current input per valve 20 mA
* Further details on valve islands will be found in the FESTO
documentation on valve islands.
