Siemens SIMATIC ET 200X - Configuration of the ET 200 X with Pneumatic Interface Module (Example)

Product Overview
1-12
ET 200X Distributed I/O Device
EWA 4NEB 780601602-06
Pneumatic interface module for the CPV10 and CPV14
The pneumatic interface modules are expansion modules for connecting two
Regular CPV10 or CPV14 FESTO valve islands.
Each of the two FESTO valve islands can be equipped with as many as 16 valves
(standard components of the FESTO company). The valve islands differ in respect
of their rated air flows (CPV10: 400 l/min; CPV14: 800 l/min).
You can integrate up to six pneumatic interface modules into an ET 200X.

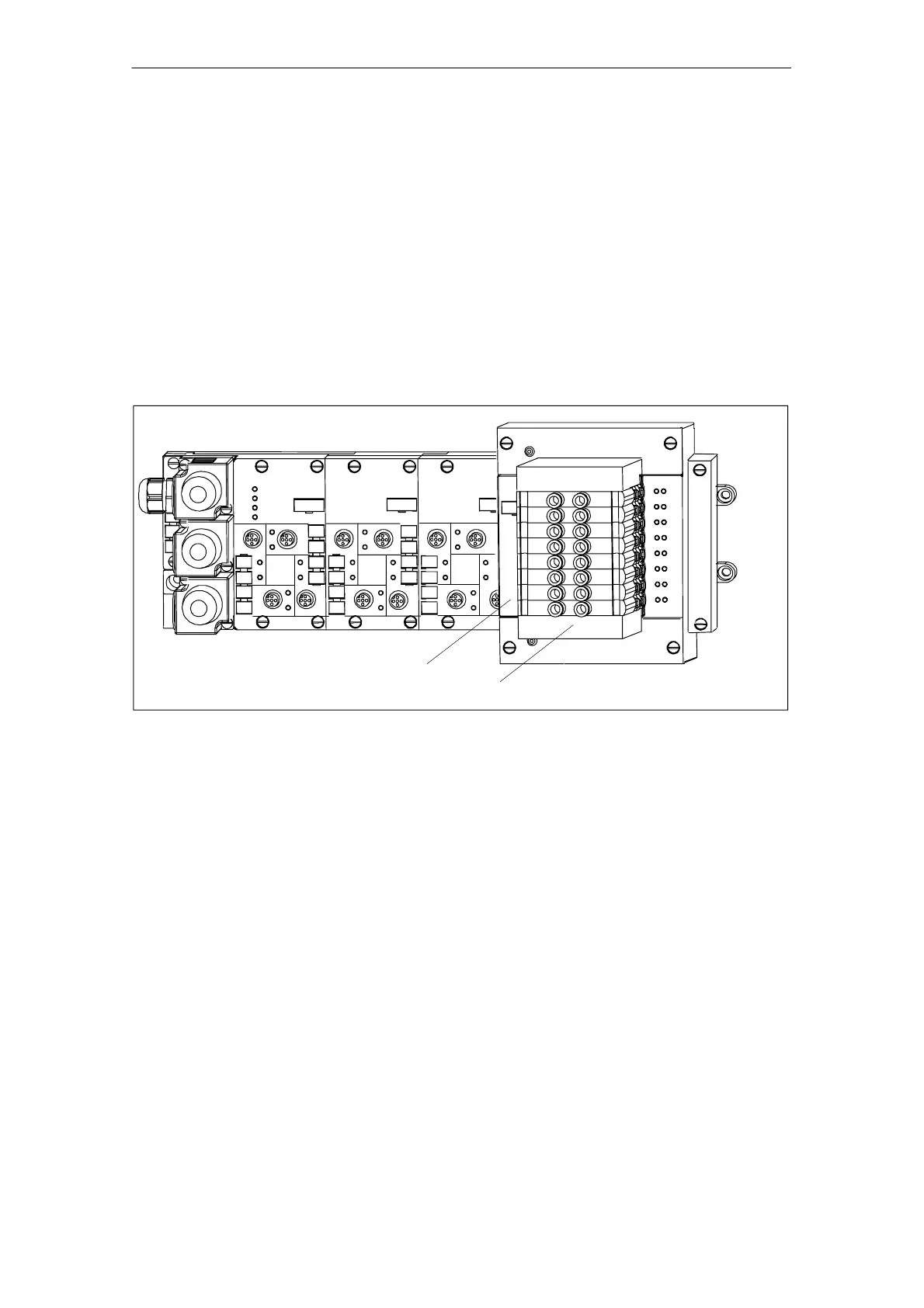

Configuration of the ET 200X with pneumatic interface module and FESTO valve
island (example)
X1 X2
X3
X4
X1 X2
X3
X4
X1 X2
X3
24 VDC
BF
ON
SF
Pneumatic interface module for CPV10
FESTO valve island CPV10
Figure 1-6 Configuration of the ET 200X with pneumatic interface module (example)
