Dimesioned Drawings and Pinouts
C-8
ET 200X Distributed I/O Device
EWA 4NEB 780601602-06
C.6 Dimensioned drawing – SITOP power supply unit
The figure below shows the dimensioned drawing of the SITOP power power
supply. You must add the bending radius of your particular cable to the specified
overall height.
53.5
53.5
28.25
119.5
146.5
265
283
103.5
126.5
133.5
8.8197
160.5

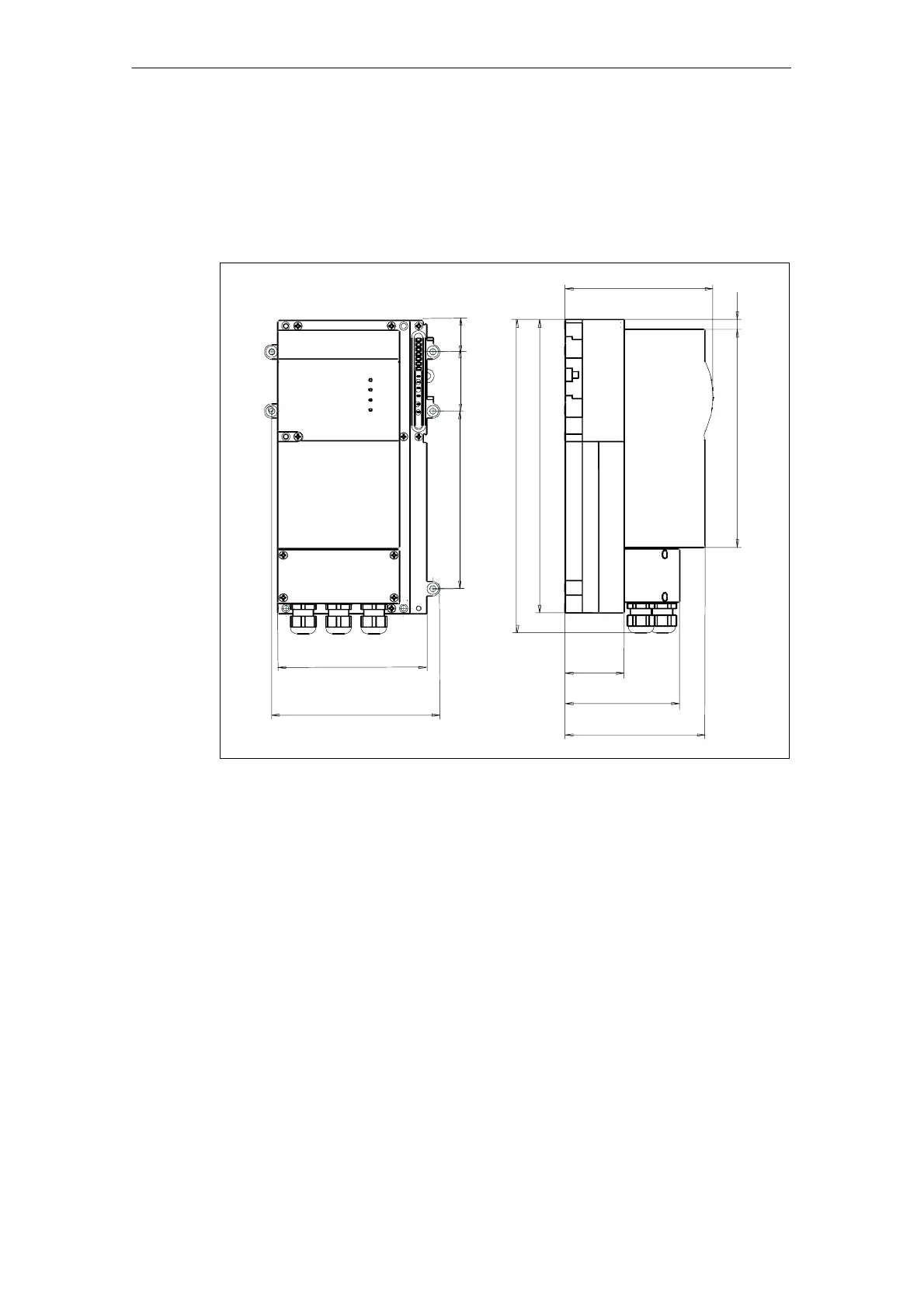

Figure C-8 Dimensioned drawing of SITOP power
