Dimesioned Drawings and Pinouts
C-6
ET 200X Distributed I/O Device
EWA 4NEB 780601602-06
C.4 Dimensioned drawing – pneumatic interface module EM 148-P
DO 16 y P/CPV10 and ...14

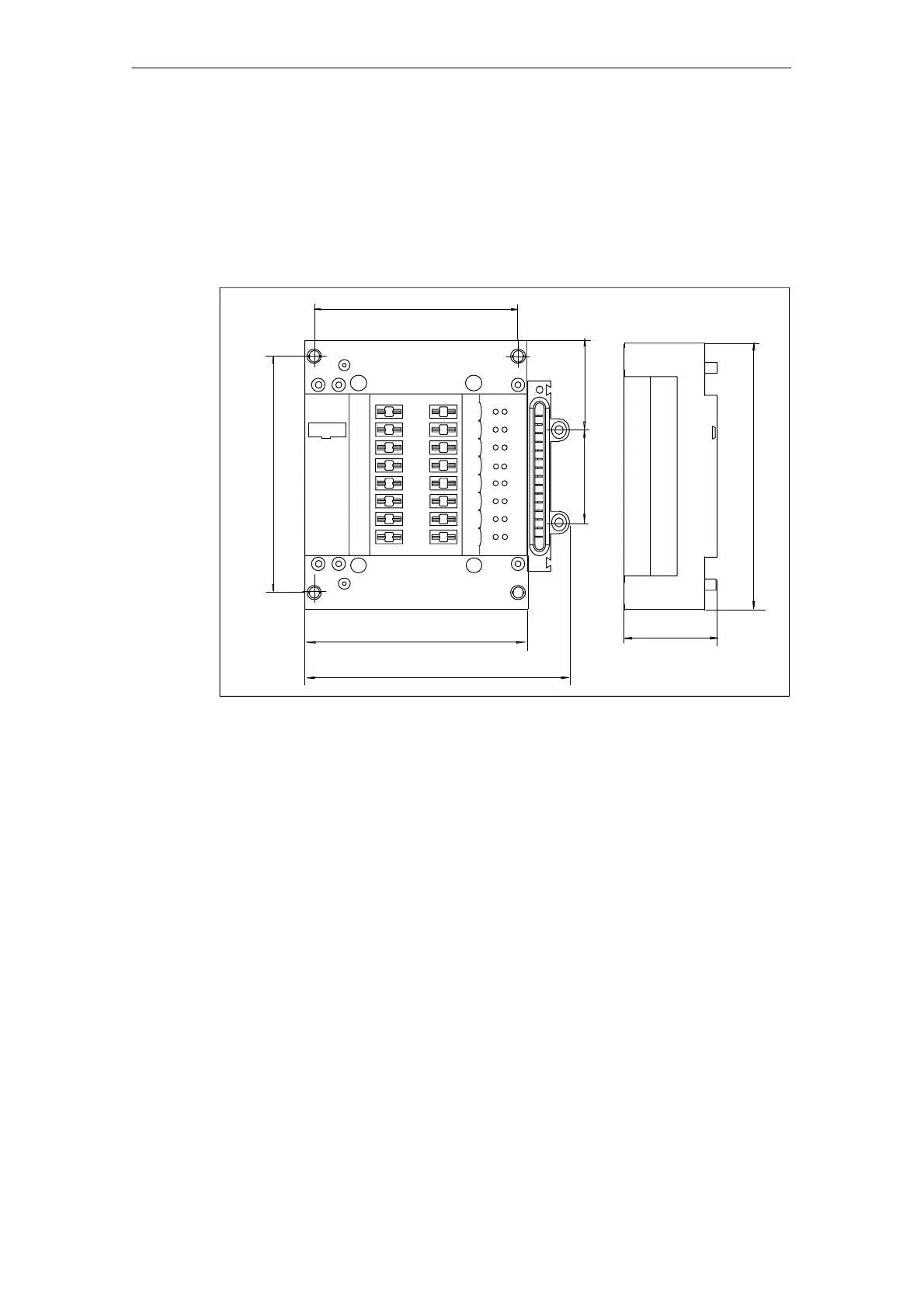

The dimensioned drawing of the pneumatic interface module is shown below. You
must add the depth of the FESTO valve island, and the length and bending radius
of the tubing to the specified overall depth.
53.5
120
147
152
55
48.25
109.5
132
Figure C-6 Dimensioned drawing of the pneumatic interface module
