Siemens SINAMICS G130 - TM31 Digital Outputs

Output terminals
8.3 TM31 digital outputs
Inverter chassis units
Operating Instructions, 07/2016, A5E00331449A
373
Set TM31.AO_char. y1 to 0 mA.
Set TM31.AO_char. x2 to 100.00%.
Set TM31.AO_char. y2 to 20 mA.
8.3
TM31 digital outputs
Description
Four bi-directional digital outputs (terminal X541) and two relay outputs (terminal X542) are
available on the optional TM31 terminal block module. These outputs are, for the most part,
freely parameterizable.
Preconditions
● The Power Module, CU320, and TM31 have been correctly installed.
● The "TM31 terminals" or "Profidrive+TM31" default setting was chosen during
commissioning:
STARTER:
"TM31 terminals" or "Profidrive+TM31"
AOP30:
"2: TM31 terminals" or "4: Profidrive+TM31"

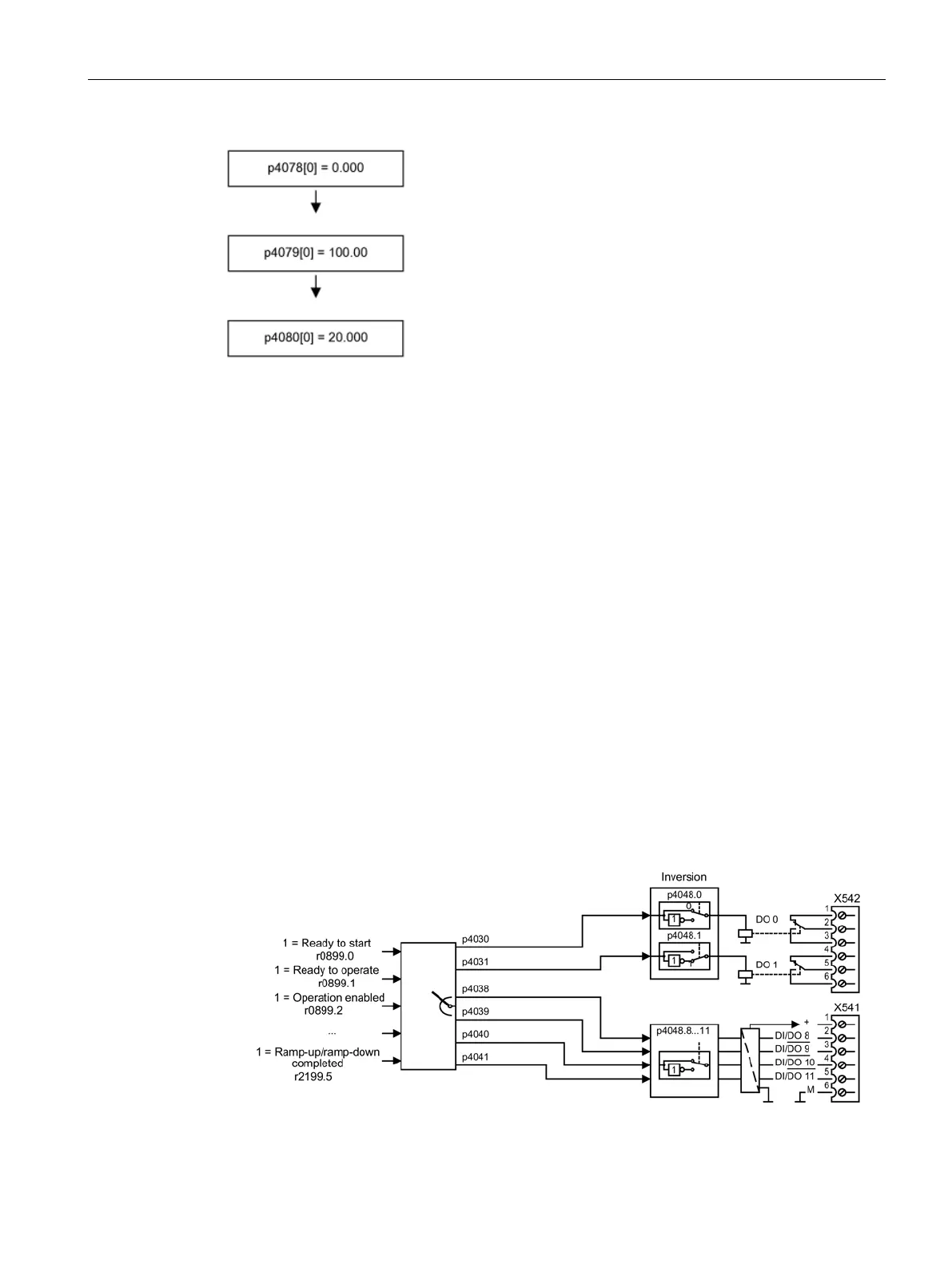

Signal flow diagram
Figure 8-2 Signal flow diagram: Digital outputs
