Commissioning Manual
6FC5397-4EP10-0BA8, 07/2018
45

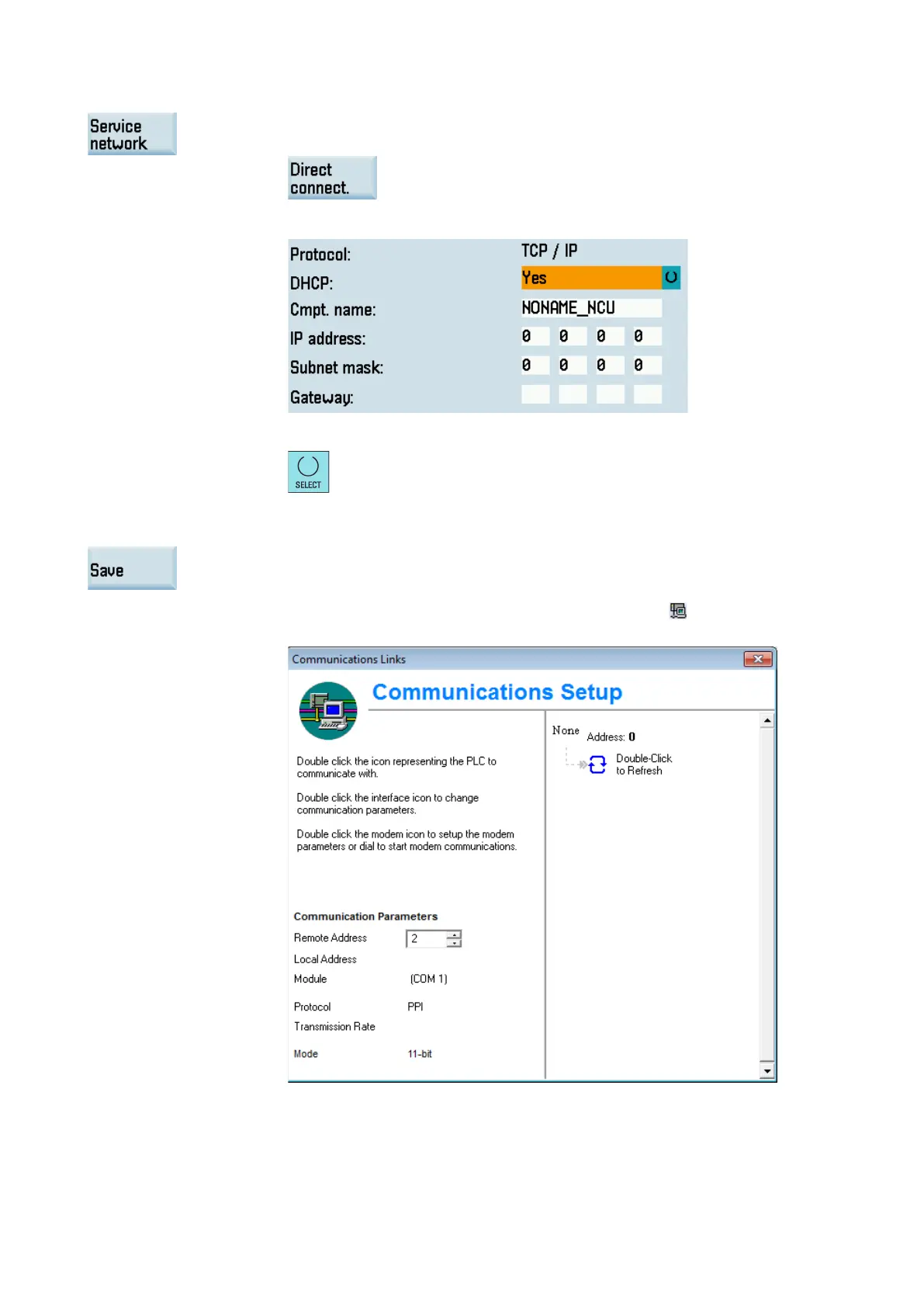

Press this softkey to enter the window for the network config
uration.
Make sure the following vertical softkey is deactivated:
Configure the network as required in the following window:
You can configure DHCP with the following key:
If you select "No" for DHCP, you must enter the IP address (which must belong to the
same network as that of your computer) and subnet mask manually.
Press this softkey to save the configuration. If
you select "Yes" for DHCP, you also need to
restart the control system to activate the network configuration.
Start PLC Programming Tool on your computer, and click the
button in the toolbar to
open the following dialog box:
