MD 36310: ENC_ZERO_MONITORING > 0 activates the zero marker
monitoring. The value indicates the number of pulses that may be lost.
Special feature:
Value = 100, i.e. the hardware monitoring for the encoder is also switched off.
MD 36310: ENC_ZERO_MONITORING (zero marker monitoring)
MD 36610: AX_EMERGENCY_STOP_TIME (duration of the braking ramp in
error states)
Alarm “25020 axis [name] zero marker monitoring”.
It is possible to define two actual value branches with SINUMERIK 840D. These
actual values must then, however, be present in the hardware. The actual value
branch which is active for the position control can then be selected via the PLC
interface. When this switchover takes place, the actual position value difference
is evaluated. If this difference is greater than the value entered in MD
36500: ENC_CHANGE_TOL, then “Measuring system changeover not
possible” alarm is generated and the changeover is prevented.
MD 36500 ENC_CHANGE_TOL (max. tolerance for actual position
changeover)
NST “Position measuring system 1” (DB31, ... DBX1.5)
NST “Position measuring system 2” (DB31, ... DBX1.6),
Alarm “25100 axis %1 Measuring system changeover not possible”.
Setpoint
processing
Setpoints
Interpolator
Speed
setpoint
Pos.
controller
MD 36610: AX_EMERGENCY_STOP_TIME
MD 36210: CTRLOUT_LIMIT
Control
loop
model
MD 36400:
CONTOUR_TOL
MD 36060:
STSTILL_VELO_TOL
MD 36200:
AX_VELO_LIMIT
MD 36500: ENC_CHANGE_TOL
Actual value
processing
Actual value
processing
Drive
SIMODRIVE
611D
MD 36300: ENC_FREQ_LIMIT
MD 36310: ENC_ZERO_MONITORING
IS “Position measuring system 1/2 active”
Following error
MD 36000: STOP_LIMIT_COURSE
MD 36010: STOP_LIMIT_FINE
MD 36020: POSITIONING_TIME
MD 36030: STANDSTILL_POS_TO
MD 36040: STANDSTILLL_DELAY_TIME
MD 36050: CLAMP_POS_TOL
Braking
ramp
Drive
SIMODRIVE
611D
MD 36220: CTRLOUT_LIMIT_TIME

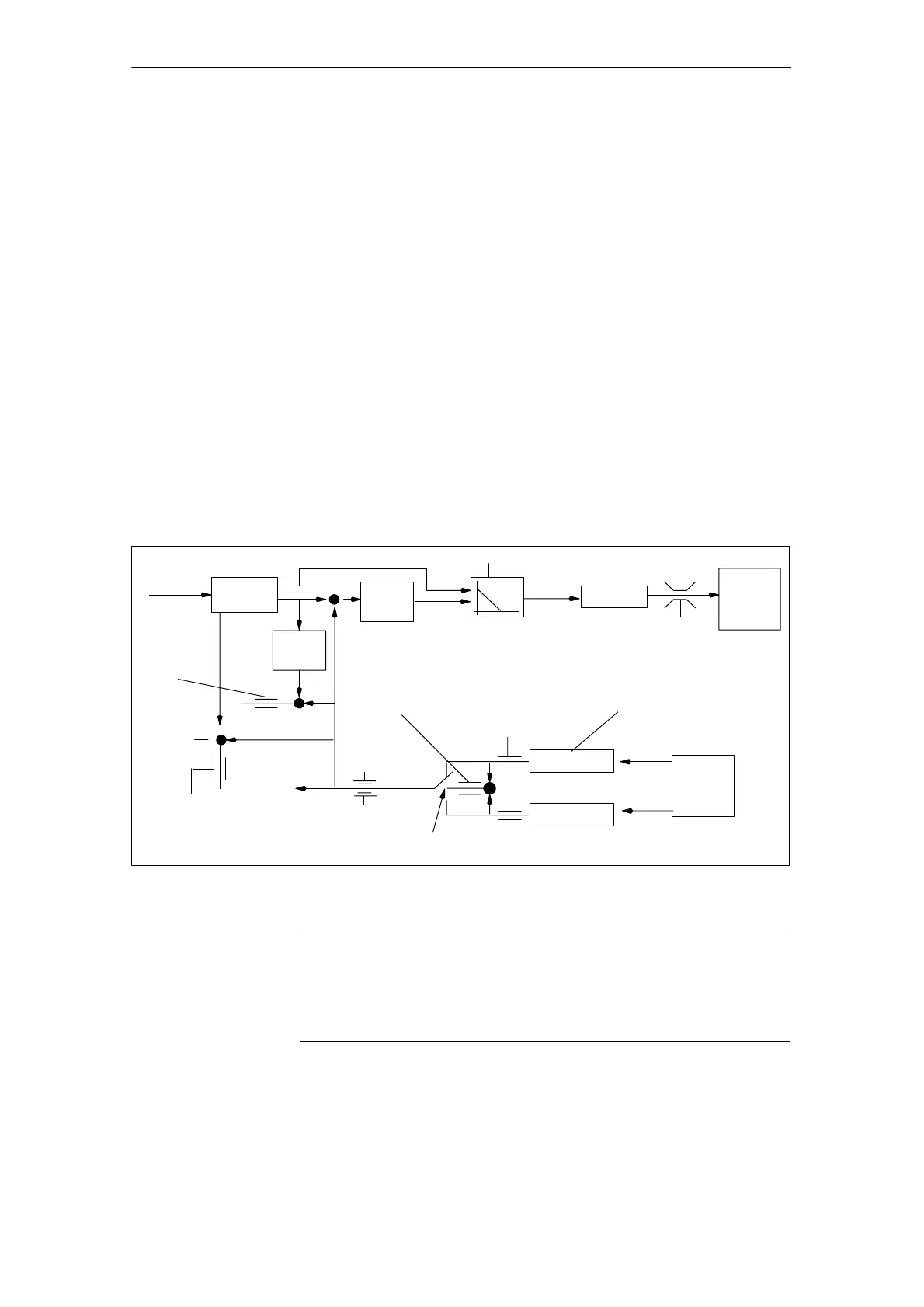

Fig. 6-20 Monitoring with SINUMERIK 840D
Note
The time set in MD 36620: SERVO_DISABLE_DELAY_TIME (cut-out delay for
controller enable) should always be larger than the time set in MD 36610:
AX_EMERGENCY_STOP_TIME (duration of the braking ramp for error states).
If this is not the case, the braking ramp in MD 36610 cannot take effect.
Encoder monitoring
(zero marker
monitoring)
Encoder monitoring
(tolerance for enco-
der switchover)
