Siemens SINUMERIK 840D Simodrive 611 digital User Manual

3
03/2006
3.3 MPI default configuration for SINUMERIK 840D
3-26
© Siemens AG 2006 All Rights Reserved
SINUMERIK 840D/810D Start-Up Guide (IADC) – 03/2006 Edition
3.3 MPI default configuration for SINUMERIK 840D
One or two machine control panels (interface for customer’s operating panels,
PP 031) and/or HHU are connected by means of parameter settings in the PLC
basic program (FB1). In this case, parameter settings using the STEP7 tool
“Communication Configuration” are no longer required.
Reference material: /FB1/ P3 Pl, Function manual for basic machines,
PLC basic program powerline
SINUMERIK 840D with one PCU and one machine control panel (MSTT) or
interface for customer’s operating panel on the BTSS.
At least firmware release V 03_01_01 for
S MCP
S interface for customer’s operating panel/PP 031
Every node on the MPI/BTSS bus must have a bus address (0...31).
ËËËËË
ËËËËË
ËËËËË
ËËËËË
PCU
ËËËËË
ËËËËË
ËËËËË
ËËËËË
ËËËËË
ËËËËË
ËËËËË
ËËËËË
NCK
PLC
ËËËËËËË
ËËËËËËË
ËËËËËËË
MSTT/interface for
customer’s operating panel
BTSS 1.5 MBaud
1
6
Default bus addresses
X101
SINUMERIK 840D
ËËËËË
ËËËËË
ËËËËË
ËËËËË
PG/start-up
tool
MPI 187.5 kBaud
0
13
3
2
X122

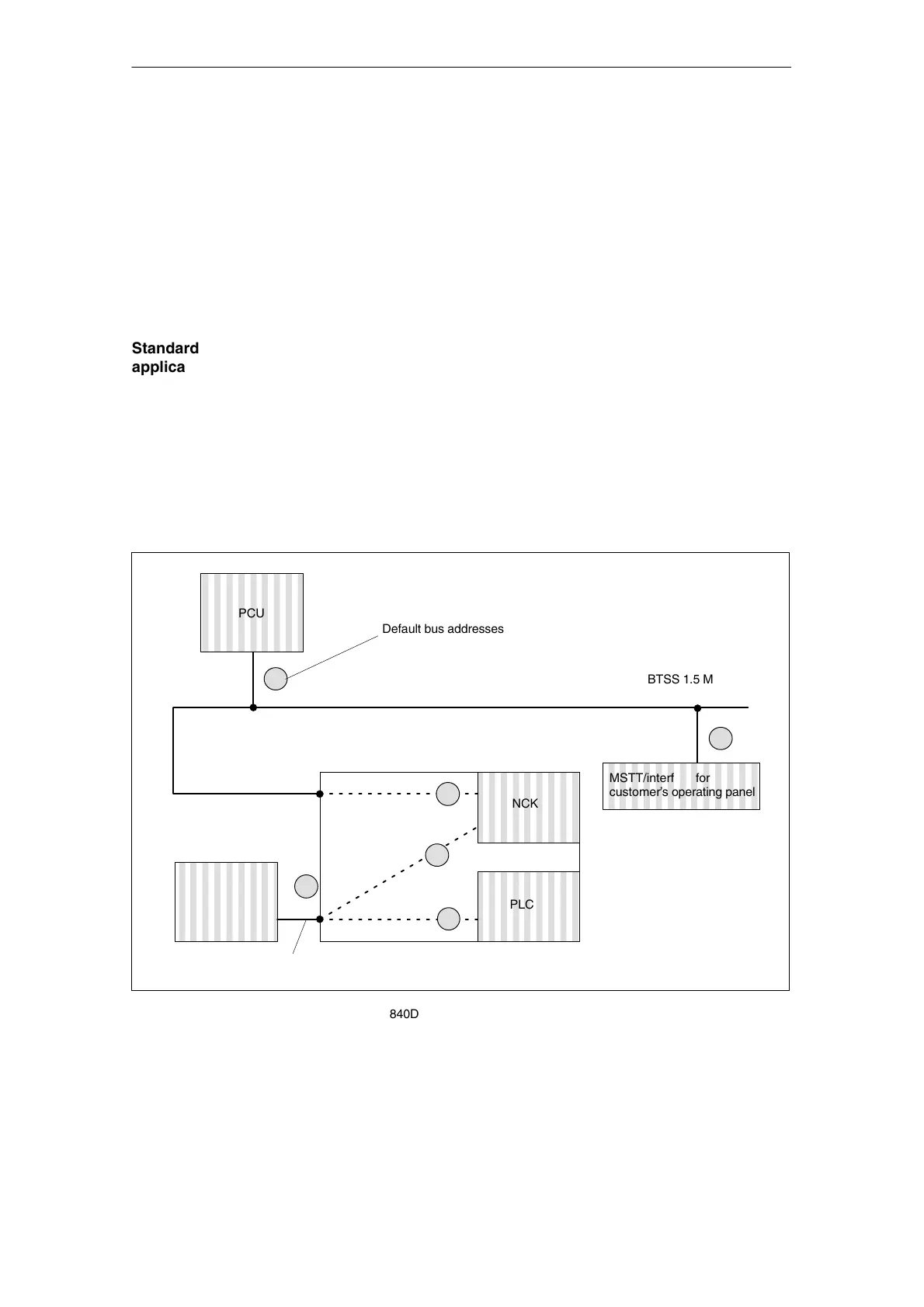

Fig. 3-6 Default application for SINUMERIK 840D
Standard
application
Requirement for
the hardware
Bus addresses
3 Settin
g
s, MPI/BTSS

Siemens SINUMERIK 840D Simodrive 611 digital Specifications

General

Type	CNC Control
Drive System	Simodrive 611 digital
Control System	SINUMERIK 840D
Application	Machine tools (milling, turning, grinding, etc.)
Compatibility	SINUMERIK 840D
