10.7 Trace function
10-213
© Siemens AG 2006 All Rights Reserved
SINUMERIK 840D/810D Start-Up Guide (IADC) – 03/2006 Edition
Undo change
The identifier changes are canceled.
Accept
The changed identifiers are transferred to the HMI_ADV\IBSVTSI.INI file and
are then displayed once more in connection with this trace.
Cancel
Exits the screen without saving the changes to the identifiers.
10.7.5 File functions
The File functions soft key is used to switch to the “File functions” screen.
Here you can save/load/delete the measurement settings and measured values
for the trace function.
The file functions are not intended to be a substitute for making a copy of all
system and user data, e.g. for archiving or series start-up purposes.

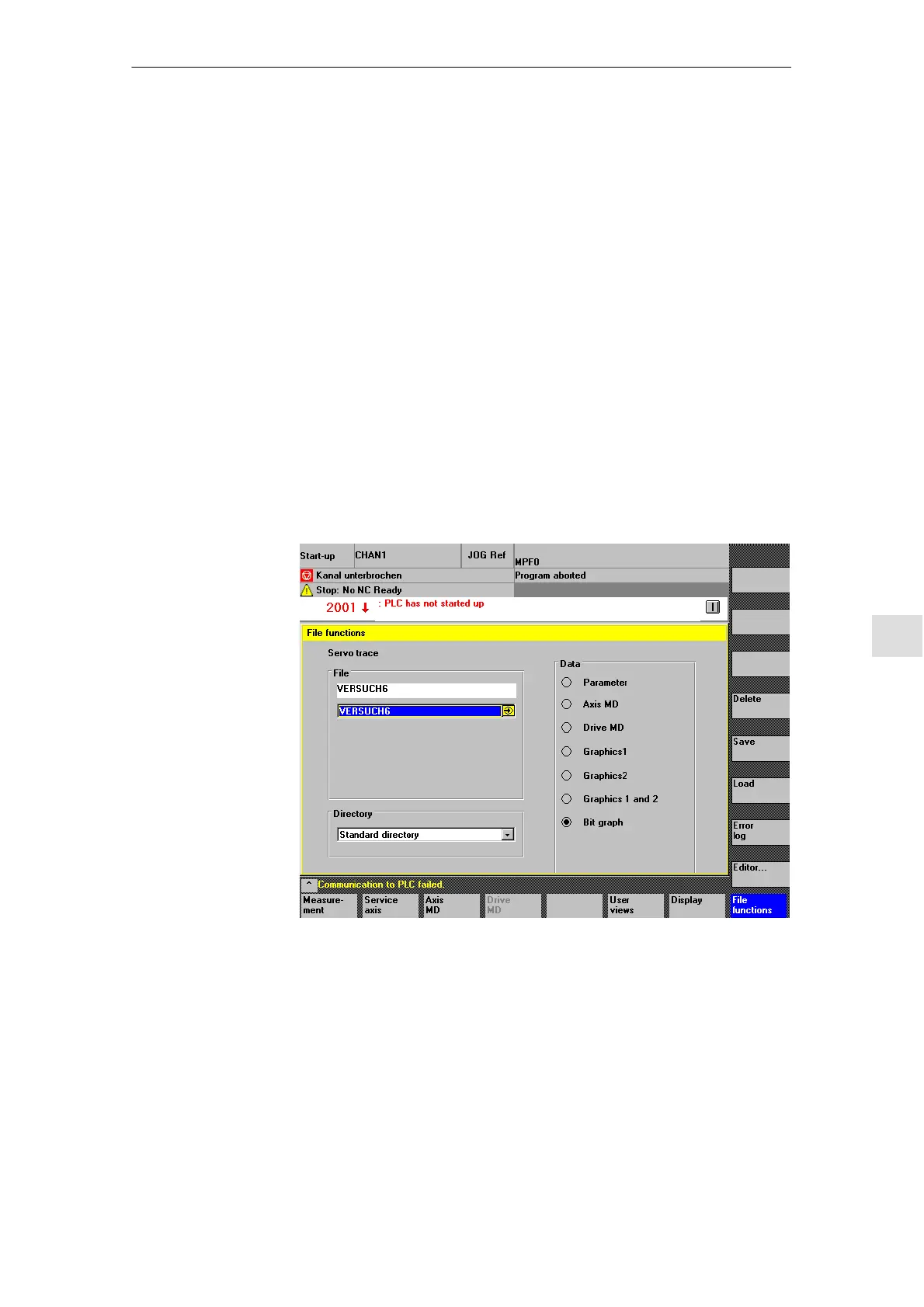

Fig. 10-19 Servo trace file function
You can select an existing file from the drop-down list in the “File” field, or enter
one in the text box below.
In the “Directory” field, you select the directory in which the file is to be saved.
This may be a directory you created yourself under “Services” or the main data
storage directory (list entry: Default directory).
Description
Naming files
Selecting the
directory
10 Drive O
timization
