10
03/2006
10.7 Trace function
10-212
© Siemens AG 2006 All Rights Reserved
SINUMERIK 840D/810D Start-Up Guide (IADC) – 03/2006 Edition
Table 10-2 SI signals with variable bit identifiers
SI signal German
Bit
Identifier English
NCK–SPL marker 0..31 NCK_SPL_MARKER_0
...
NCK_SPL_MARKER_31
32..63 NCK_SPL_MARKER_0
...
NCK_SPL_MARKER_31
PLC–SPL marker 0..31 PLC_SPL_MARKER_0
...
PLC_SPL_MARKER_31
32..63 PLC_SPL_MARKER_32
...
PLC_SPL_MARKER_63
When a trace log for signals from the above table is loaded, you can use:
Display/Graph/<Trace i>
A screen with the selected signal and its bits is displayed, with track assignment
if appropriate. For example:

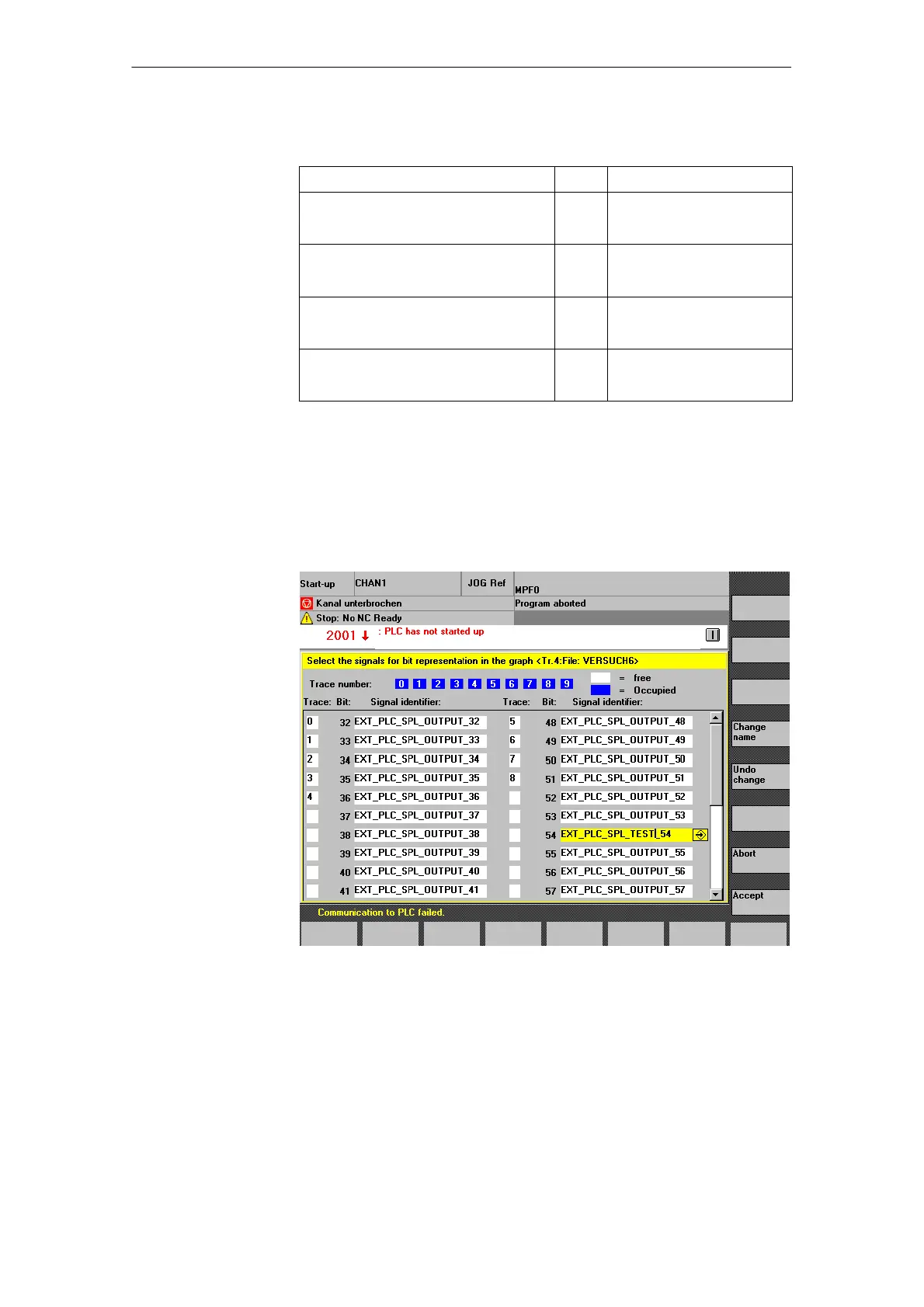

Fig. 10-18 Name changed for bit 54
Change names
Use the cursor keys to move to the signal identifiers to be changed and enter a
new identifier. Press the Input button to confirm.
Operation
Vertical soft keys
10 Drive O
p
timization
