11.8 Backing up the hard disk with Norton GhostR
11-249
© Siemens AG 2006 All Rights Reserved
SINUMERIK 840D/810D Start-Up Guide (IADC) – 03/2006 Edition
* PCU:
Click on “Y” to acknowledge the prompt and start the back-up.
* PCU:
A Norton Ghost message window appears. This contains:
The transfer progress
The paths used
Information about the amount of data to be transferred
PCU
If the back-up is canceled, a prompt appears:
Do you want to try to back-up again [Y,N] ?
Click on N to acknowledge and call up the main menu.
Click on “Y” to restart the back-up.
– < 4 > Back to previous menu
Return to main menu
11.8.4 Copy data to hard disk
S Version 6.x/7.x of the Ghost program is installed on the PCU and on the
PG/PC.
S The directory for storing the restore image has been created on the PG/PC.
S Any version of Windows is installed on the PG/PC.

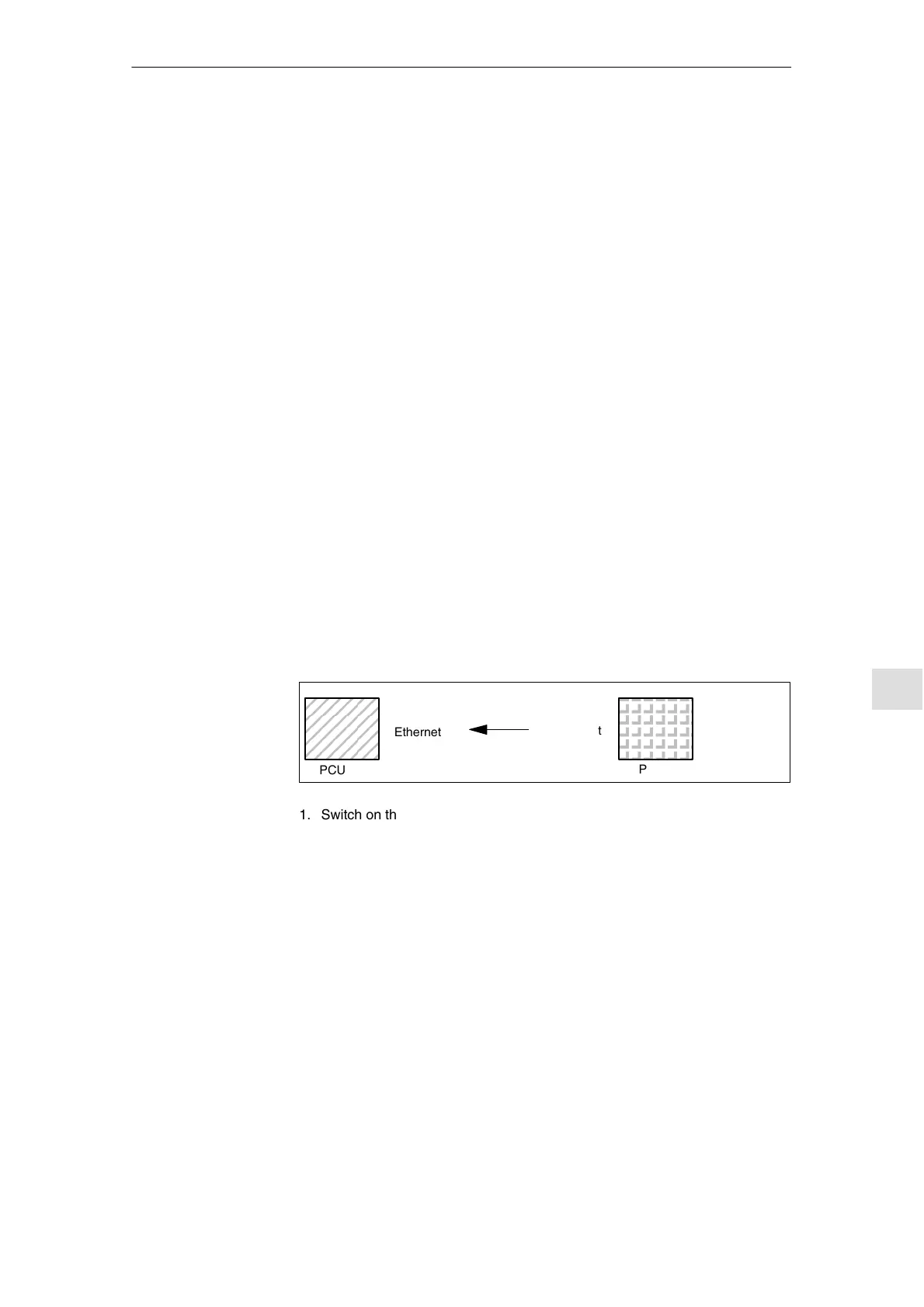

S PCU and PG/PC are connected with the Ethernet cable.
ÉÉÉÉ
ÉÉÉÉ
ÉÉÉÉ
PCU
Ethernet
ÀÀÀÀÀ
ÀÀÀÀÀ
ÀÀÀÀÀ
PG/PC
Ethernet
1. Switch on the PG and insert CD into drive.
2. Switch off and on control and select setup mode (press key 6 if DOS window
appears).
3. Select menu “7: Back-up/Restore”
4. Enter the password
5. Select menu “1 hard disk back-up/restore with ghost”
6. Set the parameters for the Norton Ghost program:
– <1> Configure GHOST Parameters:
see above
7. Restore contents of hard disk
– < 2 > Hard disk back-up to <path name>, Mode: LOCAL/NETWORK
