9.2 Axis dry run
9-173
© Siemens AG 2006 All Rights Reserved
SINUMERIK 840D/810D Start-Up Guide (IADC) – 03/2006 Edition

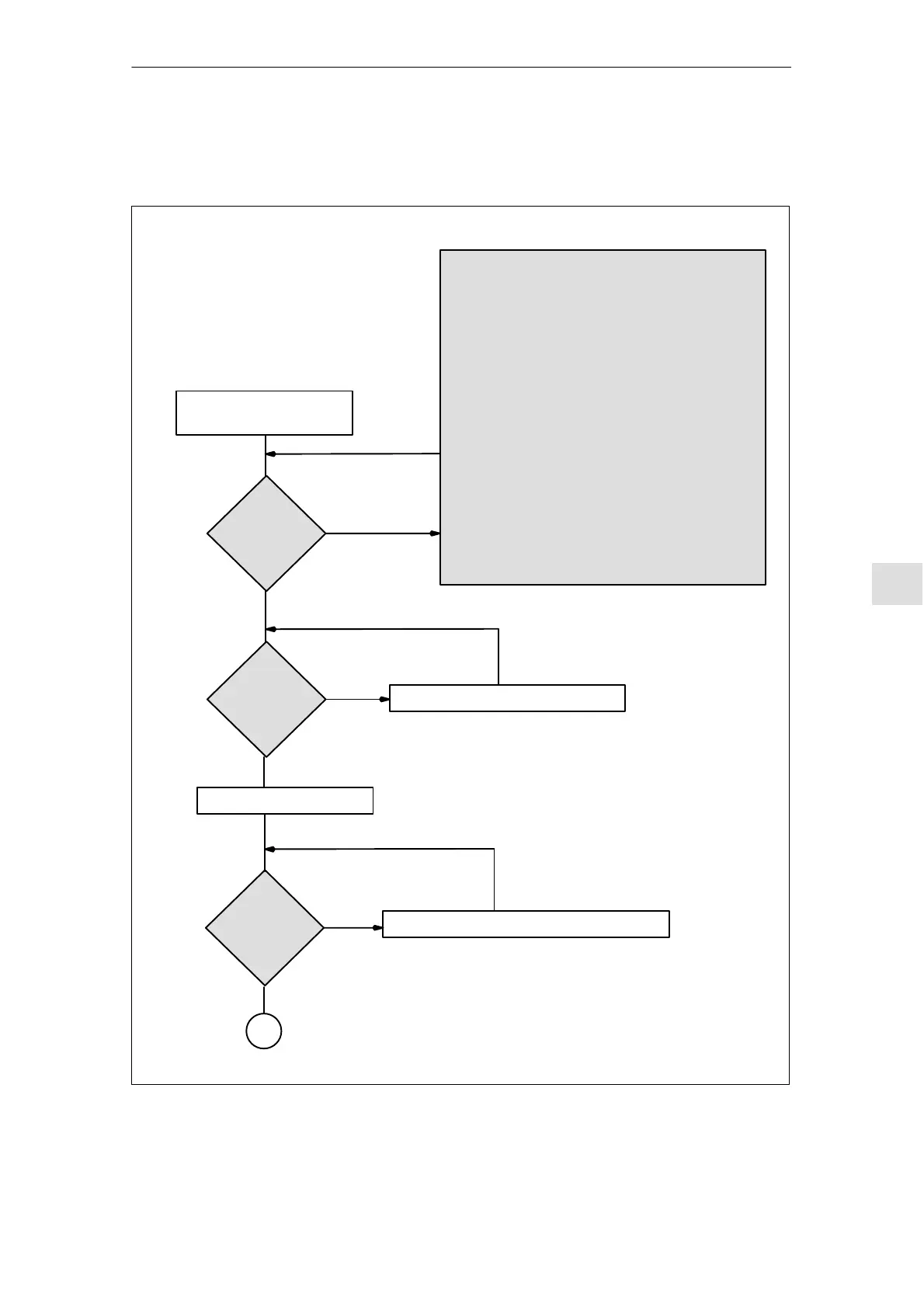

9.2 Axis dry run
Select JOG mode
and enable axis
Does the axis
move?
Check the enables at the drive
E/R module: Terminal 63 (pulse enable)
64 (drive enable)
48 (DC link start)
FDD module: 663 (pulse enable)
Check the interface signals (DB 31 – 61)
DBB0 Feed correction switch
DBX1.7 Correction effective
DBX1.5/1.6 Position measuring system 1/2
DBX1.4 Adjustment mode
DBX1.3 Axis disable
DBX2.2 Delete remaining travel
DBX2.1 Controller enable
DBX4.3 Feed stop/spindle stop
DBX5.0–5.5 JOG–INC
DBX4.6/4.7 Travel buttons
DBX20.1 HLGSS (drive)
DBX21.7 Pulse enable (611D)
Check the machine data
MD 32000–32050 Velocities
MD 36000–36620 Monitoring
MD 32110 Sign for actual value
Service display
Is traversing
direction
okay?
Check MD 32100: AX_MOTION_DIR
Specified path 10 mm
Is path
evaluation
okay?
Check MD 31000 – 31080 (encoder matching)
no
yes
yes
yes
1
no
no
