6.10 Linear motors (1FN1 and 1FN3 motors)
6-143
© Siemens AG 2006 All Rights Reserved
SINUMERIK 840D/810D Start-Up Guide (IADC) – 03/2006 Edition
6.10.4 Mechanical system
Installation dimension e
1
or e
2
can be checked, for example, by means of
gauge blocks and feeler gauges before the motor is installed.
Note
The applicable installation dimensions can be found in the following
documents:
S /PJLM/ Configuration guide for linear motor
S The data sheet of the appropriate 1FN1 or 1FN3 motor.
Please note with respect to installation dimension and air gap:
The electrical and system-related properties of the linear motor are guaranteed
solely as a function of the installation dimension and not the measurable air
gap. The air gap must be large enough to allow the motor to move freely.
Thermo-
insulating
bars
e
1
e
2
l
ÌÌÌÌÌÌÌÌÌÌÌÌÌÌÌ
ÌÌÌÌÌÌÌÌÌÌÌÌÌÌÌ
ÌÌÌÌÌÌÌÌÌÌÌÌÌÌÌ
ÌÌÌÌÌÌÌÌÌÌÌÌÌÌÌ
b

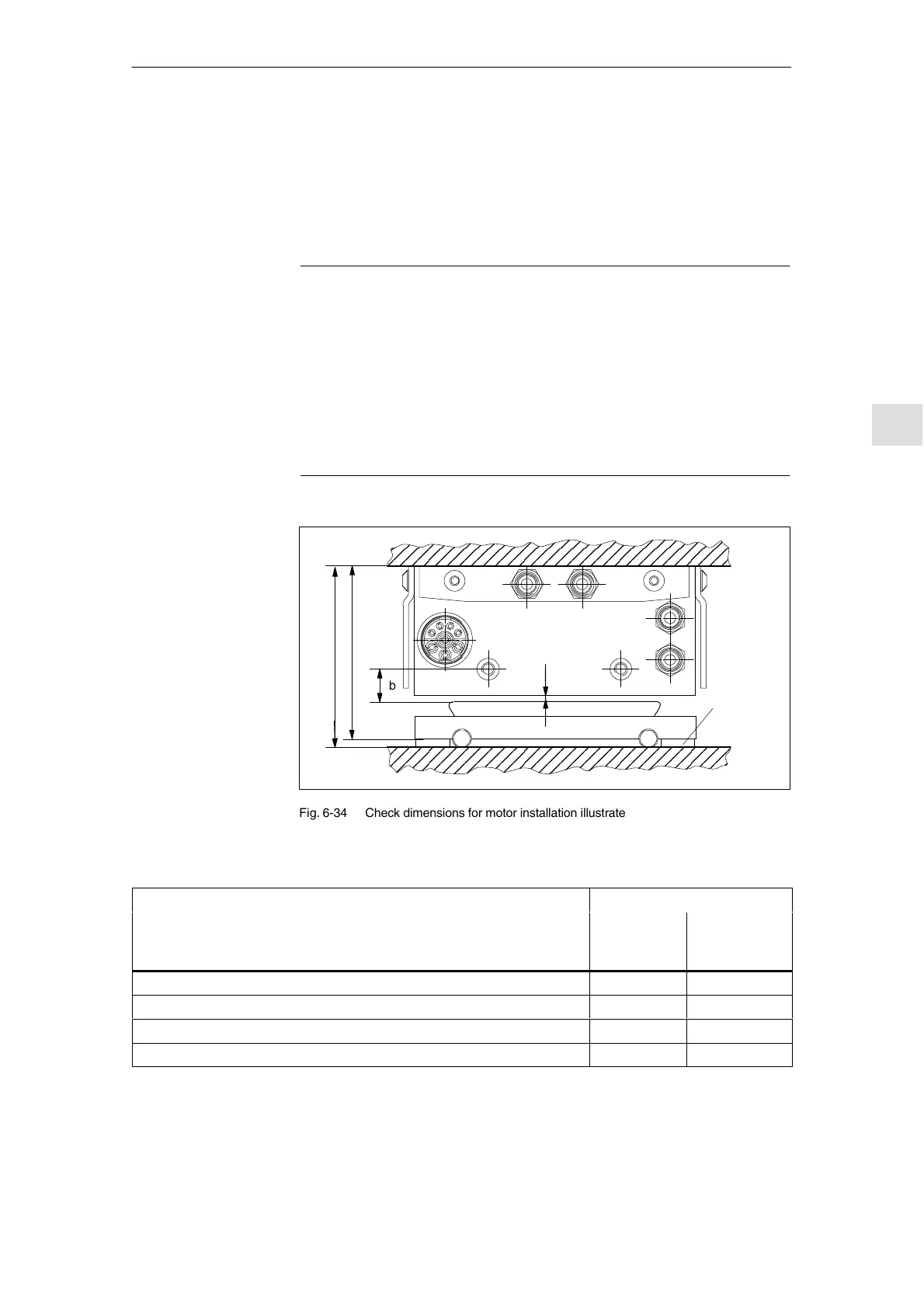

Fig. 6-34 Check dimensions for motor installation illustrated by a 1FN1 motor
Table 6-27 Check dimensions for installation dimension and air gap for a 1FN1 linear motor
Linear motors 1FN1 ...
Check dimensions
1FN1 07j 1FN1 12j
1FN1 18j
1FN1 24j
Installation dimension e
1
[mm] 80,7 $ 0,3 106,7 $ 0,3
Installation dimension e
2
[mm] (without thermo-insulating bars) 76,7 $ 0,3 101,7 $ 0,3
Measurable air gap l [mm] (not including installation dimension tolerance) 1.1
+0.3
/
–0.45
1.1
+0.3
/
–0.45
Distance b [mm] (not including installation dimension tolerance) 13 $ 1 13 $ 1
For installation dimensions of 1FN3 linear motors, see dimension drawings in
appendix of 1FN Planning Guide, mounting height h
M
or h
M1
.
Check the
installation
dimensions
and air gap
