10.7 Trace function
10-198
© Siemens AG 2006 All Rights Reserved
SINUMERIK 840D/810D Start-Up Guide (IADC) – 03/2006 Edition
10.7.1 Main screen
The main screen for the trace function is accessed using the
Drives/Servo \ Servo trace soft keys.

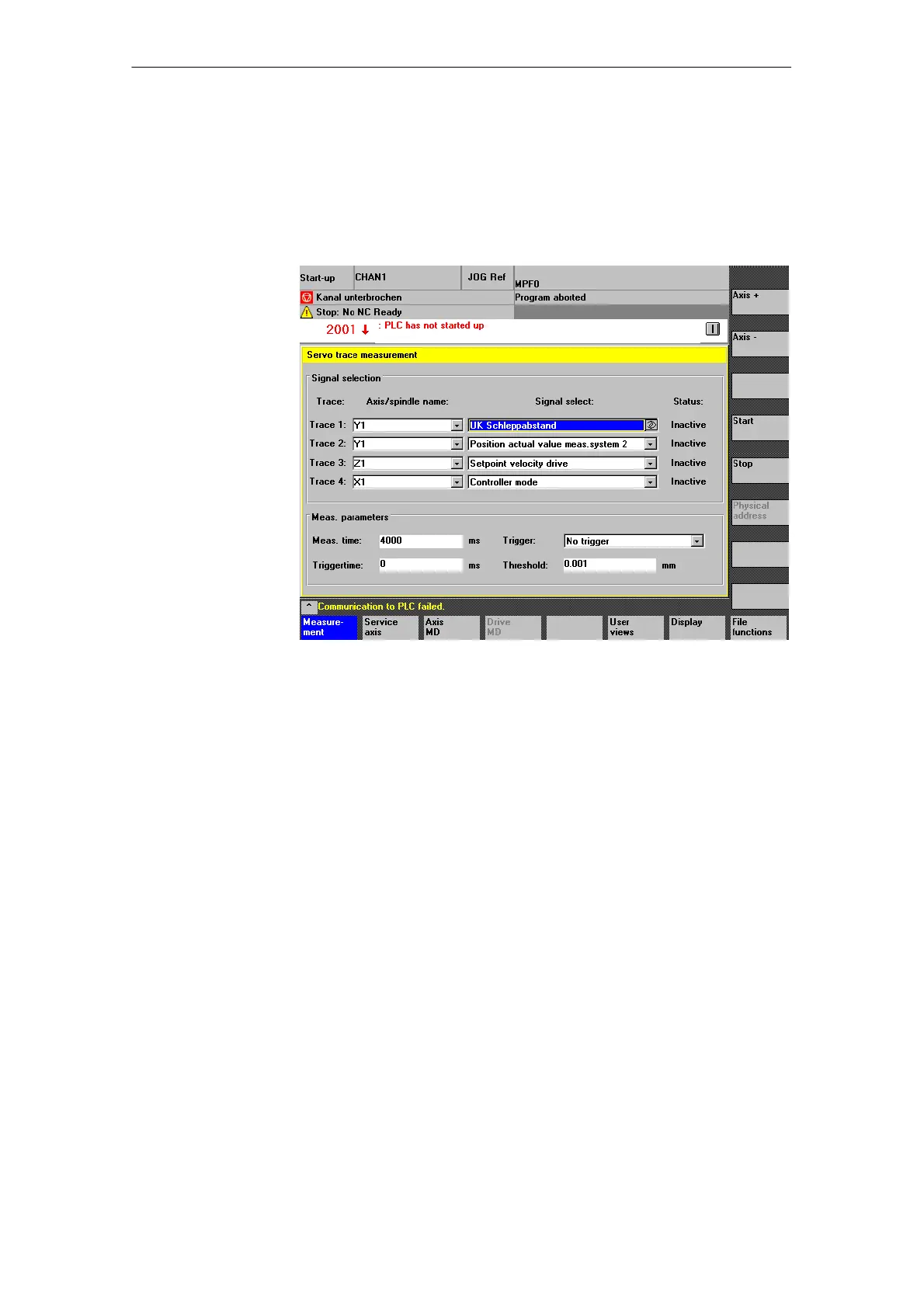

Fig. 10-9 Basic servo trace screen
10.7.2 Programming and activating measurements
The main screen is used to select
S The axis/spindle to be measured
S The signal to be measured
S The measuring duration
S Trigger time
S Trigger type
S Trigger threshold
The cursor must be positioned on the “Axis/spindle name” list box for the trace
concerned. The selection is then made by using the Axis+ and Axis– soft keys
or by activating the desired item in the drop-down list box.
Main screen
Servo trace
Programming
on the main screen
Signal selection
Input box
Axis/spindle name
10 Drive O
p
timization
