10.7 Trace function
10-197
© Siemens AG 2006 All Rights Reserved
SINUMERIK 840D/810D Start-Up Guide (IADC) – 03/2006 Edition
NC
Measurements:
– Parameter
settings
– Activating
Measuring
buffer
Display buffer
Display functions, see 10.7.3, 10.8.4
File functions
see 10.8.5
Files
Back-
up
.INI
Display Printer
See 10.7.2
See 10.8.6

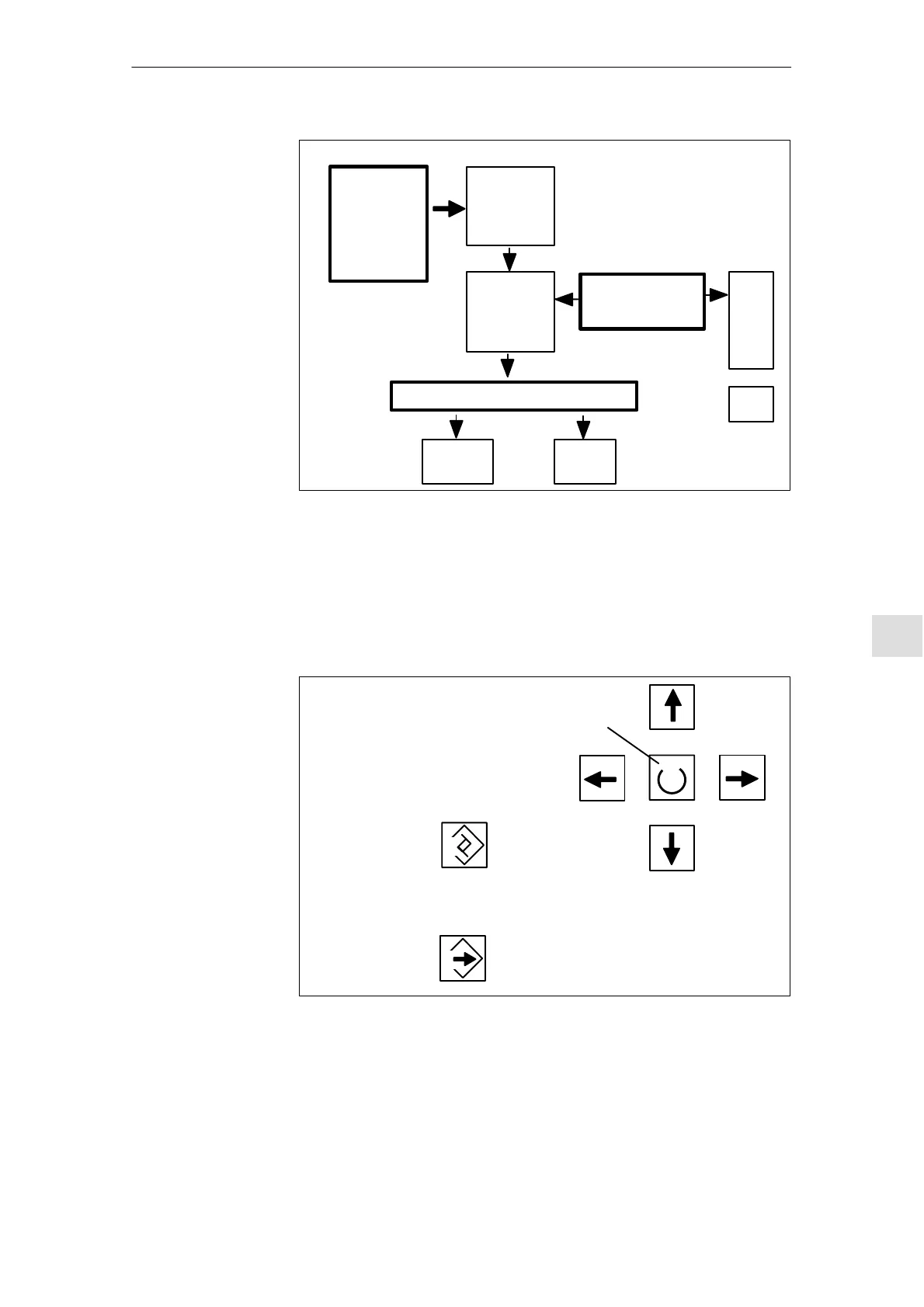

Fig. 10-7 Overview of the function groups
The measuring signals are selected and the measuring parameters are set
using soft keys and drop-down lists. Operation is either via mouse or via
keyboard.
Select button
The cursor is controlled
using the arrow keys on the
front of the operating panel
or with the mouse.
To access the lists, place
the cursor on a list box and
press the insert key.
The list drops
down.
You can scroll down
by using the arrow
keys.
Activate the input
key to select
the desired item.
Fig. 10-8 Cursor operation
Operation
