11.10 Installing a replacement hard disk
The next section describes how to restore the data back-ups of an entire
PCU 50/70 hard disk so that both user and system data remains available and
consistent if servicing is required.
Using the “Norton Ghost
R
” software, the entire content of a PCU 50/70 hard
disk is stored as a disk image with HMI Advanced. This disk image file can be
stored on various data carriers for later restoration of the hard disk.
Norton Ghost
R
is supplied from the factory on every PCU 50/70 module and the
spare hard disk.
For further information please see web site “www.ghost.com” or the previous
chapter.
Archive the hard disk back-up (image), including the “Norton Ghost” program,
on a CD.
Requirement:
S Ghost program is installed on the PG.
S A new replacement hard disk is installed.
S Connect the PCU to the PC/PG using a parallel cable
S One of the operating systems Windows 3.x, Windows 95 and a CD drive is
available on the PC/PG.

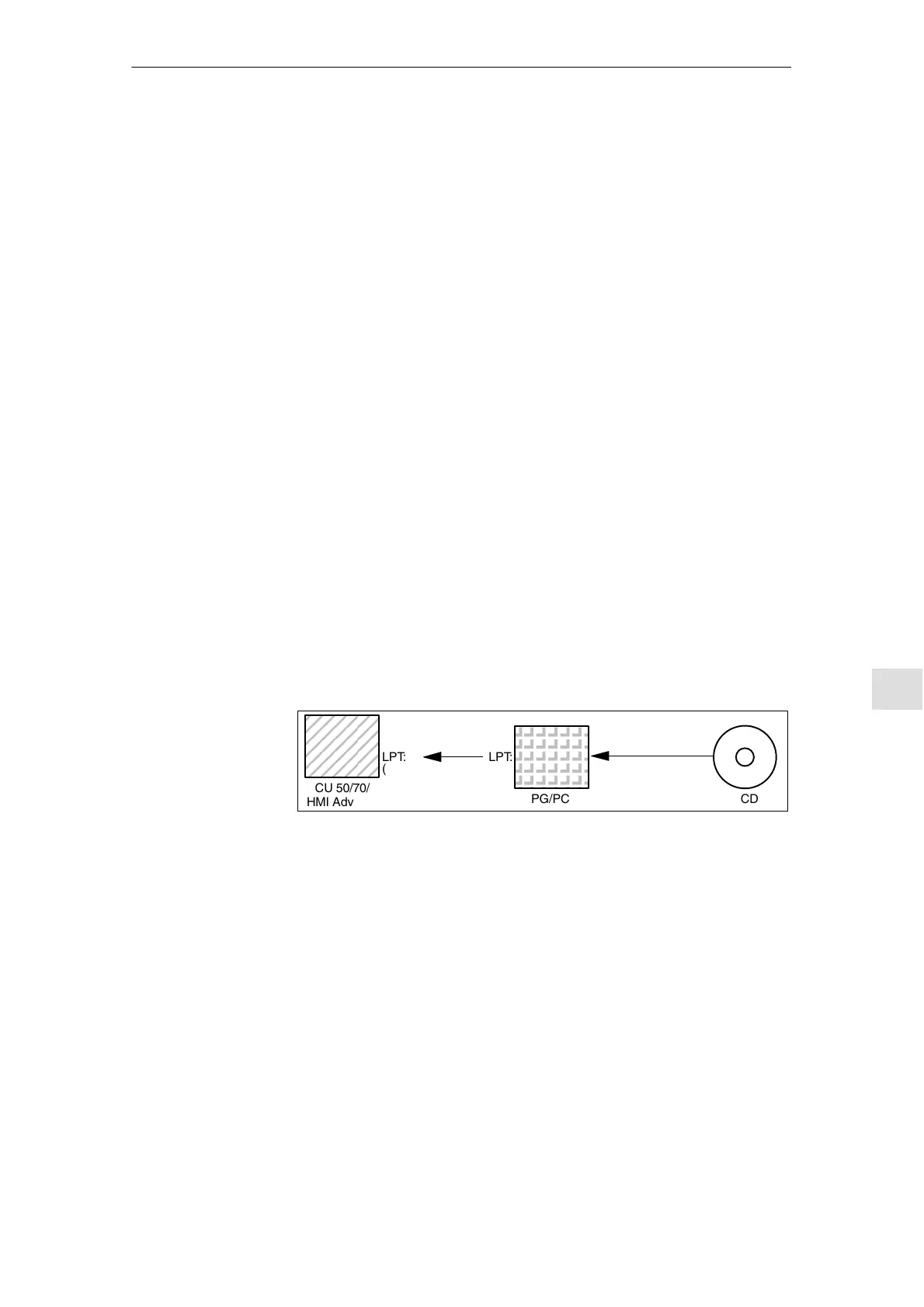

LPT:
PG/PC
LPT:
CD
(X8)
PCU 50/70/
HMI Advanced
1. Fit the new spare hard disk in the PCU 50/70
(see enclosed instructions)
– Place hard disk onto hinges
– Plug in the connecting cable from the hard disk to PCU
– Mount hard disk using the 4 knurled screws
– Release the transport retainer: turn to “operating” until it engages.
PCU 50/70
Norton Ghost
R
Recommendation
Restore back-up
copy
