10.7.6 Print graph
Printer settingsThe printer selection screen is called up by pressing the
HMI\Printer selection soft keys (Fig. 10-20).
Use the toggle key to select whether the displayed graphics are to be sent di-
rectly to the printer by activating the Print graphs soft key, or output it in a bit-
map file instead.

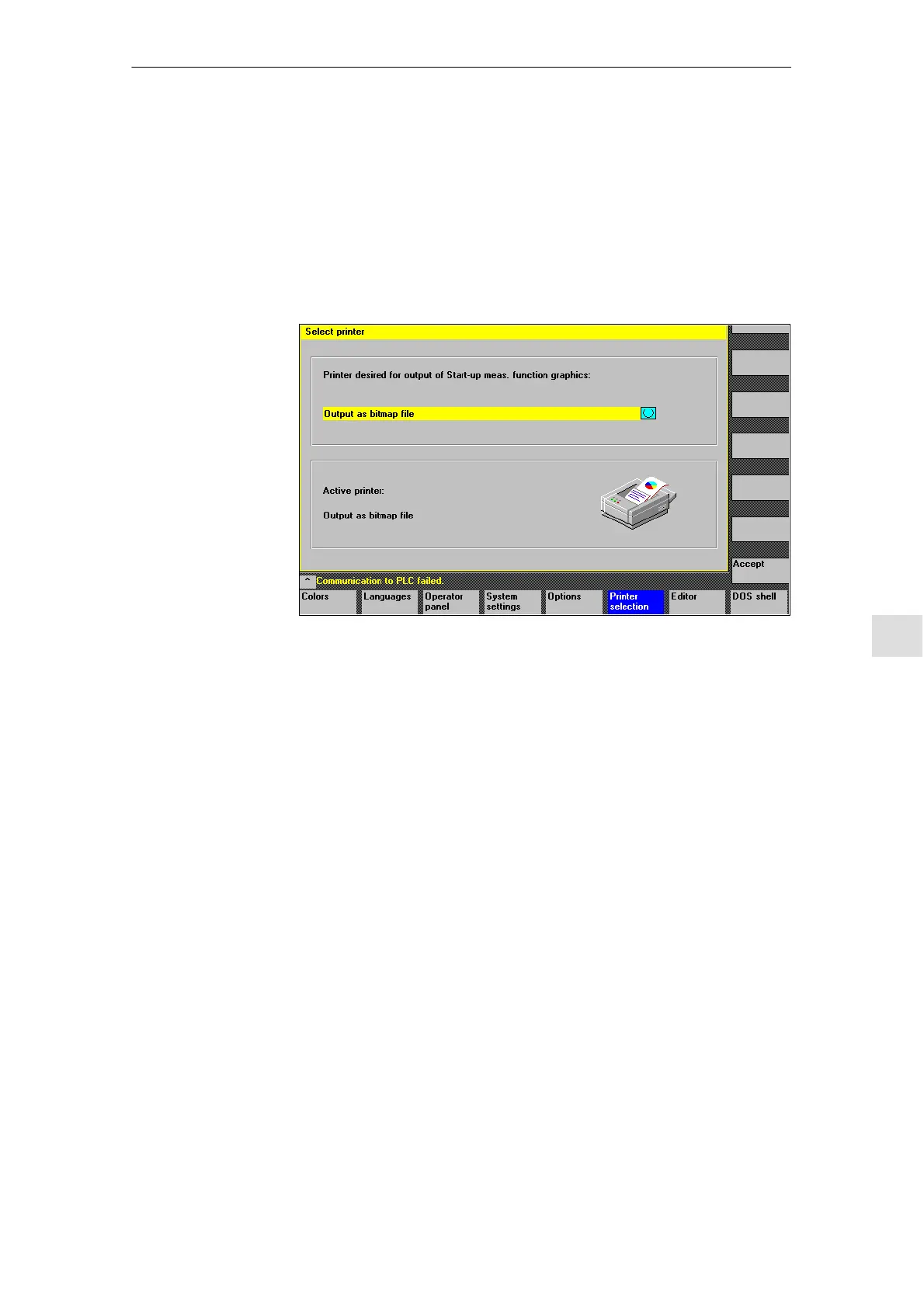

Fig. 10-20 Basic screen for printer selection
The printer must be set up under MS WINDOWS.
You can set “Print” in the printing options.
Upon activation of the Print graphs soft key in the “Display” screen, the dis-
played graphics are printed on the active printer.
If you want to save the graph to a bitmap file (*.bmp), proceed as follows:
Set “Output as bitmap file” in the selection field for the printer setting.
When you press the Print graph soft key on the “Display” screen, the screen for
entering a file name appears (Fig. 10-21). Enter a new name in the drop-down
list or select an existing file name for overwriting.
Output directly to
printer
Output as
bitmap file
