6.10 Linear motors (1FN1 and 1FN3 motors)
6-149
© Siemens AG 2006 All Rights Reserved
SINUMERIK 840D/810D Start-Up Guide (IADC) – 03/2006 Edition
This connection variant has proved to extremely immune to interference and
should always be employed.
If an incremental measuring system is used, the drive is synchronized coarsely
using the rotor position identification routine.
SIMODRIVE
611 D
–X411
U2 V2 W2 PE
Drive A
Linear scale
6FX2001-2CG00-xxxx (increment)
6FX2002-2CH00-xxxx (absolute)
Primary section
Temperature sensor coupling lead (dongle)
6FX2002-1AA14-xxxx
Power cable
Encoder cable

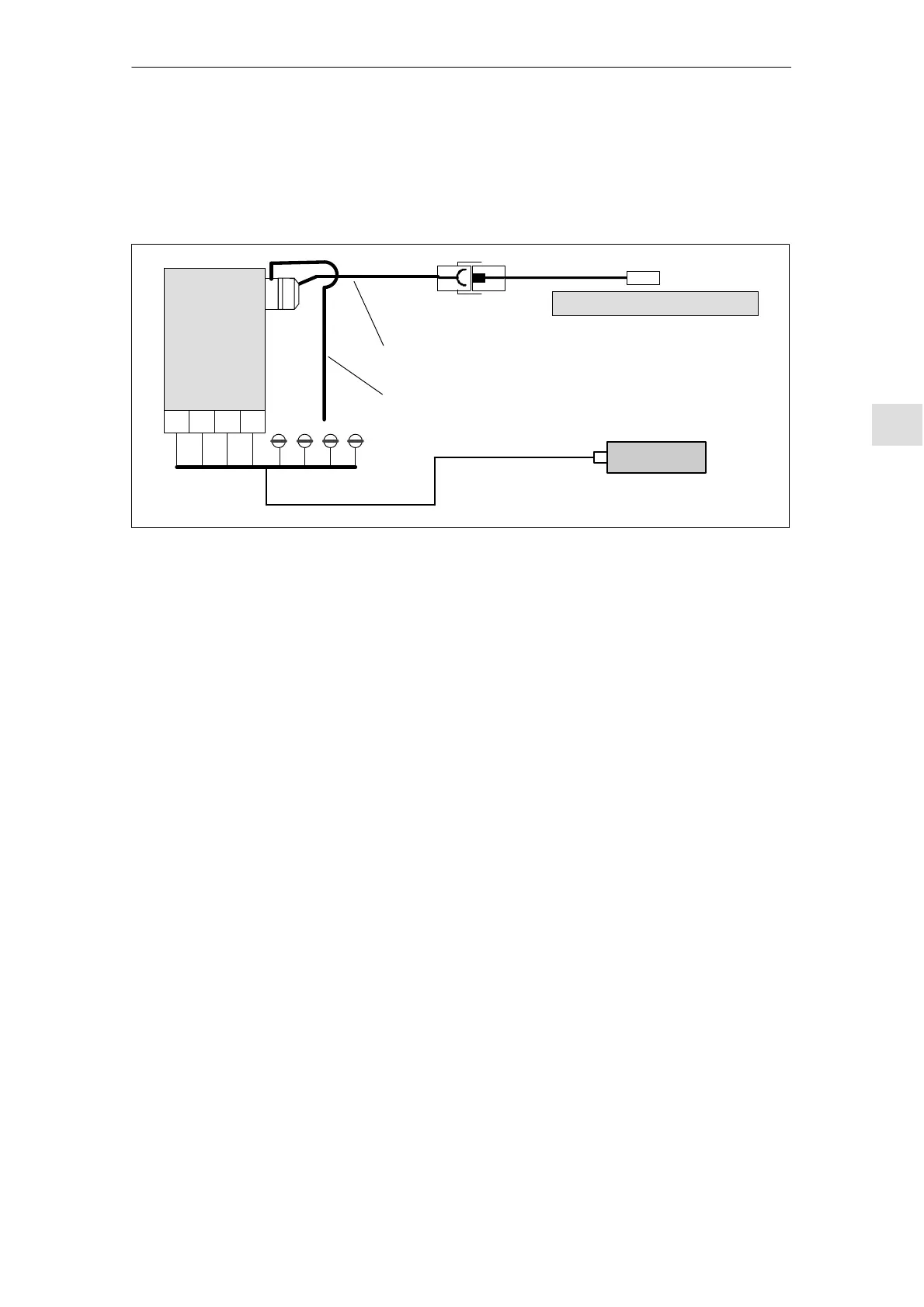

Fig. 6-39 Temperature sensor coupling lead (recommended standard connection)
Temperature
sensor coupling
lead (= dongle)
