Siemens SINUMERIK 840D Simodrive 611 digital User Manual

6 Pro
g
rammin
g
the control
6
03/2006
6.10 Linear motors (1FN1 and 1FN3 motors)
6-151
© Siemens AG 2006 All Rights Reserved
SINUMERIK 840D/810D Start-Up Guide (IADC) – 03/2006 Edition
The temperature sensors can be evaluated, for example, as follows:
S Temperature sensor
– Motor 1: Evaluation via the drive
– Motor 2: not connected
(short-circuited and connected to PE)
S Temperature switch or PTC
– Motor 1 and 2: External evaluation
SIMODRIVE
611 D
–X411
U2 V2 W2 PE
Drive A
White Black Yellow Red
Brown + black
1FN
Temperature sensor
coupling lead
Pin 13 Pin 25
Linear scale
Power cable
Orange + red
White Black Yellow Red
1FN
Power cable
External
evaluation
Motor 1
Motor 2

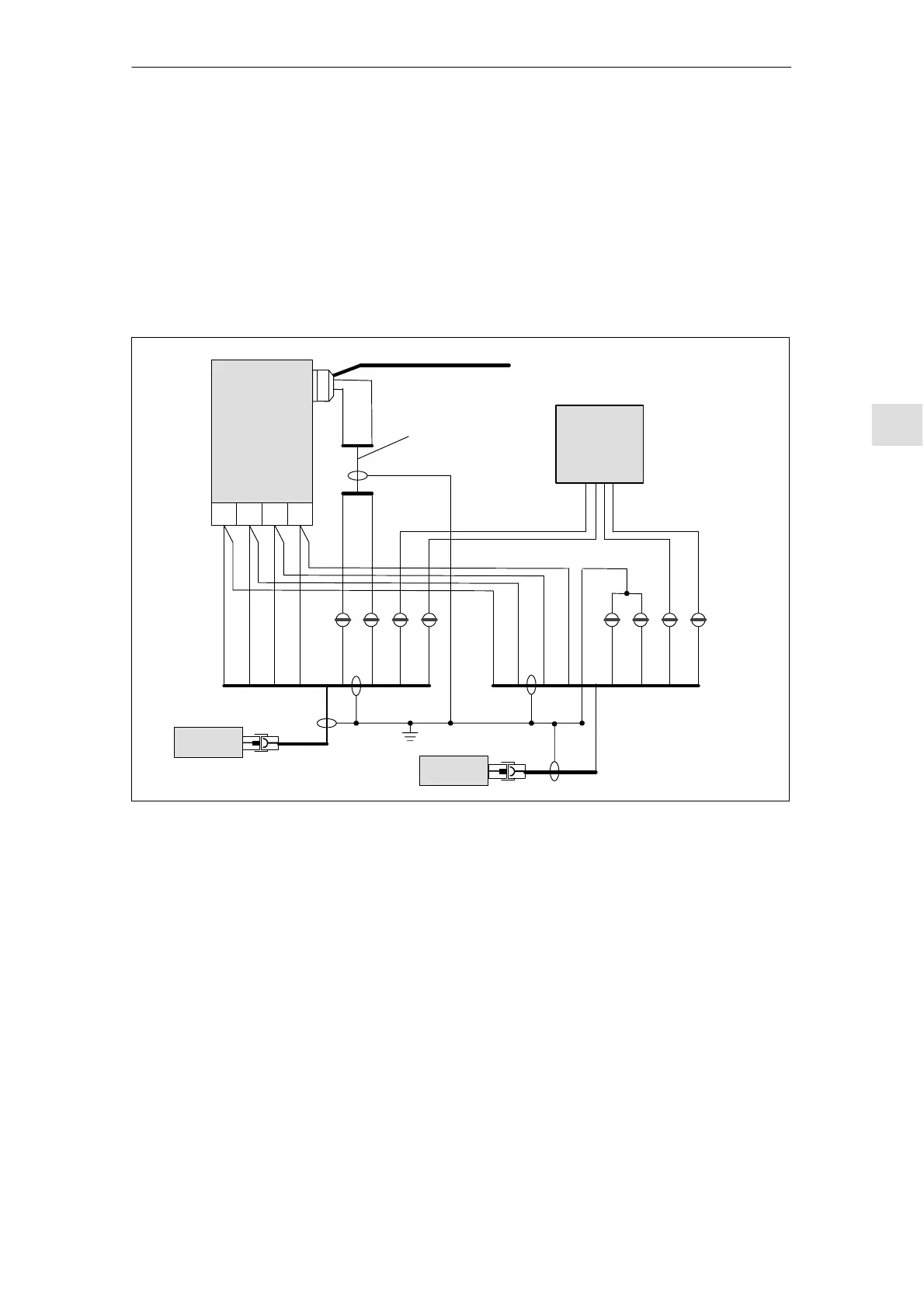

Fig. 6-42 Wiring of parallel-connected linear motors
Temperature sen-
sor and electrical
wiring (see sub-
section 6.10.5)
