10.7 Trace function
10-206
© Siemens AG 2006 All Rights Reserved
SINUMERIK 840D/810D Start-Up Guide (IADC) – 03/2006 Edition

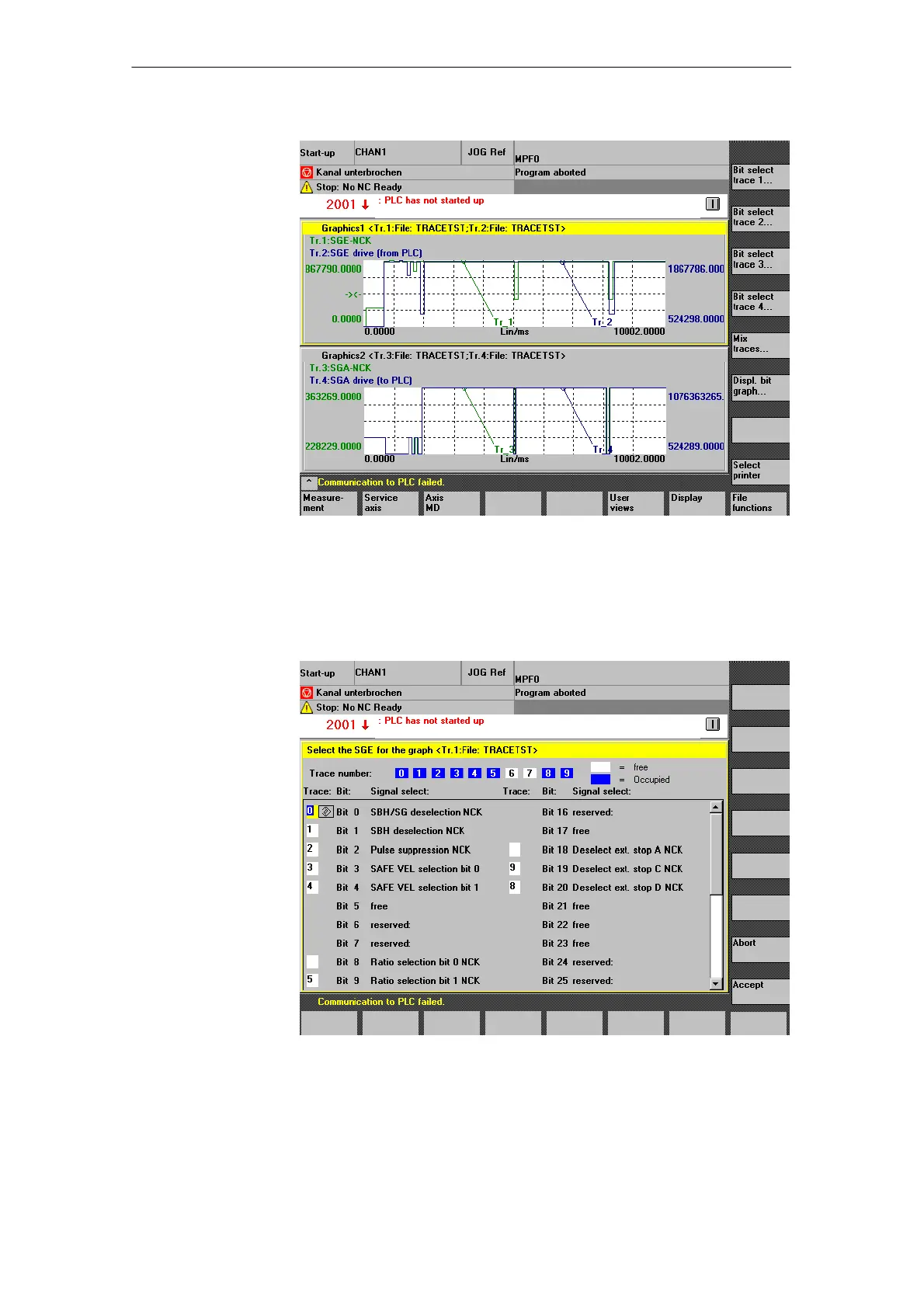

Fig. 10-14 Selected bit-coded SI signals
When you press this soft key, a screen appears in which you can assign the
individual signal bits to display tracks.
Fig. 10-15 Assigning signals to tracks (example of trace 1)
Bit selection
Trace i
10 Drive O
timization
To Next Page
