6.1 Machine and setting data
6-50
© Siemens AG 2006 All Rights Reserved
SINUMERIK 840D/810D Start-Up Guide (IADC) – 03/2006 Edition
Table 6-1 Overview of machine and setting data, continued
Area Designation
from 30000 to 38999 Axis-specific machine data
from 39000 to 39999 Reserved
from 41000 to 41999 General setting data
from 42000 to 42999 Channel-specific data
from 43000 to 43999 Axis-specific setting data
from 51000 to 61999 General machine data for compile cycles
from 62000 to 62999 Channel-specific machine data for compile cycles
from 63000 to 63999 Axis-specific machine data for compile cycles
Menus are provided for entering the machine data. How to select displays:
Press the “MENÜ SELECT” button: The menu bar with the following areas ap-
pears on screen: Machine, Parameters, Program, Services, Diagnostics and
Start-Up.
Press the “Start-up” soft key and the “Machine data” soft key.
A bit editor is implemented for setting certain machine data bits. If the input cur-
sor in the MD list is on a machine data item in HEX format, the editor can be
called up by pressing the Toggle key.
Note
The bit editor for HEX machine data is only available in conjunction with the
HMI.

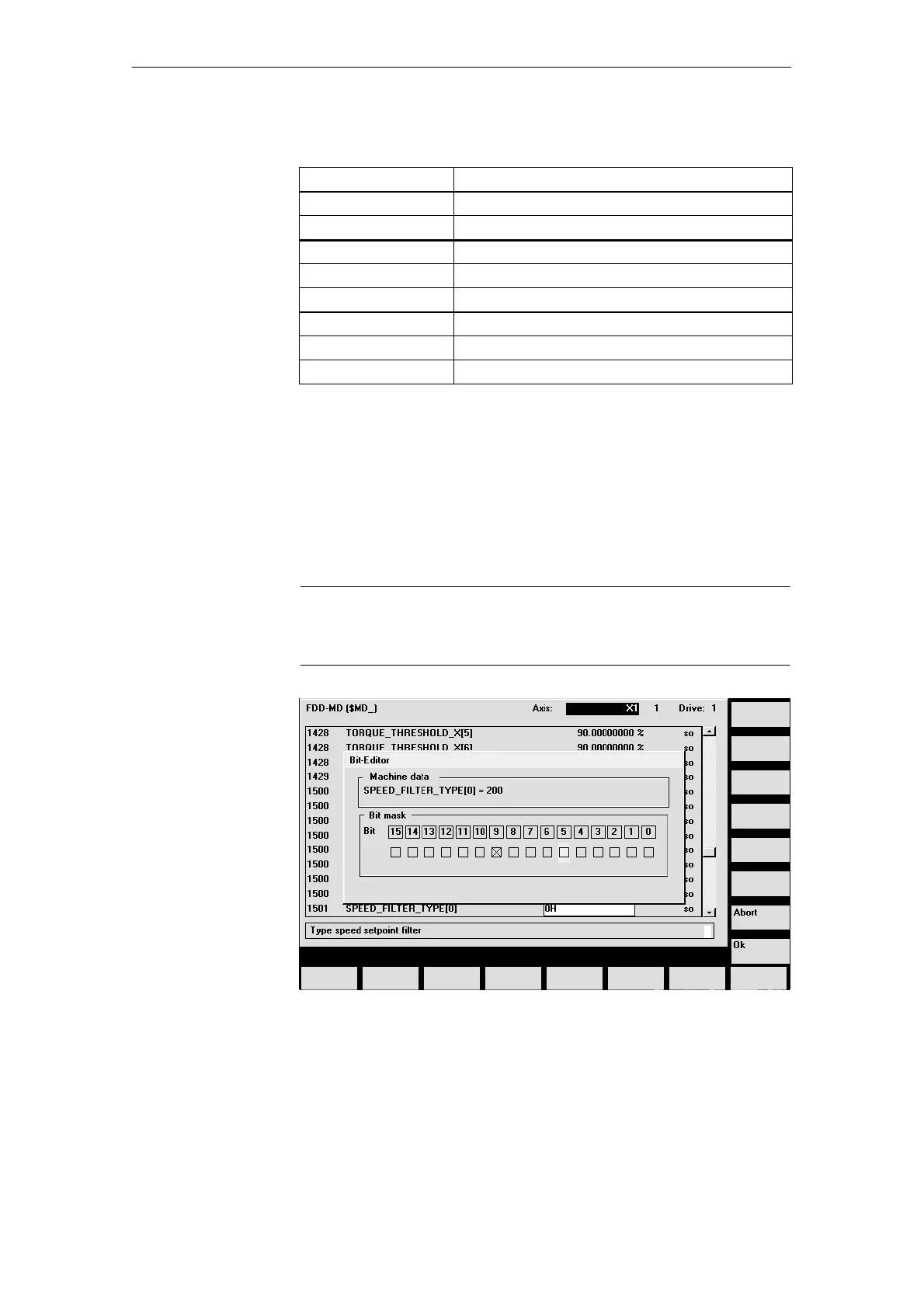

Fig. 6-1 Input screen in the bit editor for HEX machine data
Entering machine
data
Bit editor for HEX
machine data
