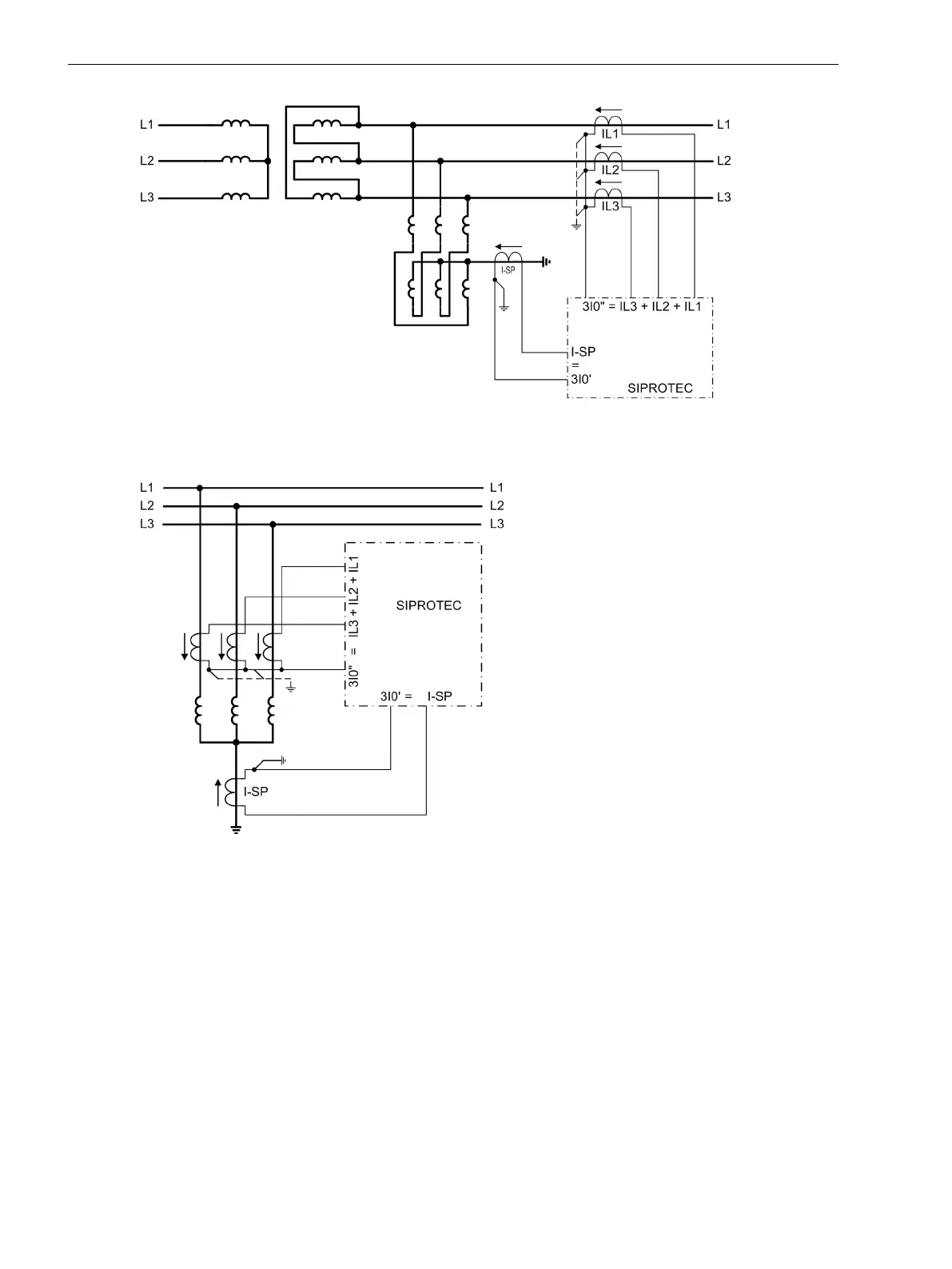

Figure 2-54 Restricted earth fault protection on a non-earthed transformer winding with neutral reactor
(starpoint former) within the protected zone
[erddiff-querdrossel-020926-rei, 1, en_GB]
Figure 2-55 Restricted earth fault protection on an earthed shunt reactor with CTs in the reactor leads
Functions
2.3 Restricted Earth Fault Protection
126 SIPROTEC 4, 7UT6x, Manual
C53000-G1176-C230-5, Edition 09.2016
