Siemens SIPROTEC 4 7UT6 Series - Panel Flush Mounting or Cubicle Mounting (Housing Size; )

Panel flush mounting or cubicle mounting (housing size
1
/
1
)
[tdschalttafeleinbau-7ut633-635-030402-rei, 1, en_GB]

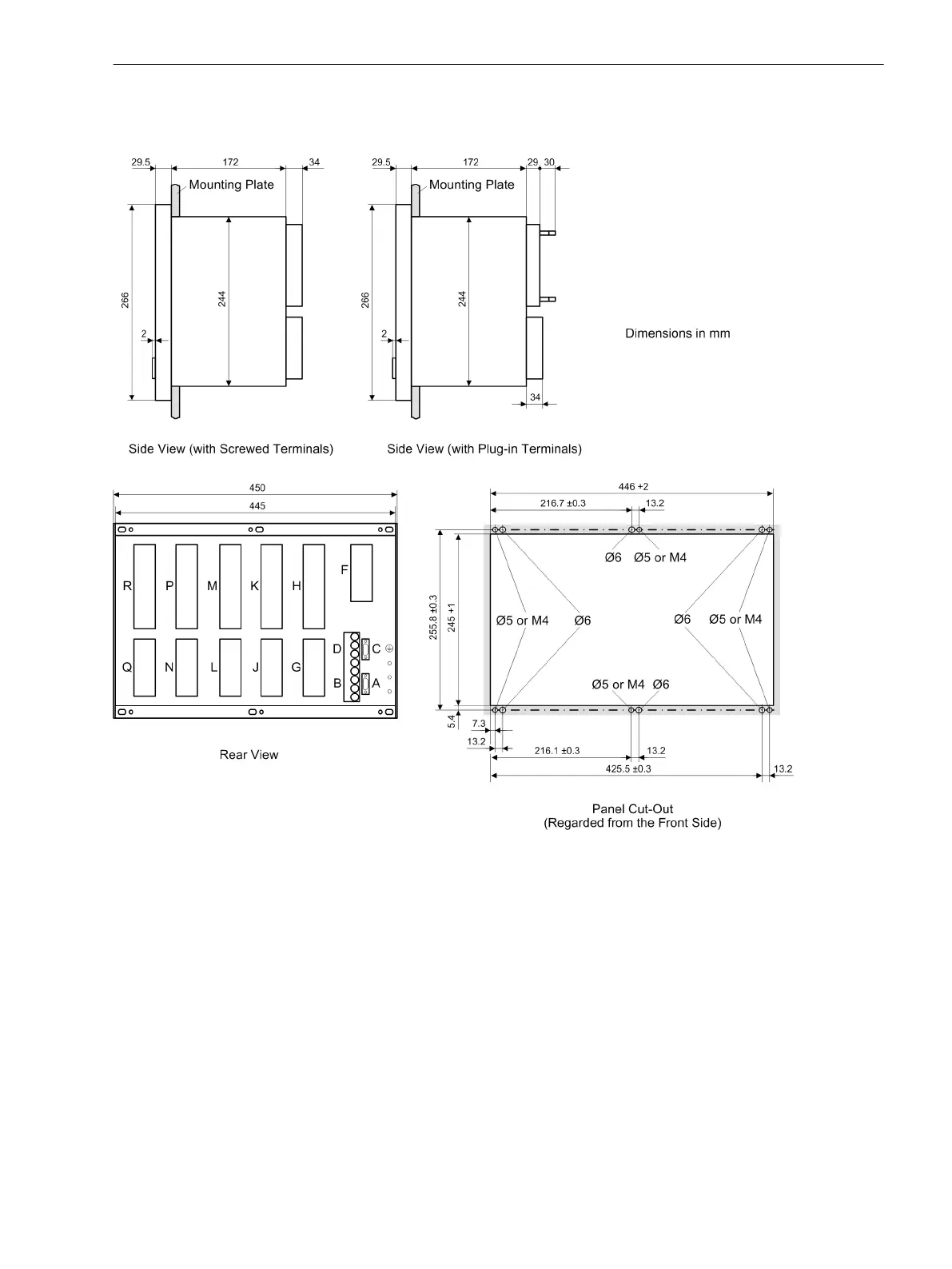

Figure 4-25
Dimensional drawing of a 7UT6 (maximum functional scope) for panel flush and cubicle
mounting (housing size
1
/
1
)
4.23.6
Technical Data
4.23 Dimensions
