Panel flush mounting or cubicle mounting (housing size
1
/
3
)
[tdschalttafeleinbau-7ut612-021026-rei, 1, en_GB]

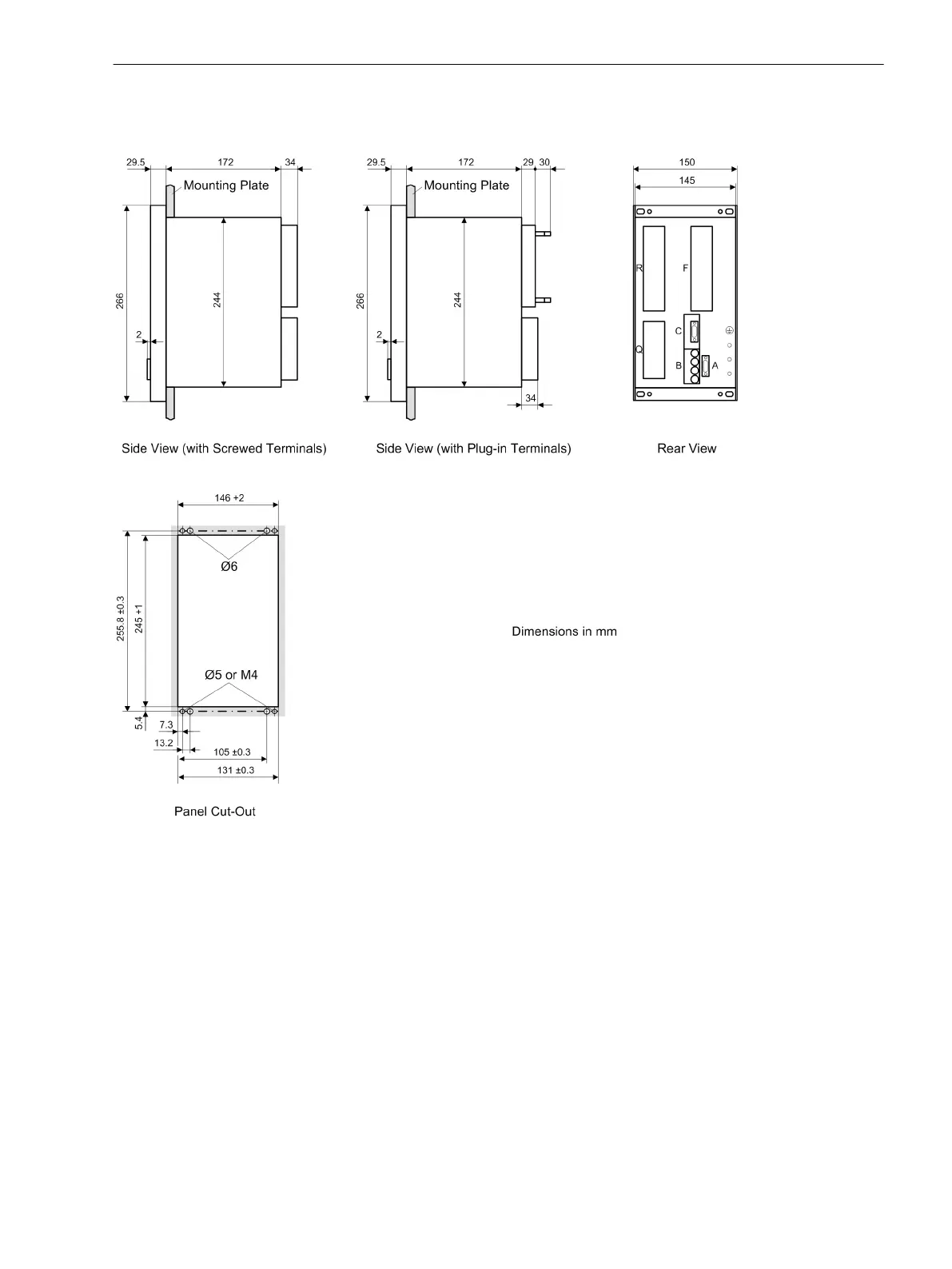

Figure 4-23
Dimensional drawing of a 7UT612 for panel flush and cubicle mounting (housing size
1
/
3
)
4.23.4
Technical Data
4.23 Dimensions
SIPROTEC 4, 7UT6x, Manual 467
C53000-G1176-C230-5, Edition 09.2016
