Default Display
For devices with a four-line display, you can scroll among the basic displays shown below. The numerical
values shown are examples. The device will display only those values that make sense for the current applica-
tion. For instance, voltages will only be shown if the device is provided with voltage inputs and these inputs
have been configured; with single-phase transformers there will be no phase L2.
[tdgrundbild4zeil-030402-rei, 1, en_GB]

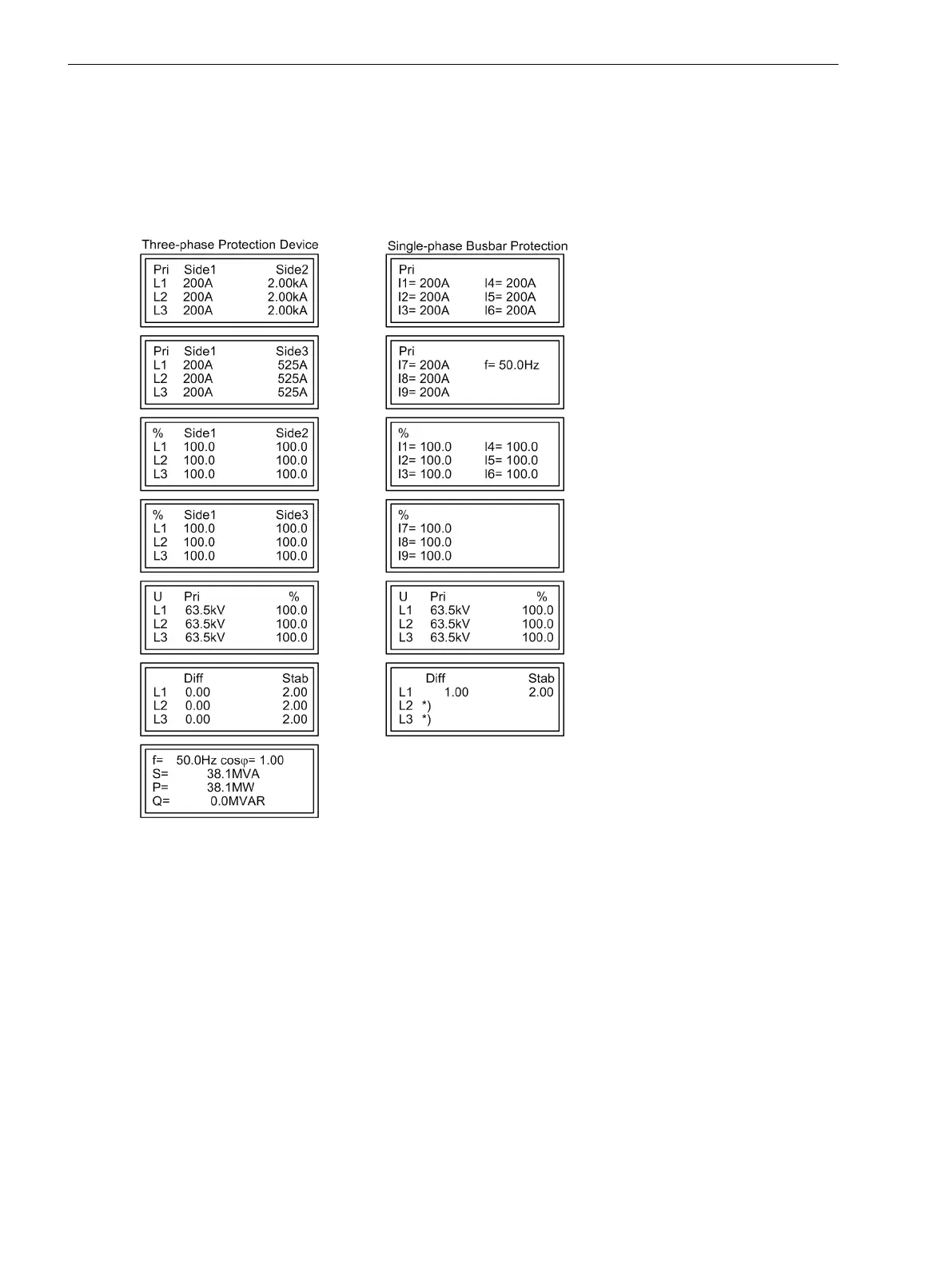

Figure E-1
Default display for 4-line display
*) depending on the phase connected (address 396 PHASE SELECTION)
E.5
Default Settings and Protocol-dependent Functions
E.5 Default Display
534 SIPROTEC 4, 7UT6x, Manual
C53000-G1176-C230-5, Edition 09.2016
