For devices with a graphic display, the basic displays shown below may appear: The device will display only
those values that make sense for the current application. For instance, voltages and powers will only be
shown if the device is provided with voltage inputs and these inputs have been configured; with single-phase
transformers there will be no phase L2.

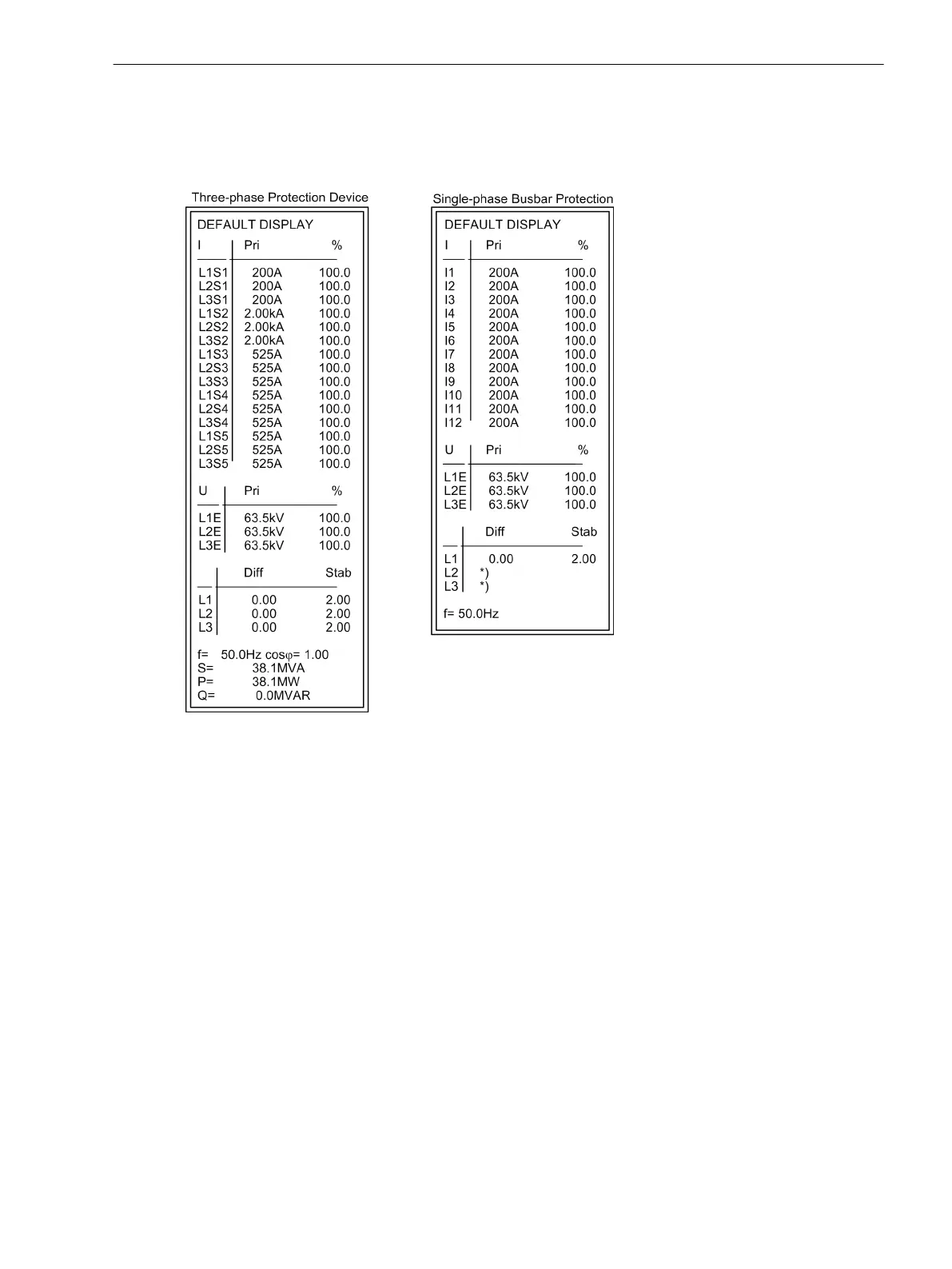

[tdgrundbildgraf-030402-rei, 1, en_GB]
Figure E-2
Default display for graphic displays
*) depending on the phase connected (address 396 PHASE SELECTION)
Default Settings and Protocol-dependent Functions
E.5 Default Display
SIPROTEC 4, 7UT6x, Manual 535
C53000-G1176-C230-5, Edition 09.2016
