RTD box
[tdtemperaturmessgeraet-7xv5662-021026-rei, 1, en_GB]

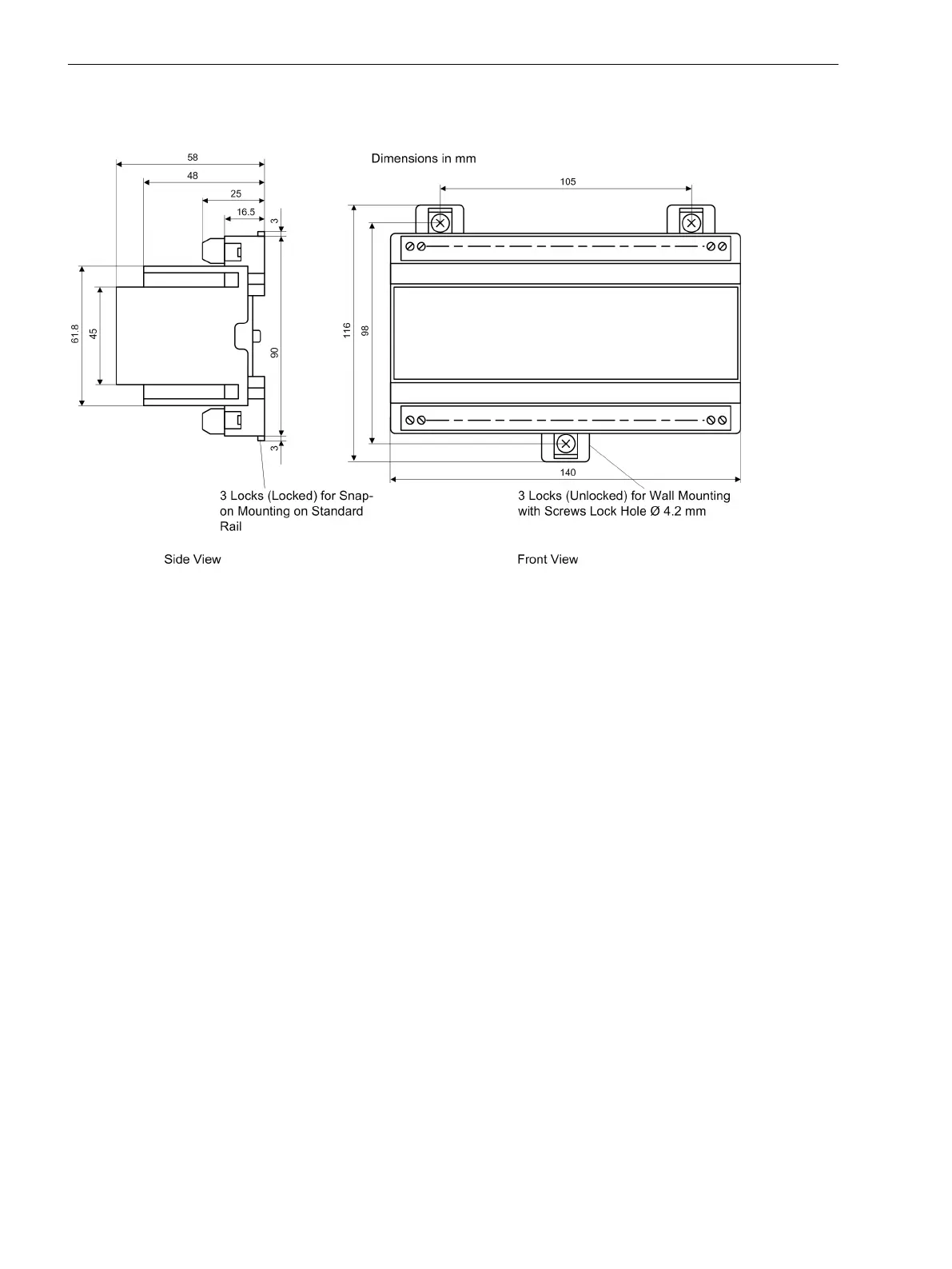

Figure 4-26
Dimensions of the Remote Temperature Detection Unit 7XV5662–*AD10–0000
4.23.7
Technical Data
4.23 Dimensions
470
SIPROTEC 4, 7UT6x, Manual
C53000-G1176-C230-5, Edition 09.2016
469
471
