[schalttafeleinbau-gehaeuse-4zeilig-display-halb-st-040403, 1, en_GB]

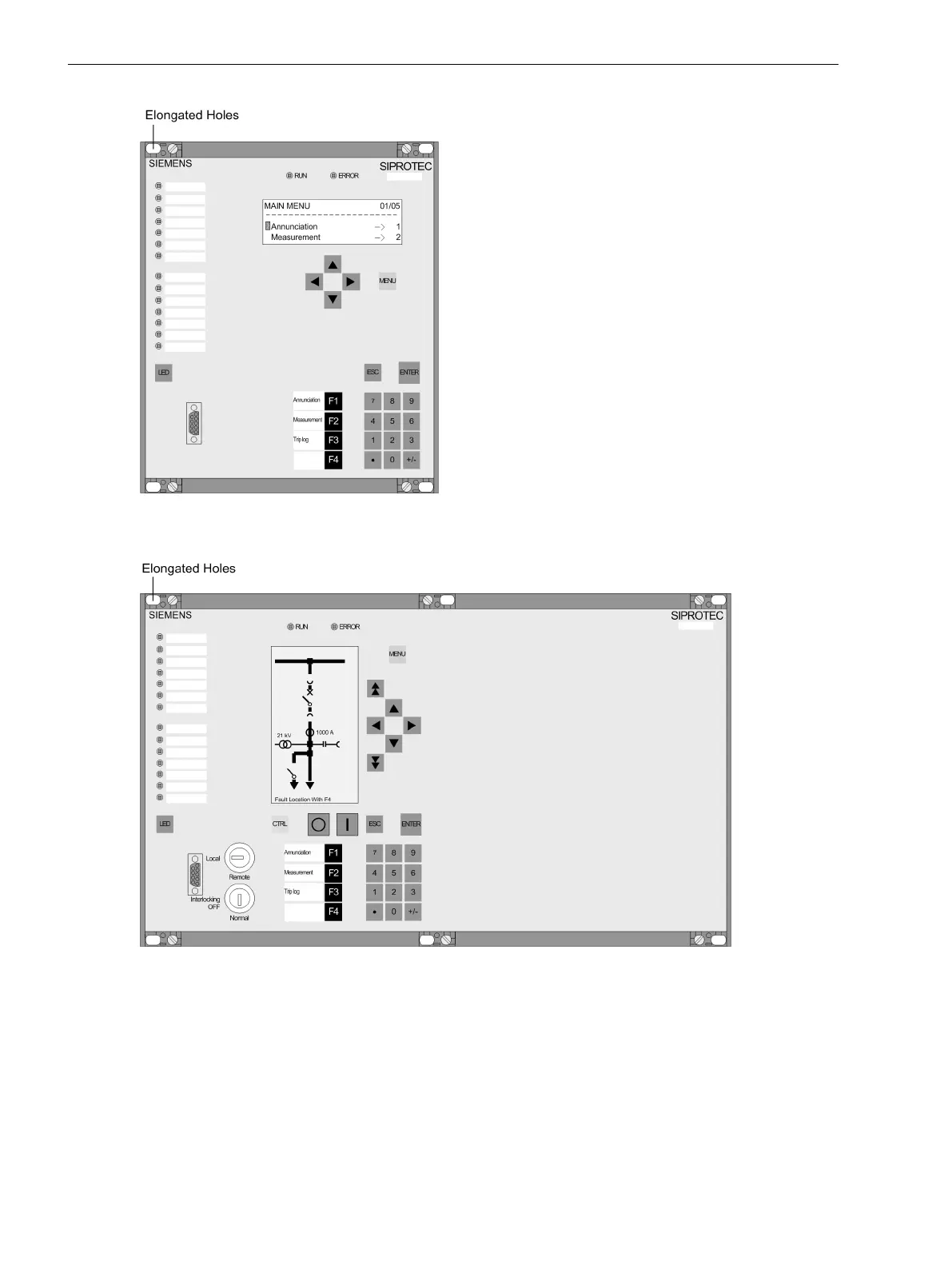

Figure 3-21
Panel flush mounting of a 7UT613 (housing size
1
/
2
) – example
[schalttafeleinbau-gehaeuse-grafikdisplay-ein-st-040403, 1, en_GB]
Figure 3-22
Panel flush mounting of a 7UT633 or 7UT635 (housing size
1
/
1
) – example
Rack and Cubicle Mounting
Depending on the version, the device housing can be
1
/
3
,
1
/
2
or
1
/
1
. For housing size
1
/
3
(7UT612) and
1
/
2
(7UT613)7UT613), there are 4 caps and 4 mounting holes, for size
1
/
1
(7UT633 oder 7UT635), there are 6 caps
and 6 mounting holes.
2 mounting brackets are required for incorporating a device in a rack or cubicle. The order numbers can be
found in the Appendix under A Ordering Information and Accessories.
3.1.3.2
Mounting and Commissioning
3.1 Mounting and Connections
344 SIPROTEC 4, 7UT6x, Manual
C53000-G1176-C230-5, Edition 09.2016
