Siemens SIPROTEC 4 7UT6 Series User Manual

Current Transformer Connection Examples
[7ut613-3phtrafo-stromwsternpkt030324-rei, 1, en_GB]

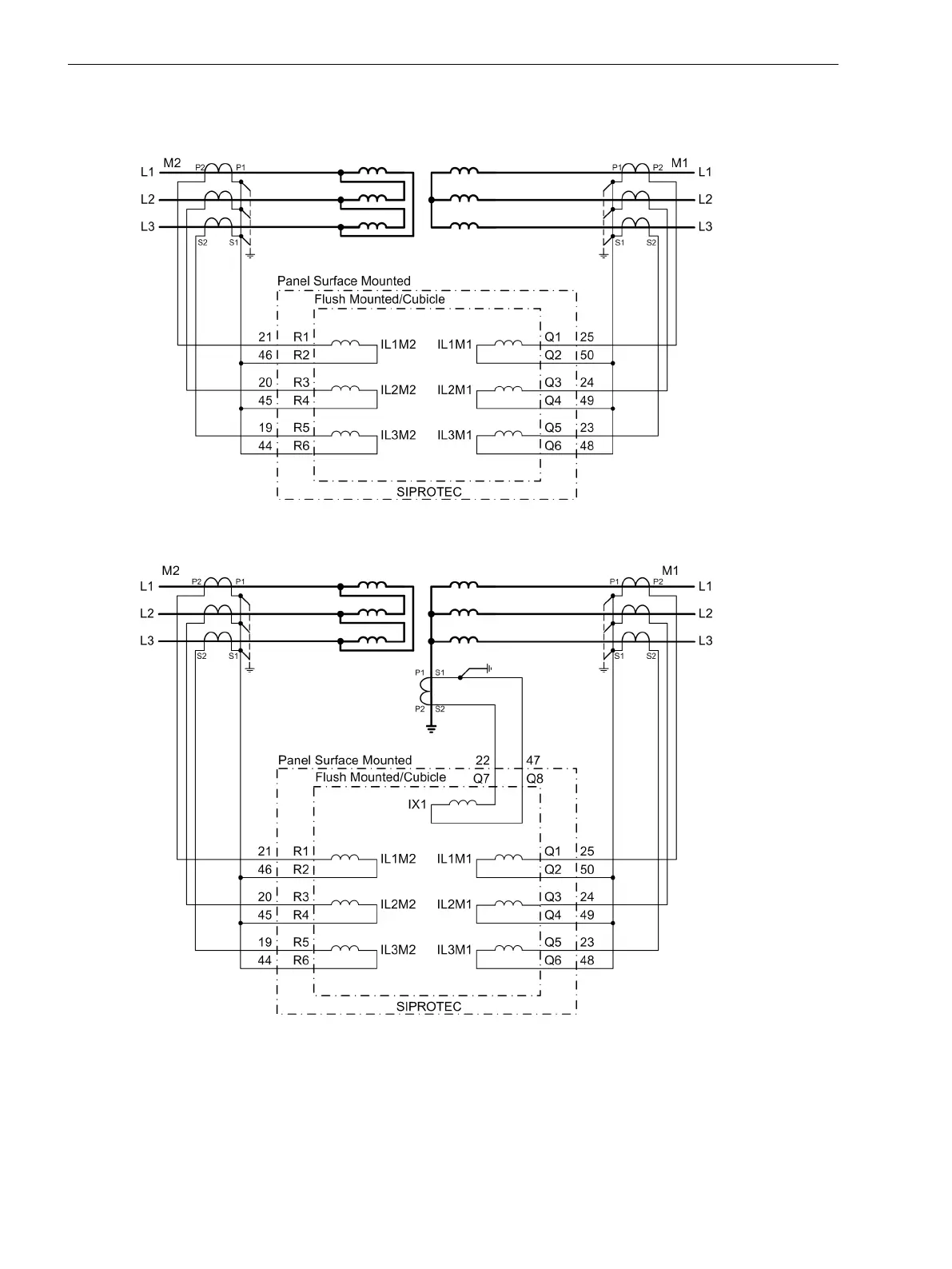

Figure C-1 Connection example 7UT613 for a three-phase power transformer without earthed starpoint
[7ut613-3phtrafo-sternpktgeerdetstromw-030324-rei, 1, en_GB]
Figure C-2
Connection example 7UT613 for a three-phase power transformer with earthed starpoint and
current transformer between starpoint and earthing point
C.1
Connection Examples
C.1 Current Transformer Connection Examples
506 SIPROTEC 4, 7UT6x, Manual
C53000-G1176-C230-5, Edition 09.2016
