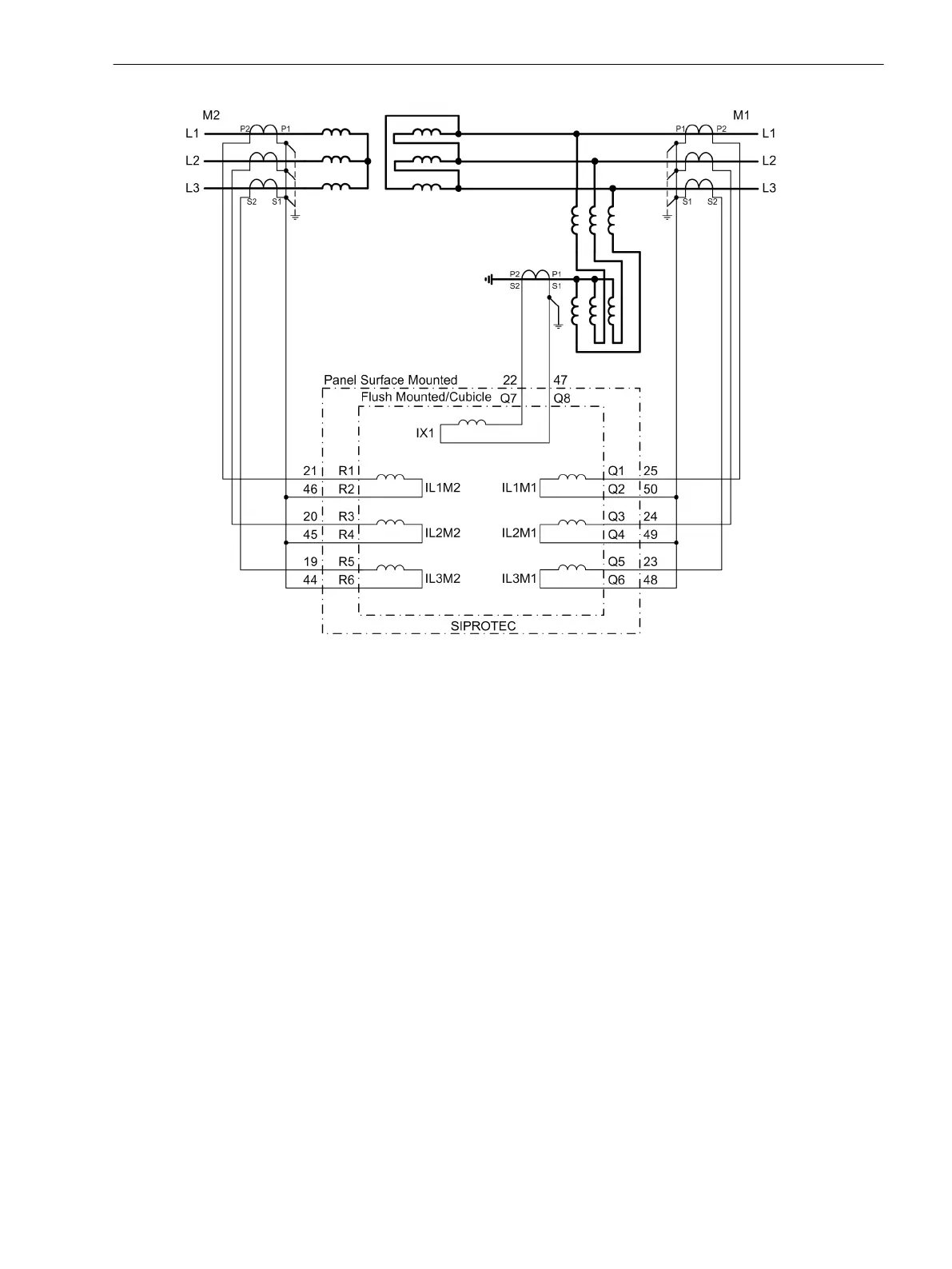

Figure C-3
Connection example 7UT613 for a three-phase power transformer with starpoint former and
current transformer between starpoint and earthing point
Connection Examples
C.1 Current Transformer Connection Examples
SIPROTEC 4, 7UT6x, Manual 507
C53000-G1176-C230-5, Edition 09.2016
