Siemens SIPROTEC 4 7UT6 Series - Panel Flush and Cubicle Mounting

Panel Flush and Cubicle Mounting
7UT612*-*D/E
[ut612-de-021020-rei, 1, en_GB]
Figure B-1

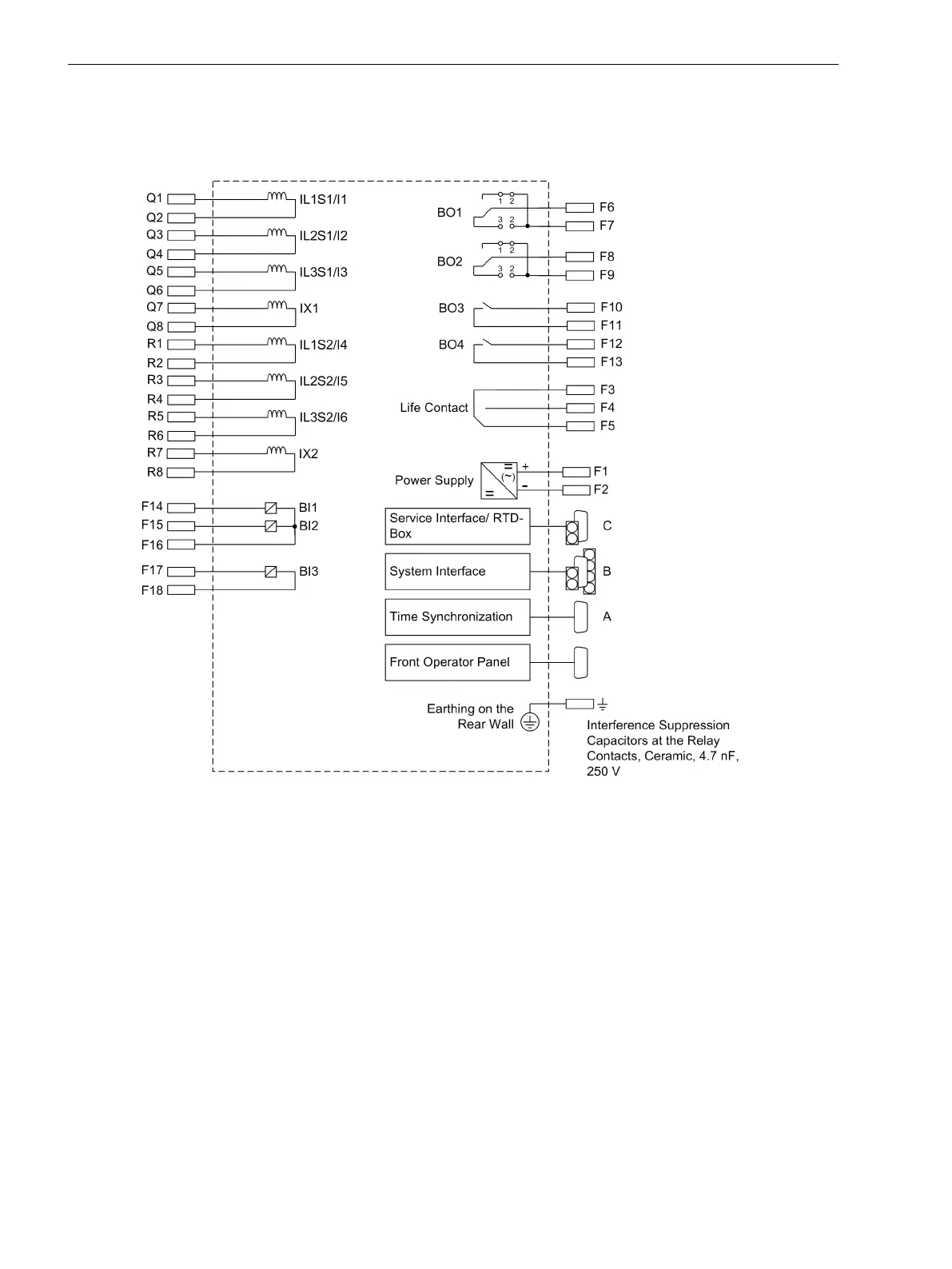

General diagram for 7UT612*-*D/E (panel flush or cubicle mounting)
B.1
Terminal Assignments
B.1 Panel Flush and Cubicle Mounting
484 SIPROTEC 4, 7UT6x, Manual
C53000-G1176-C230-5, Edition 09.2016
