[exteinkopplungen-cfcplan-020926-rei, 1, en_GB]

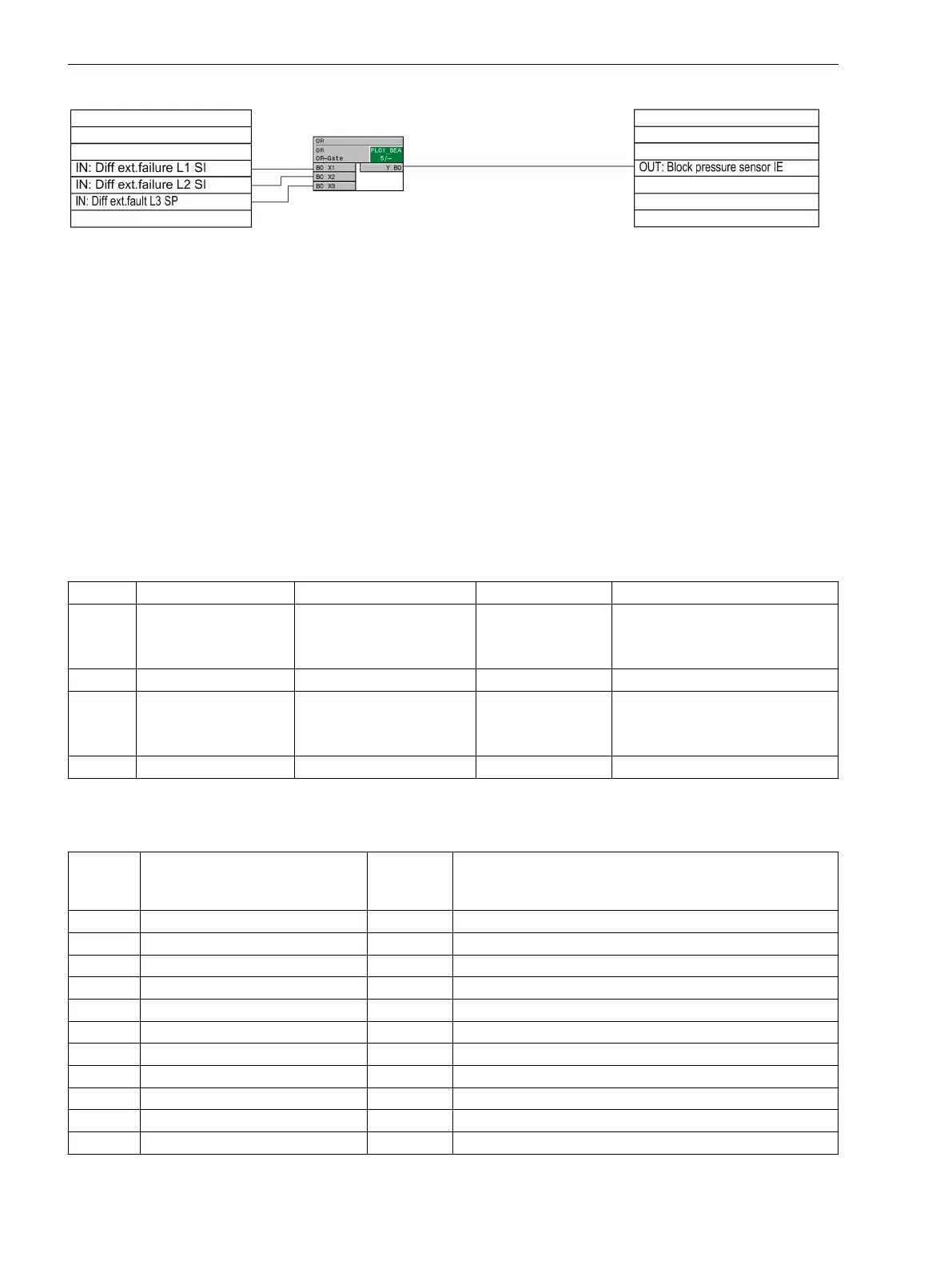

Figure 2-115 CFC chart for blocking of a pressure sensor during external fault
Setting Notes
General
The direct external trip functions are only enabled if addresses 186 EXT. TRIP 1 and/or 187 EXT. TRIP 2
have been set to Enabled during the configuration of the functional scope.
Addresses 8601 EXTERN TRIP 1 and 8701 EXTERN TRIP 2 are used to switch the functions individually
ON or OFF, or to block only the trip command (Block relay).
Signals included from outside can be stabilised by means of a delay time and thus increase the dynamic
margin against interference signals. For external trip functions 1 settings are done in address 8602 T DELAY,
for external trip function 2 in address 8702 T DELAY.
Settings
Addr.
Parameter Setting Options Default Setting Comments
8601 EXTERN TRIP 1 OFF
ON
Block relay
OFF External Trip Function 1
8602 T DELAY 0.00 .. 60.00 sec; ∞ 1.00 sec Ext. Trip 1 Time Delay
8701 EXTERN TRIP 2 OFF
ON
Block relay
OFF External Trip Function 2
8702 T DELAY 0.00 .. 60.00 sec; ∞ 1.00 sec Ext. Trip 2 Time Delay
Information List
No.
Information Type of
Informa-
tion
Comments
4523 >BLOCK Ext 1 SP >Block external trip 1
4526 >Ext trip 1 SP >Trigger external trip 1
4531 Ext 1 OFF OUT External trip 1 is switched OFF
4532 Ext 1 BLOCKED OUT External trip 1 is BLOCKED
4533 Ext 1 ACTIVE OUT External trip 1 is ACTIVE
4536 Ext 1 picked up OUT External trip 1: General picked up
4537 Ext 1 Gen. TRIP OUT External trip 1: General TRIP
4543 >BLOCK Ext 2 SP >BLOCK external trip 2
4546 >Ext trip 2 SP >Trigger external trip 2
4551 Ext 2 OFF OUT External trip 2 is switched OFF
4552 Ext 2 BLOCKED OUT External trip 2 is BLOCKED
2.18.2
2.18.3
2.18.4
Functions
2.18 External Trip Commands
252 SIPROTEC 4, 7UT6x, Manual
C53000-G1176-C230-5, Edition 09.2016
