Voltage Transformer Connection Examples
[7ut613-633-spwandler-030324-rei, 1, en_GB]

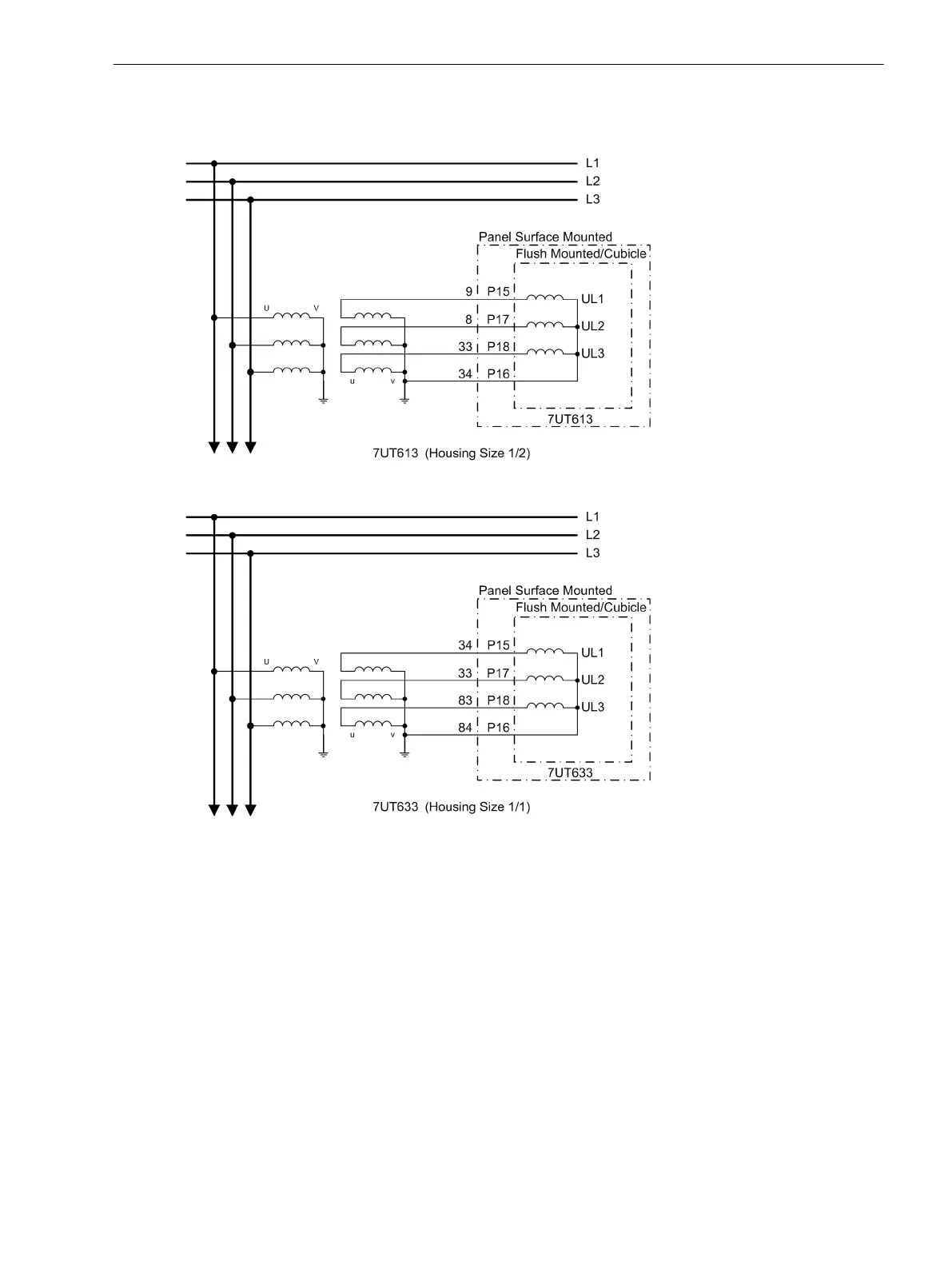

Figure C-17
Voltage connections to three wye-connected voltage transformers (only in 7UT613 and
7UT633)
C.2
Connection Examples
C.2 Voltage Transformer Connection Examples
SIPROTEC 4, 7UT6x, Manual 519
C53000-G1176-C230-5, Edition 09.2016
