[7ut613-sammelschs-mw-030324-rei, 1, en_GB]

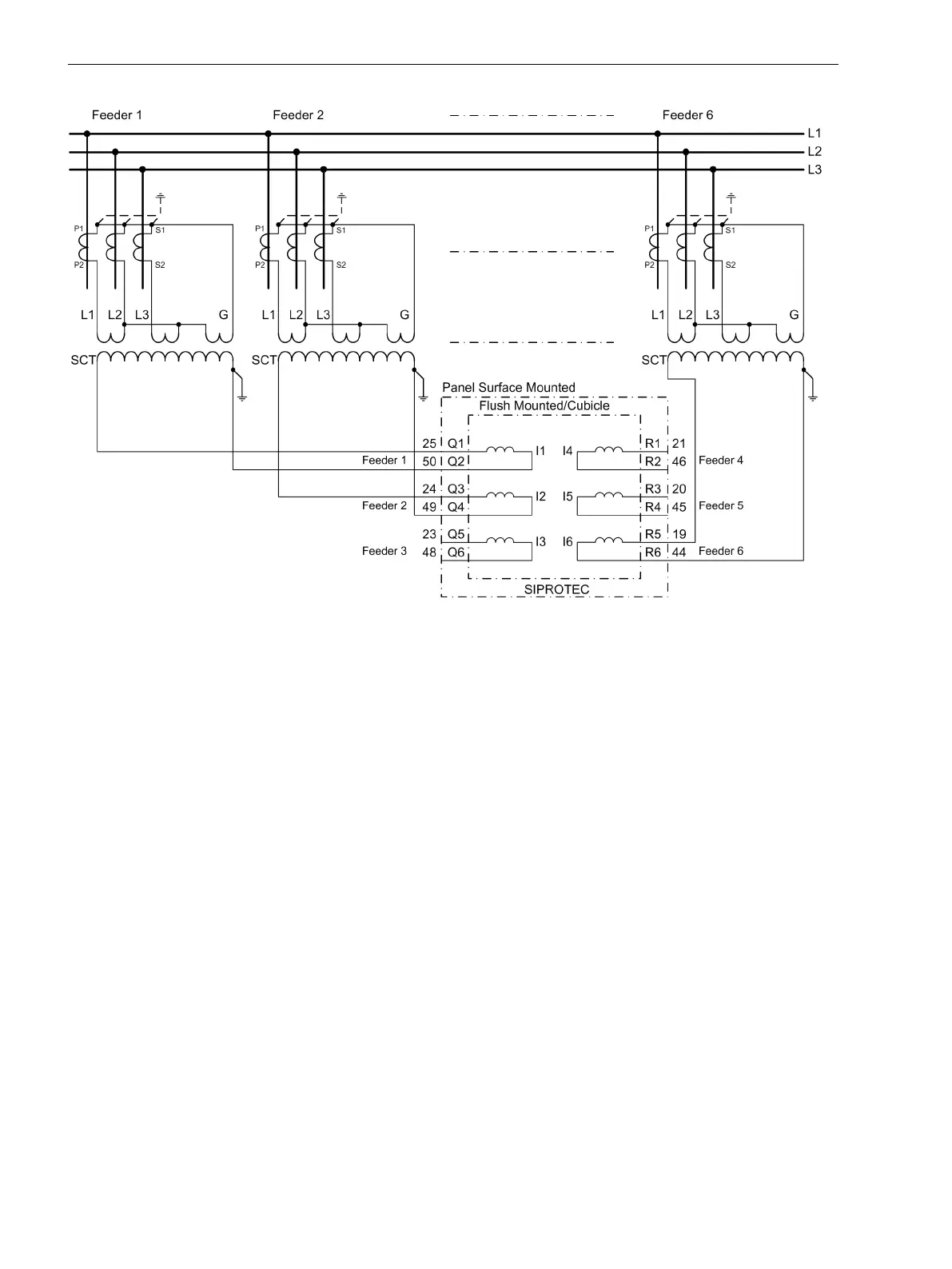

Figure C-16
Connection example 7UT613 as busbar protection for 6 feeders, connected via external
summation transformers (SCT) — partial illustration for feeders 1, 2 and 6
Connection Examples
C.1 Current Transformer Connection Examples
518 SIPROTEC 4, 7UT6x, Manual
C53000-G1176-C230-5, Edition 09.2016
