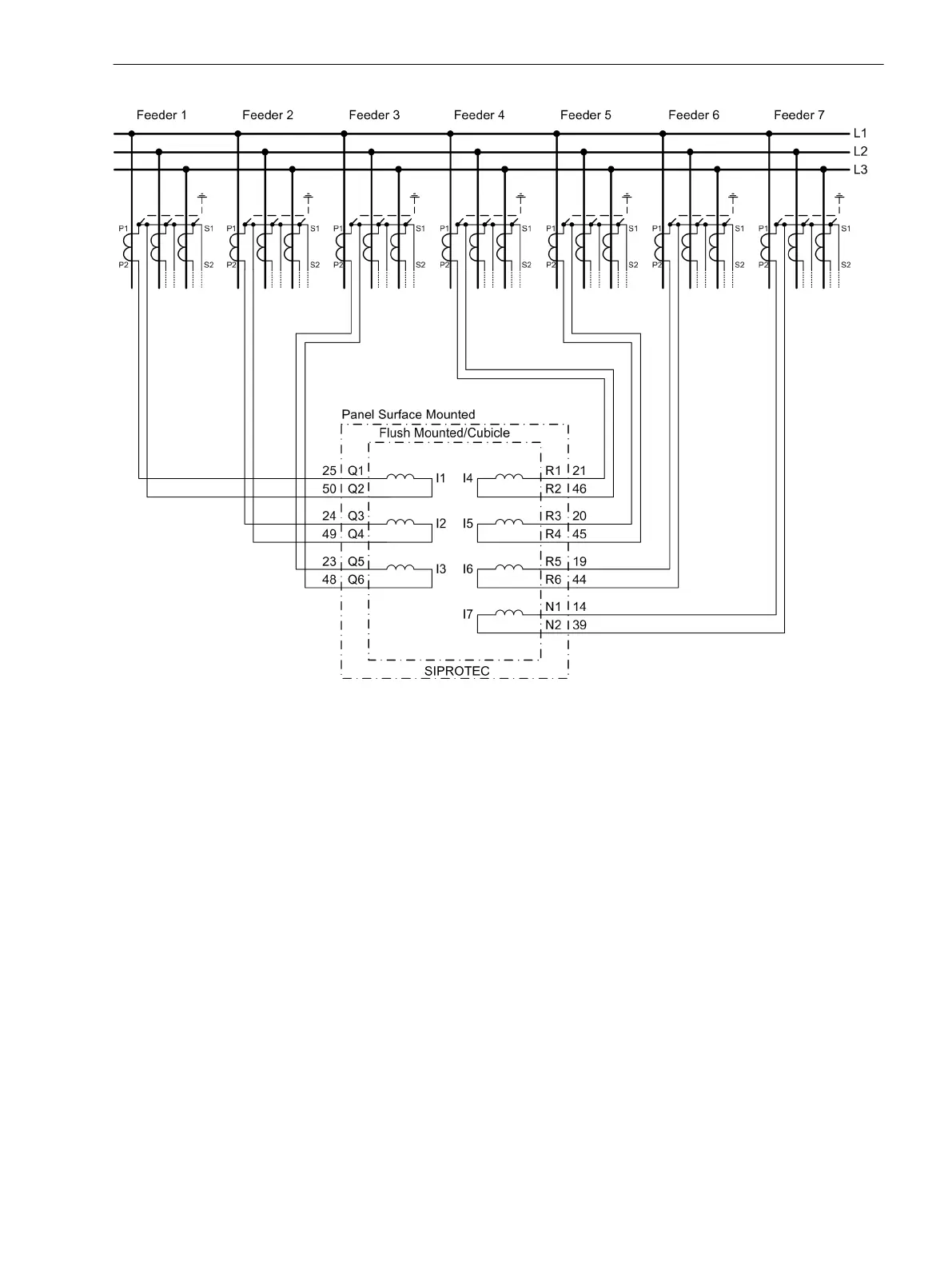

Figure C-15
Connection example 7UT613 as single-phase busbar protection for 7 feeders, illustrated for
phase L1
Connection Examples
C.1 Current Transformer Connection Examples
SIPROTEC 4, 7UT6x, Manual 517
C53000-G1176-C230-5, Edition 09.2016
