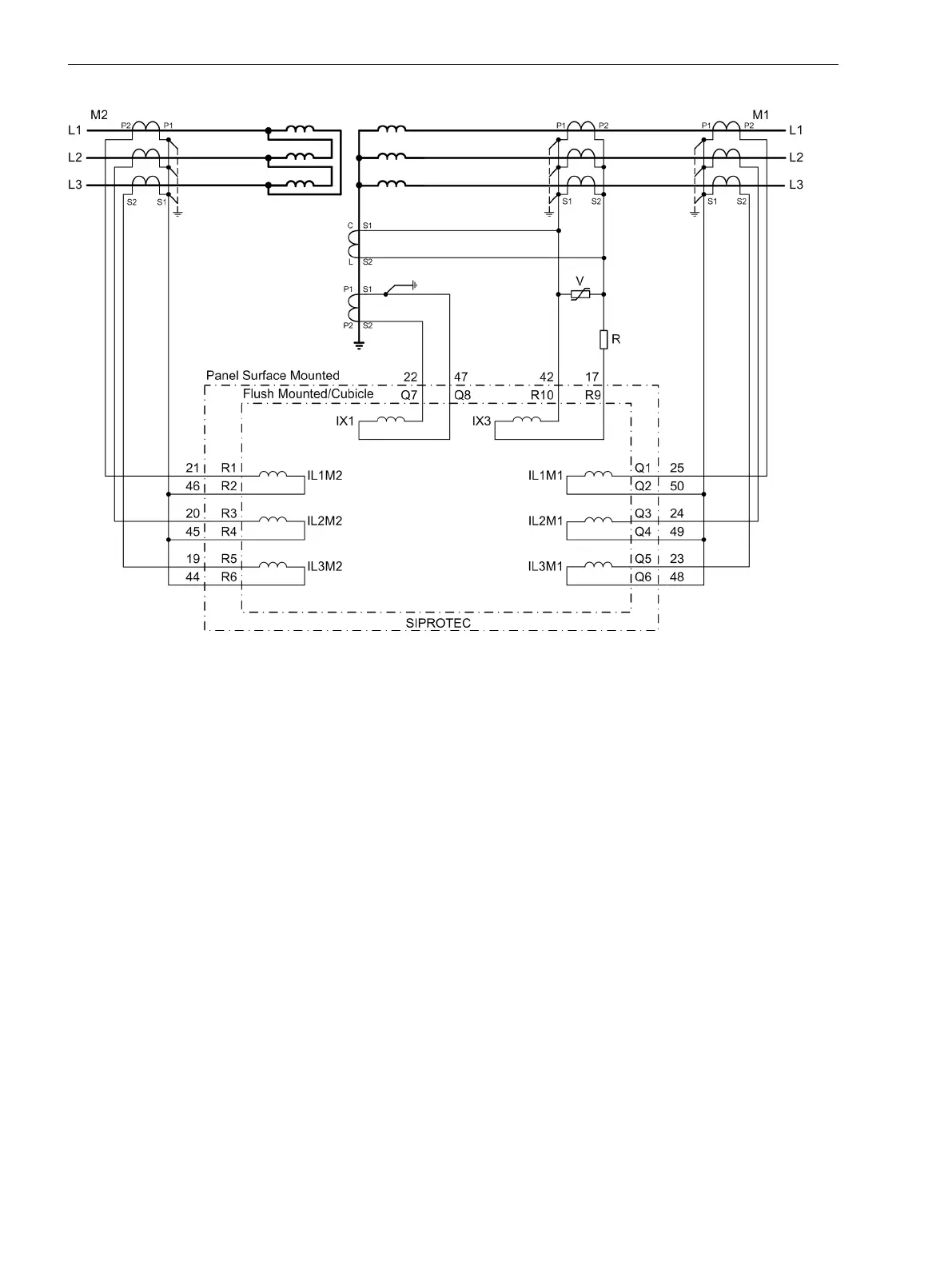

Figure C-14
Connection example 7UT613 for a three-phase power transformer with current transformers
between starpoint and earthing point, additional connection for high-impedance protection;
Ι
X3
connected to the highsensitivity input
Connection Examples
C.1 Current Transformer Connection Examples
516 SIPROTEC 4, 7UT6x, Manual
C53000-G1176-C230-5, Edition 09.2016
