[7ut613-hochimpedanz-030324-rei, 1, en_GB]

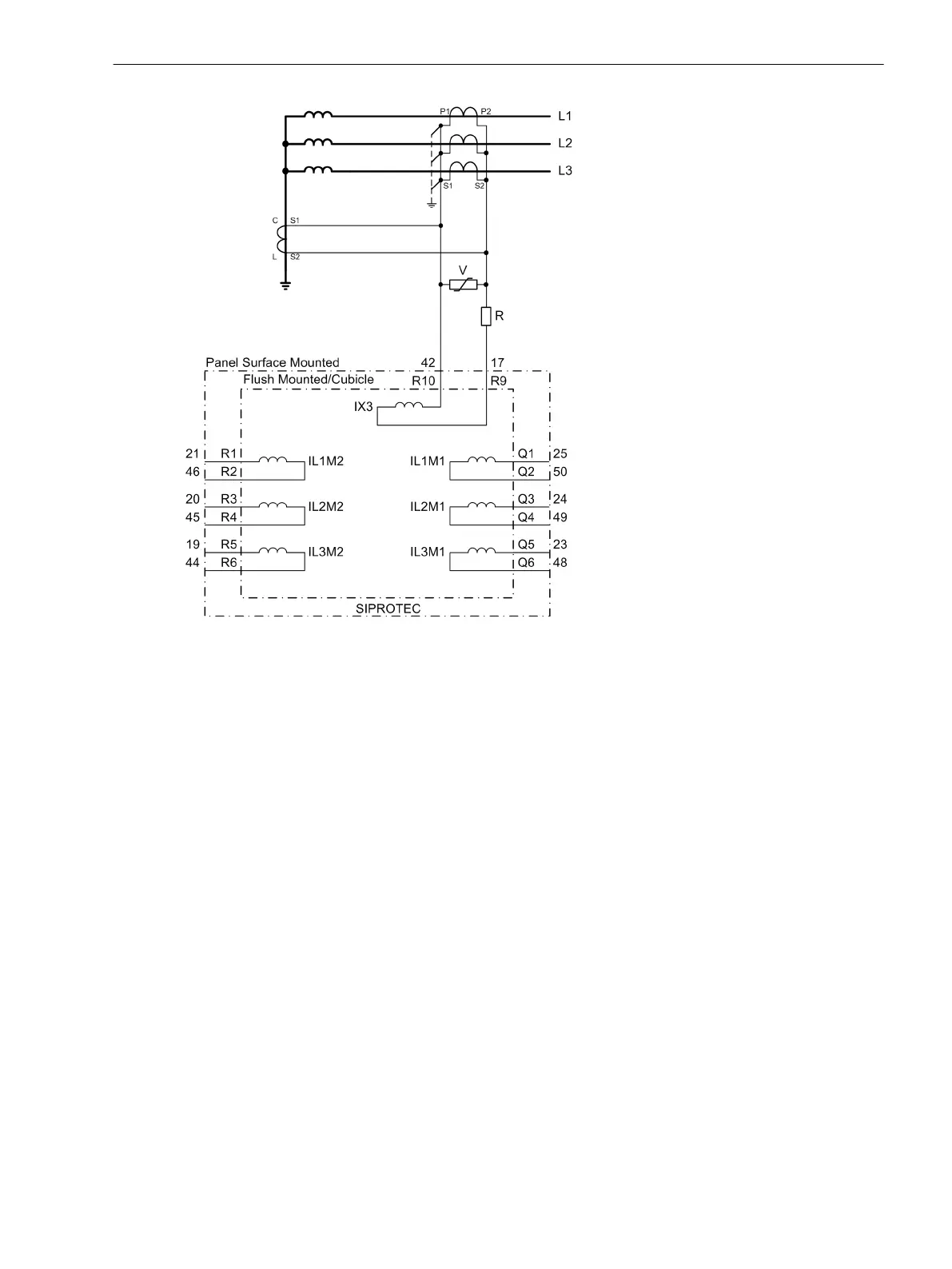

Figure C-13
Connection example 7UT613 as high-impedance protection on a transformer winding with
earthed starpoint (the illustration shows the partial connection of the high-impedance protec-
tion); Ι
X3
is connected to the high-sensitivity input
Connection Examples
C.1 Current Transformer Connection Examples
SIPROTEC 4, 7UT6x, Manual 515
C53000-G1176-C230-5, Edition 09.2016
