Siemens SIPROTEC 4 7UT6 Series User Manual

Dimensions
Panel surface mounting (housing size
1
/
3
)
[tdschalttafelaufbau-7ut612-021026-rei, 1, en_GB]

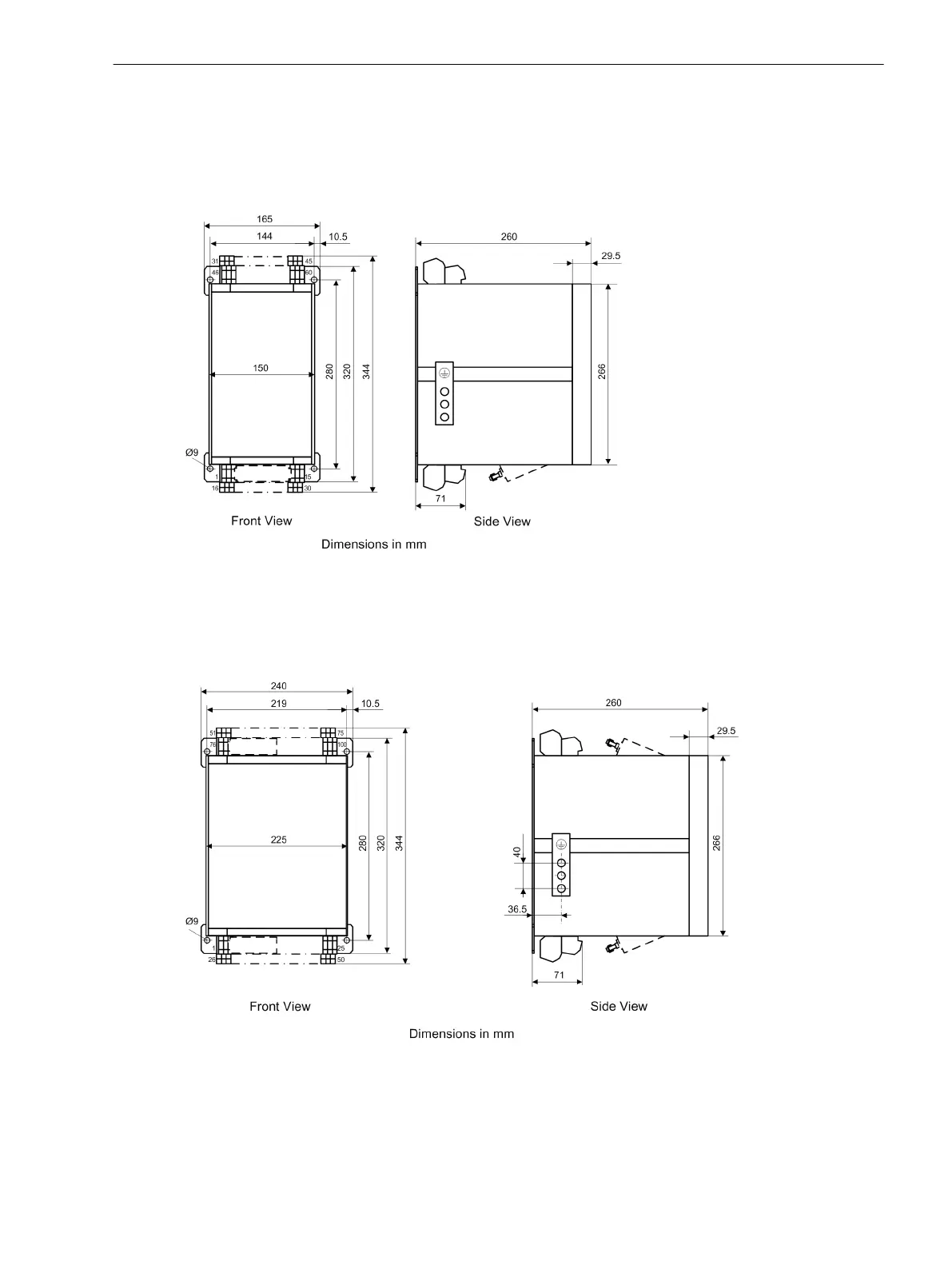

Figure 4-20
Dimensions of a 7UT612 for panel surface mounting (housing size
1
/
3
)
Panel Surface Mounting (housing Size
1
/
2
)
[schalttafelaufbau-halb-020313-kn, 1, en_GB]
Figure 4-21
Dimensional drawing of a 7UT613 for panel surface mounting (housing size
1
/
2
)
4.23
4.23.1
4.23.2
Technical Data
4.23 Dimensions
SIPROTEC 4, 7UT6x, Manual 465
C53000-G1176-C230-5, Edition 09.2016
