Panel Surface Mounting (housing Size
1
/
1
)
[schalttafelaufbau-voll-020313-kn, 1, en_GB]

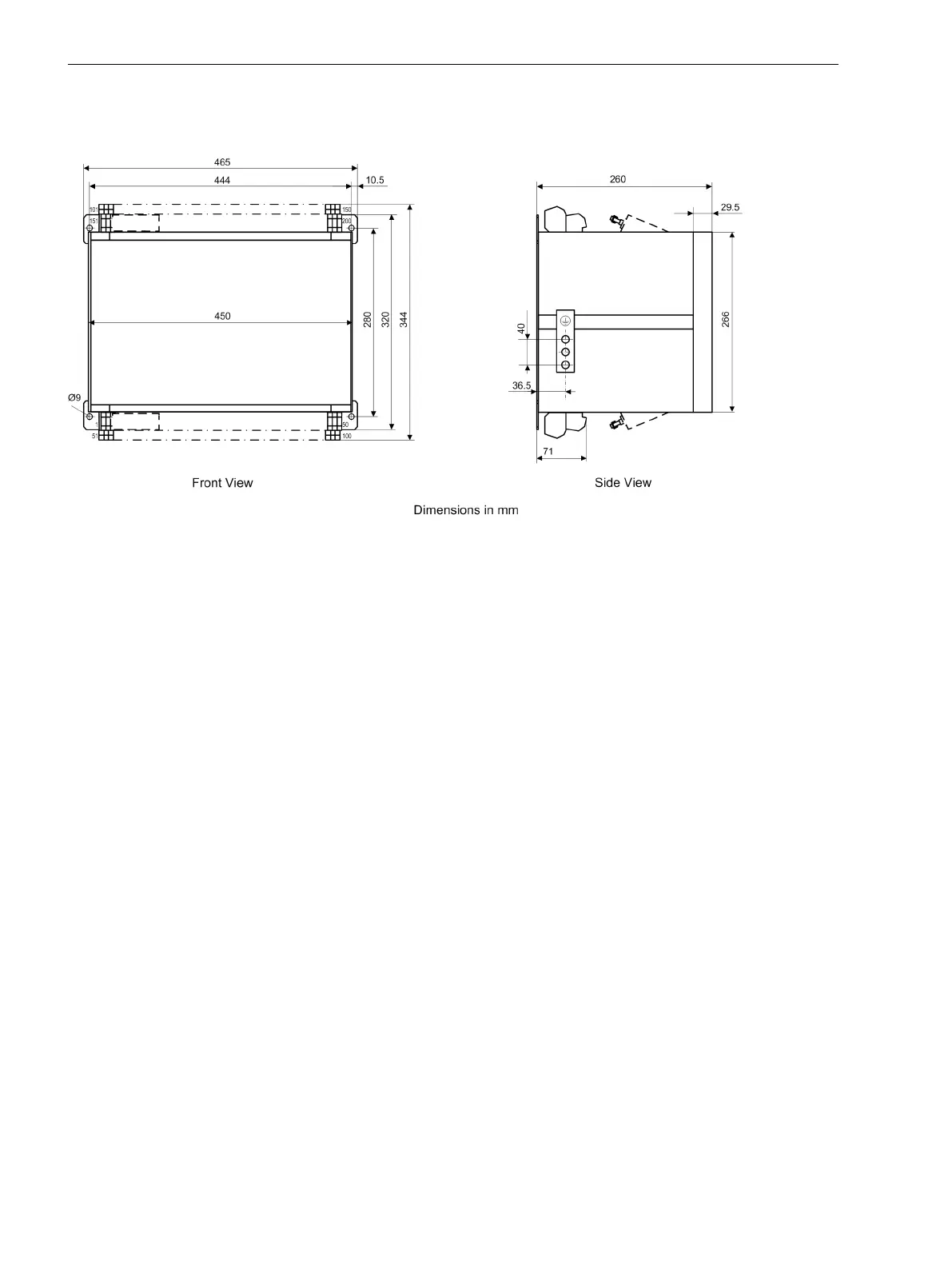

Figure 4-22
Dimensional drawing of a 7UT633 or 7UT635 for panel surface mounting (housing size
1
/
1
)
4.23.3
Technical Data
4.23 Dimensions
466 SIPROTEC 4, 7UT6x, Manual
C53000-G1176-C230-5, Edition 09.2016
