[7ut613-633-spwandler-dreieckw-030324-rei, 1, en_GB]

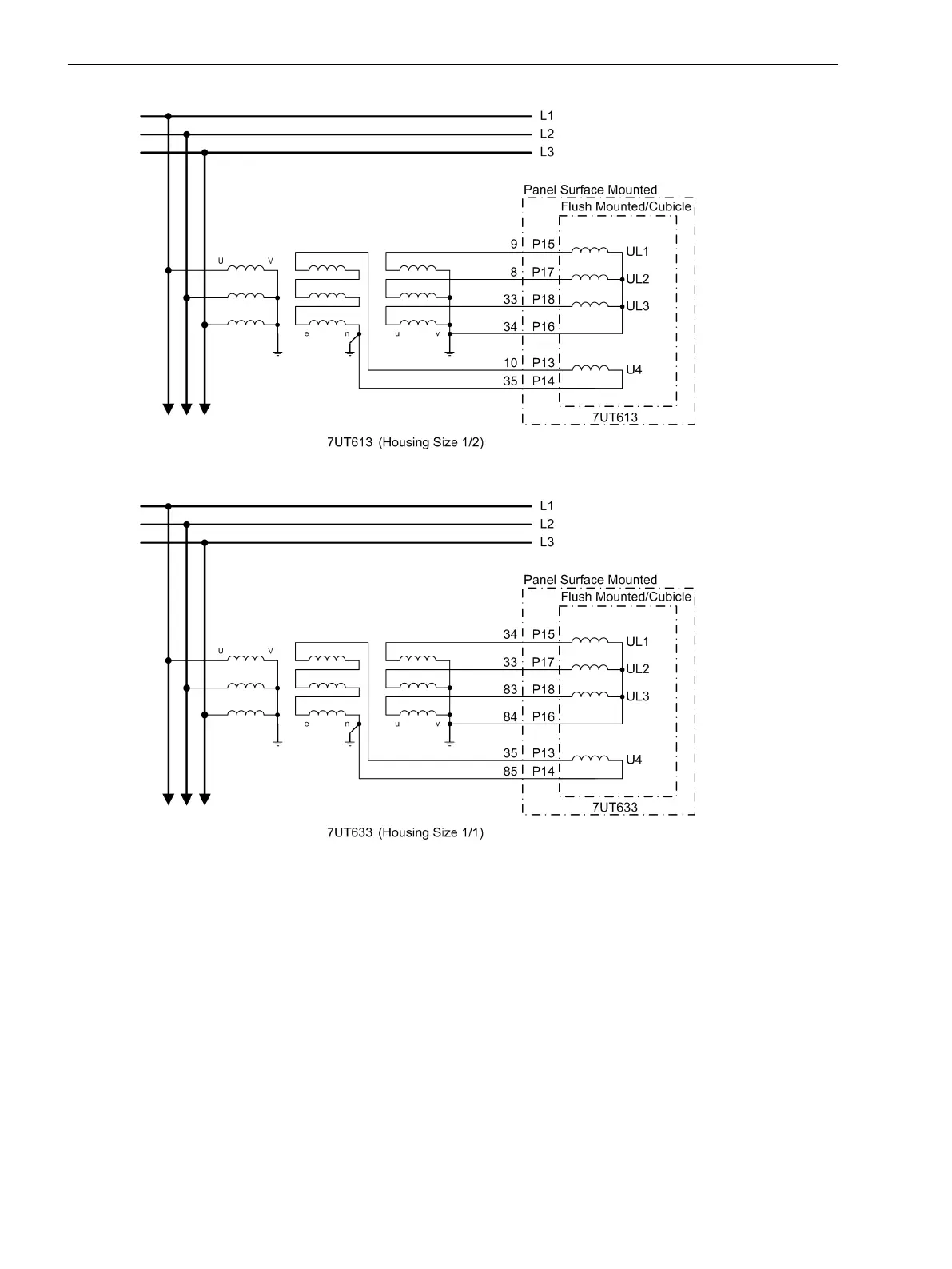

Figure C-18
Voltage connections to three wye-connected voltage transformers with additional open-delta
windings (e-n–windings; only in 7UT613 and 7UT633)
Connection Examples
C.2 Voltage Transformer Connection Examples
520 SIPROTEC 4, 7UT6x, Manual
C53000-G1176-C230-5, Edition 09.2016
