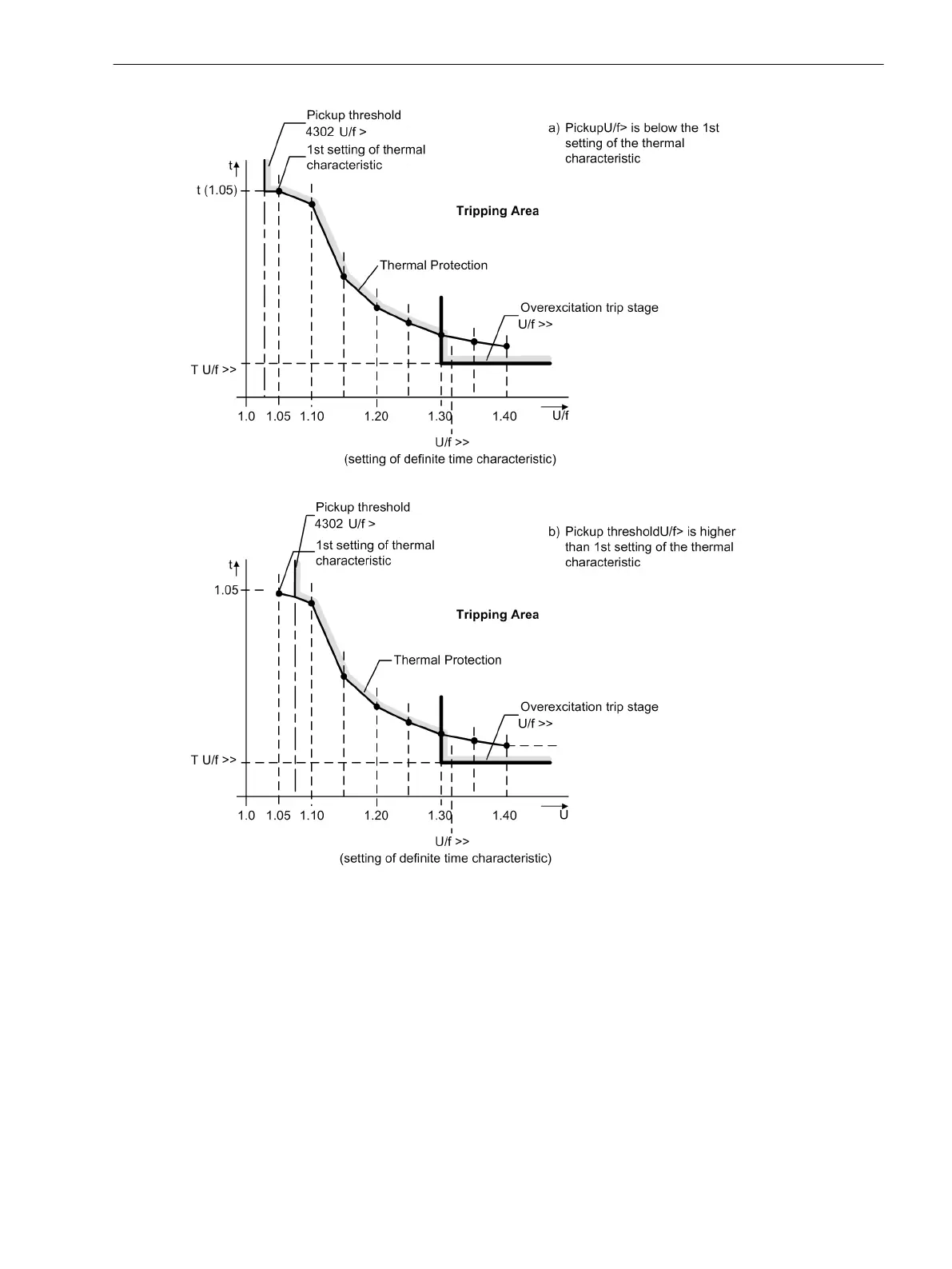

Figure 2-103
Tripping time characteristic of the overexcitation protection
Otherwise, any tripping characteristic can be specified by point-wise entering the delay times for the 8 prede-
fined U/f-values:
Address 4306
t(U/f=1.05)
Adresse 4307t(U/f=1.10)
Address 4308t(U/f=1.15)
Address 4309t(U/f=1.20)
Address 4310t(U/f=1.25)
Address 4311t(U/f=1.30)
Address 4312t(U/f=1.35)
Address 4313t(U/f=1.40)
