[montage-gehaeuse-4zeilig-display-halb-st-040403, 1, en_GB]

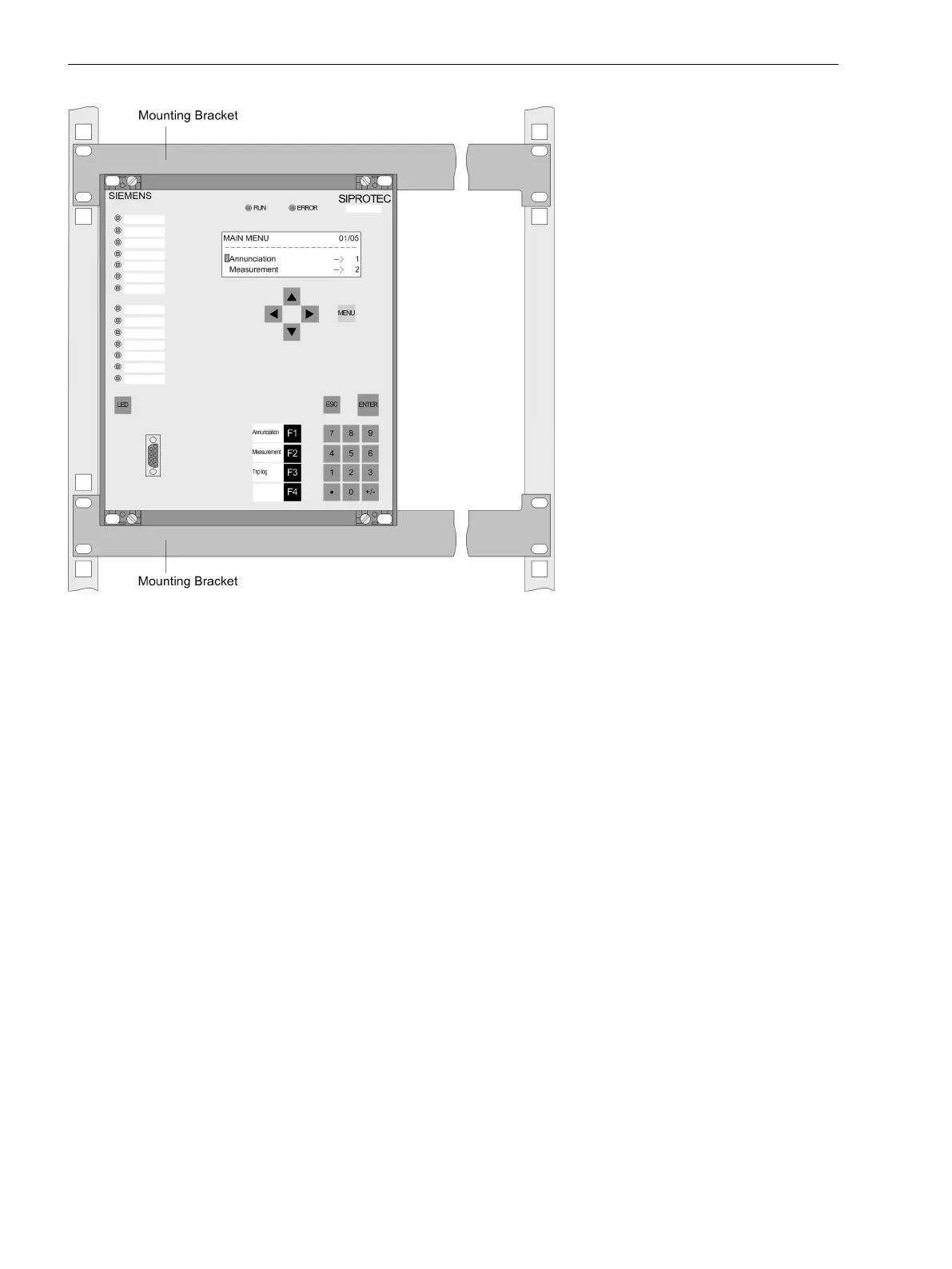

Figure 3-24
Installation of a 7UT613 in a rack or cubicle (housing size
1
/
2
) – example
Mounting and Commissioning
3.1 Mounting and Connections
346 SIPROTEC 4, 7UT6x, Manual
C53000-G1176-C230-5, Edition 09.2016
