[ausl-rueckfallkennl-amz-ansi-lang-maessig-170502-wlk, 1, en_GB]

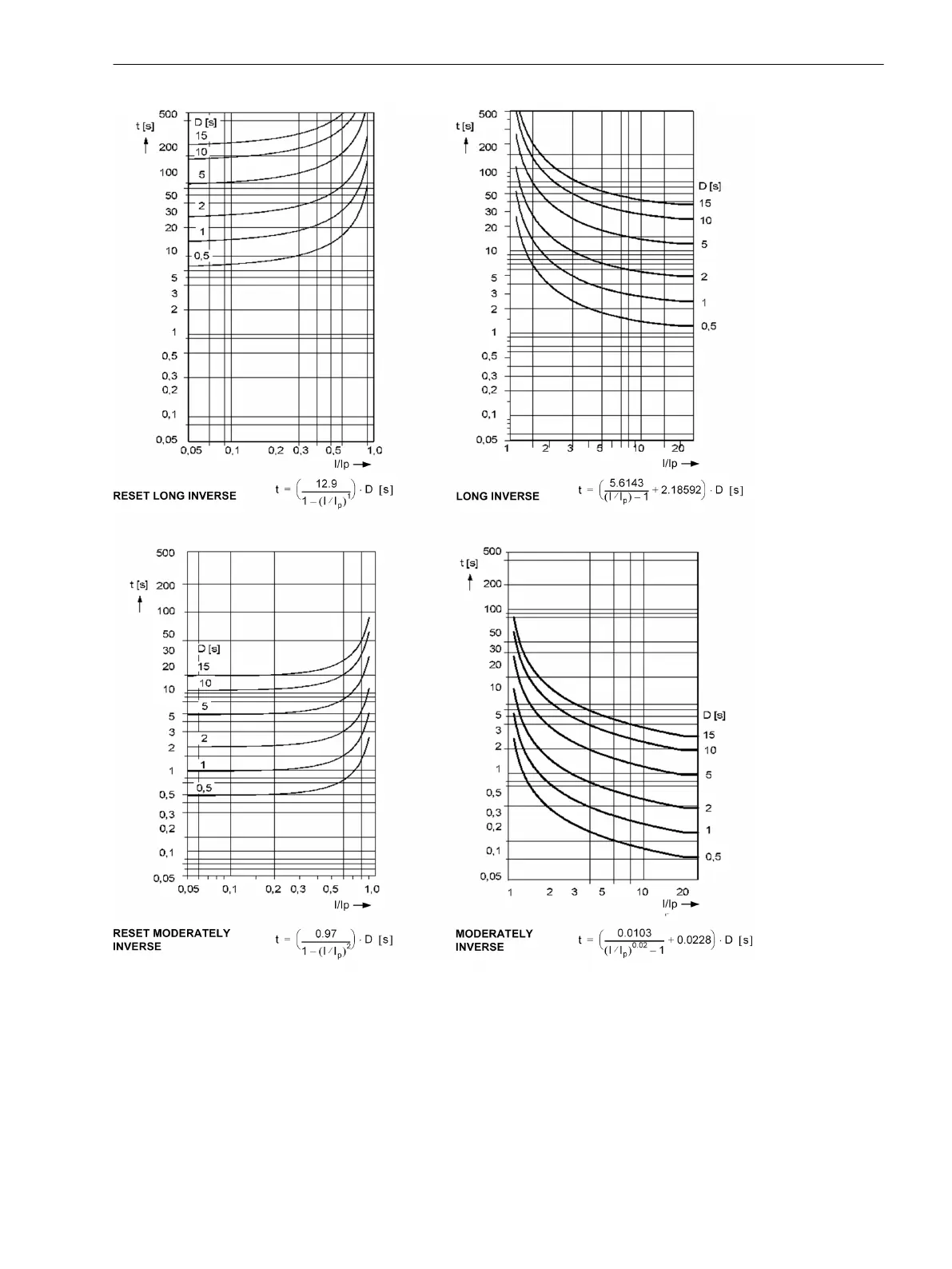

Figure 4-10
Dropout time and trip time curves of the inverse time overcurrent protection, acc. to ANSI/IEEE
Technical Data
4.4 Time Overcurrent Protection for Residual Current
SIPROTEC 4, 7UT6x, Manual 425
C53000-G1176-C230-5, Edition 09.2016
