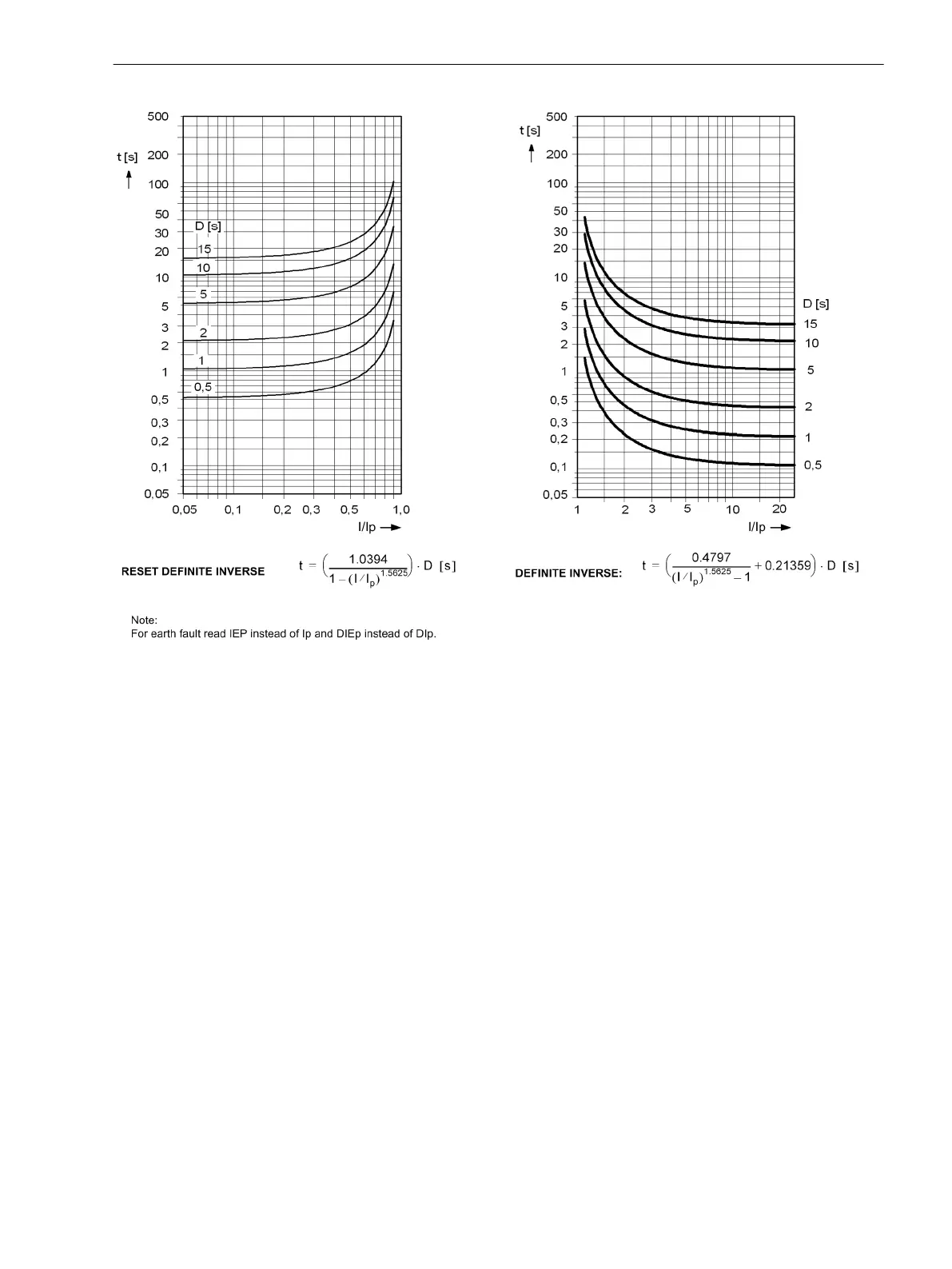

Figure 4-12
Dropout time and trip time curve of the inverse time overcurrent protection, acc. to ANSI/IEEE
Technical Data
4.4 Time Overcurrent Protection for Residual Current
