[ausl-rueckfall-schieflast-ansi-stark-extrem-170502-wlk, 1, en_GB]

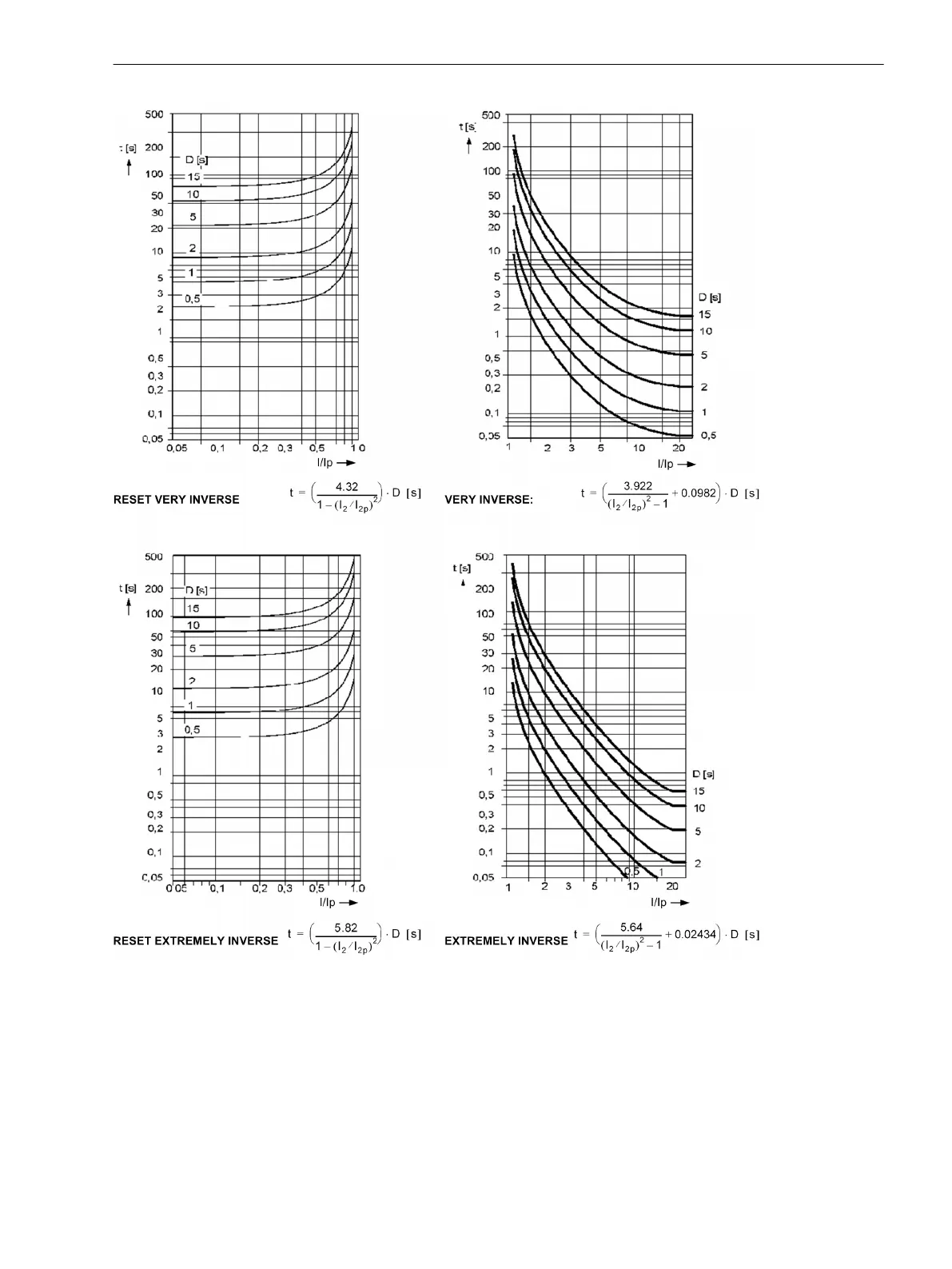

Figure 4-17
Dropout time and trip time characteristics of the inverse time unbalanced load stage, acc. to
ANSI
Technical Data
4.8 Unbalanced Load Protection
SIPROTEC 4, 7UT6x, Manual 439
C53000-G1176-C230-5, Edition 09.2016
