[td_ueber_auslkennl-030407-rei, 1, en_GB]

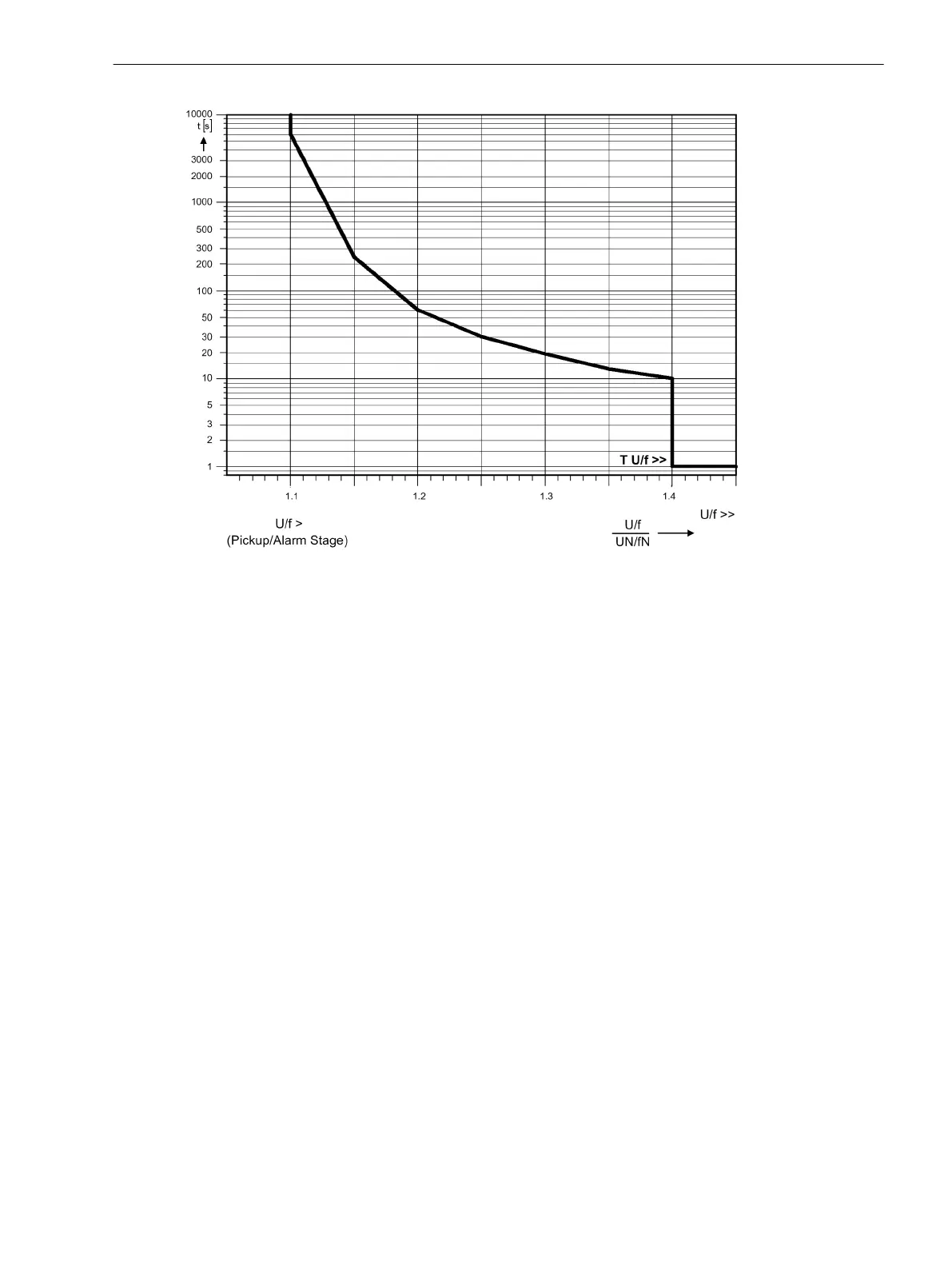

Figure 4-19
Resulting tripping characteristic from thermal replica and stepped characteristic of the overex-
citation protection (default settings)
Technical Data
4.11 Overexcitation Protection
SIPROTEC 4, 7UT6x, Manual 445
C53000-G1176-C230-5, Edition 09.2016
