7UT635*-* P/Q
[7ut635-pq1, 1, en_GB]

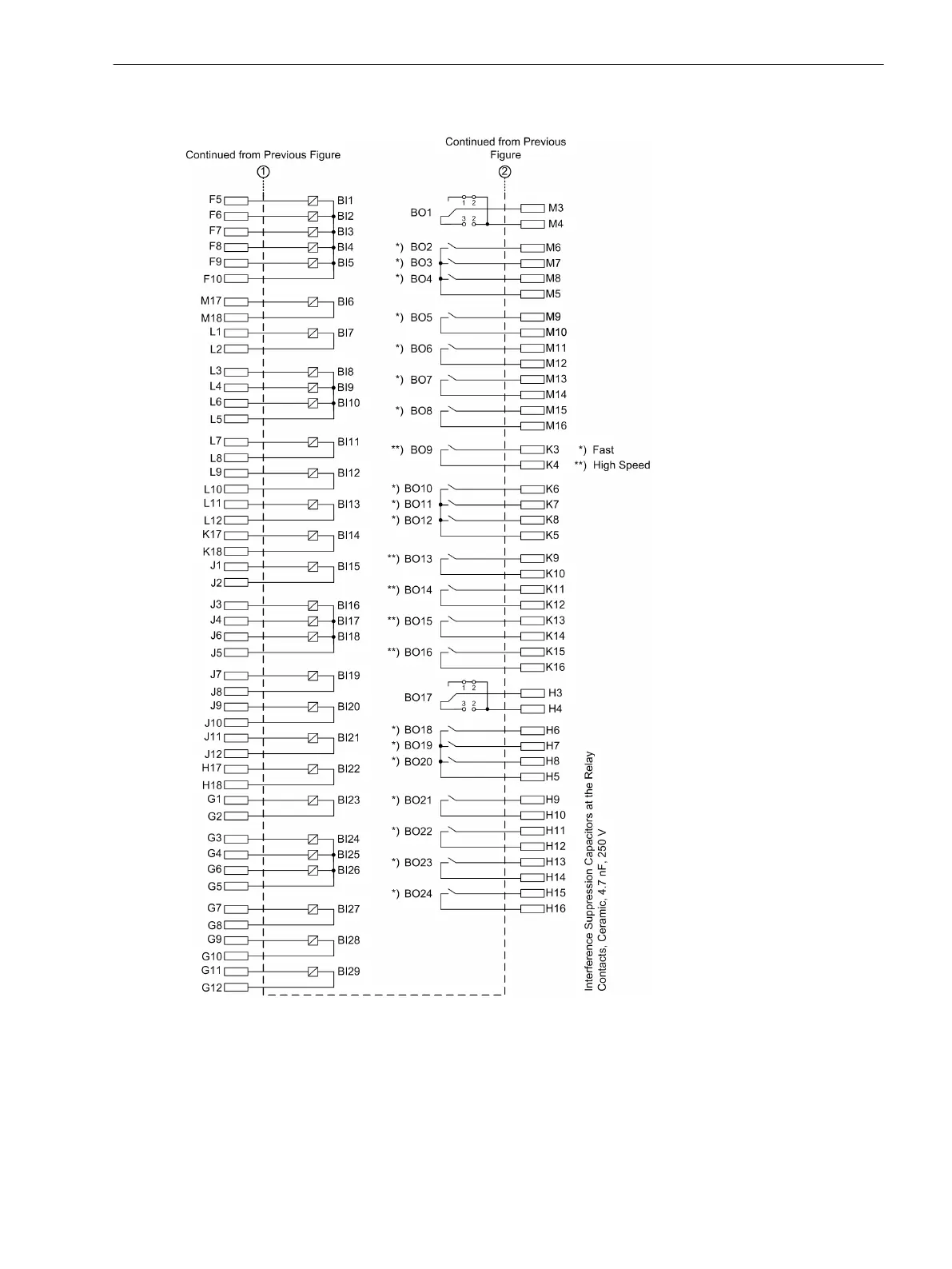

Figure B-6
General diagram 7UT635 (cubicle mounting)
Terminal Assignments
B.1 Panel Flush and Cubicle Mounting
SIPROTEC 4, 7UT6x, Manual 493
C53000-G1176-C230-5, Edition 09.2016
