7UT613*-* B
[7ut613-b-030324-rei, 1, en_GB]

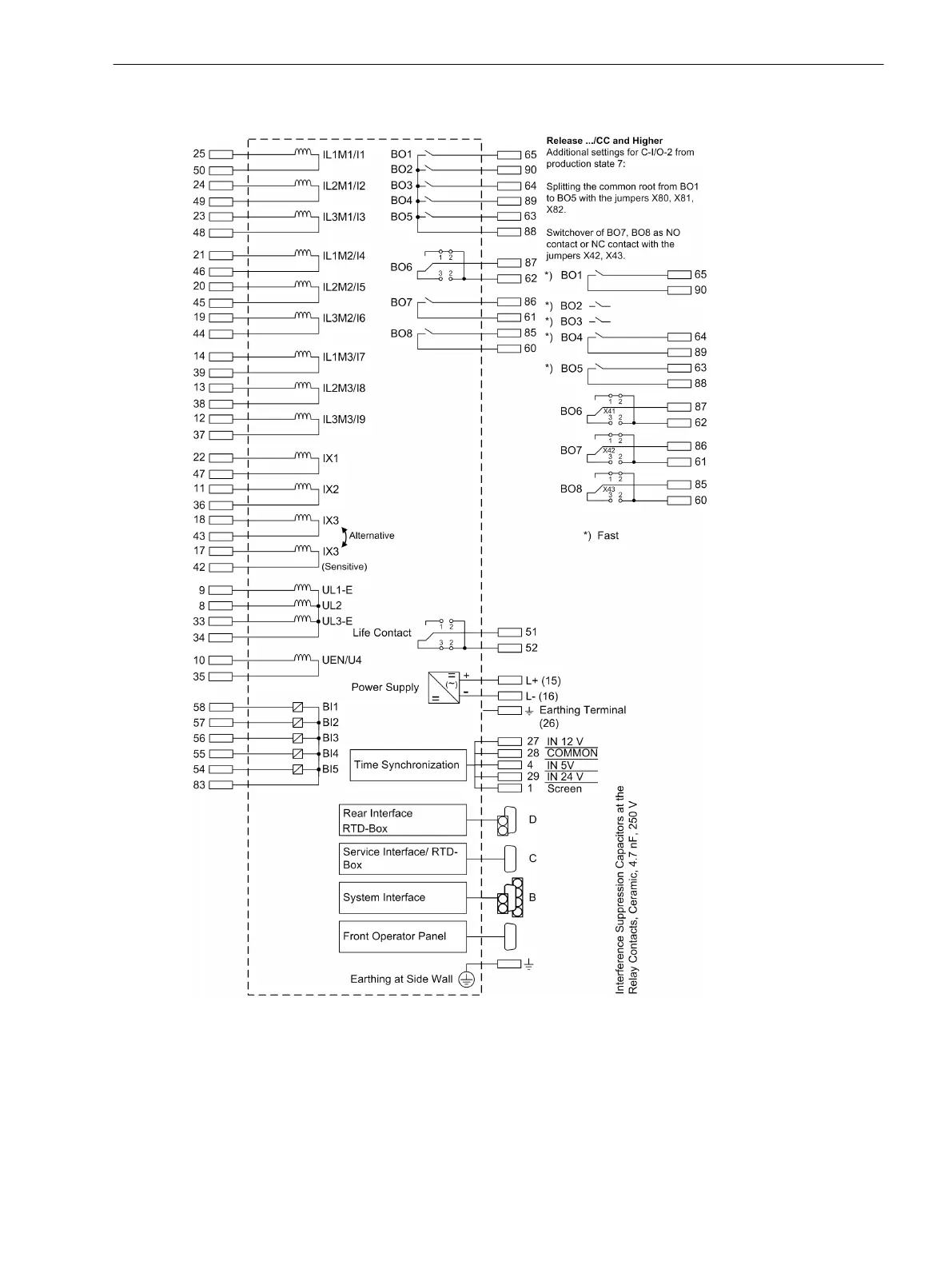

Figure B-8
General diagram 7UT613 (panel surface mounting)
Terminal Assignments
B.2 Panel Surface Mounting
SIPROTEC 4, 7UT6x, Manual
495
C53000-G1176-C230-5, Edition 09.2016
494
496
