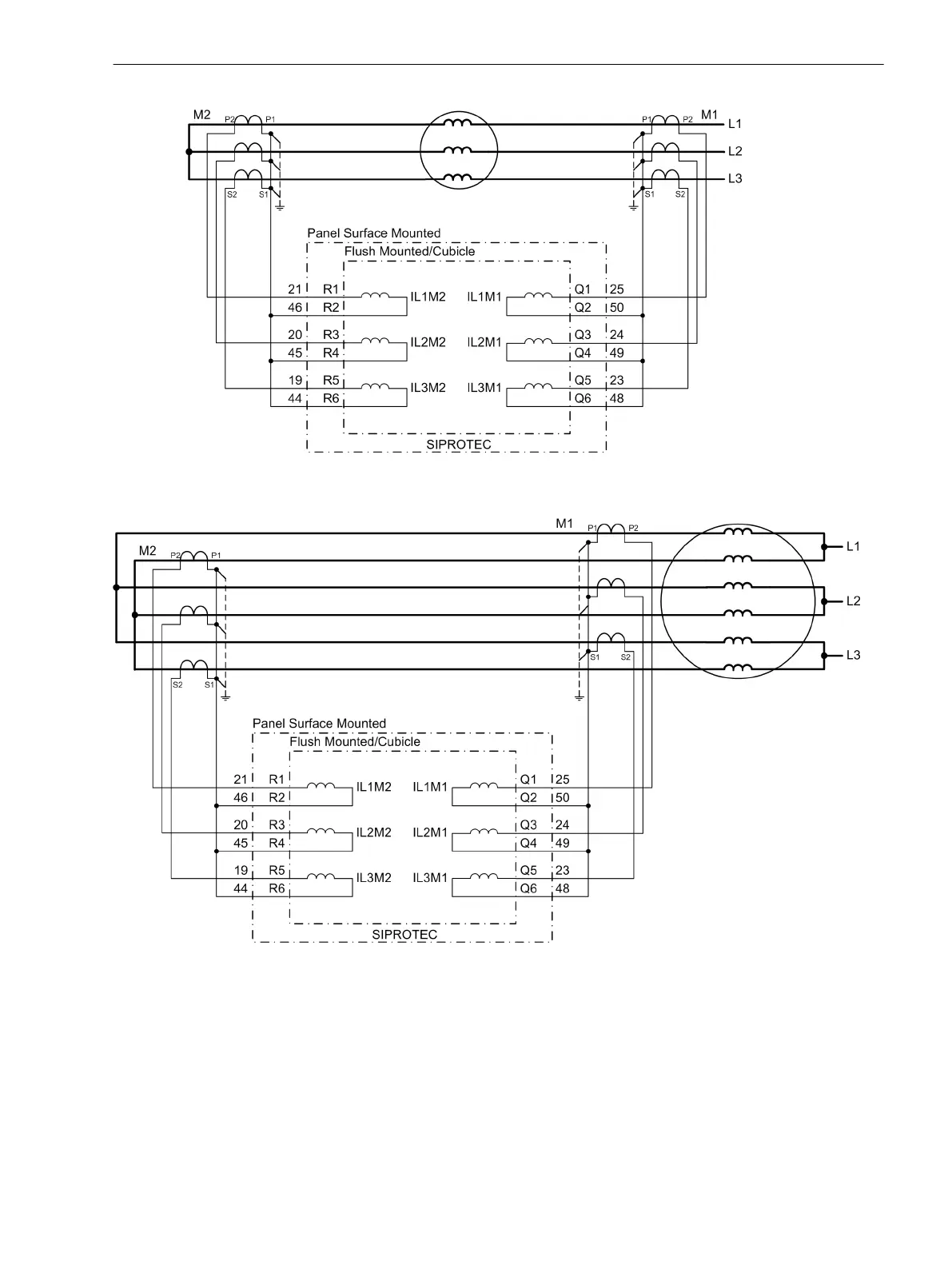

Figure C-10 Connection example 7UT613 for a generator or motor
[7ut613-querdiff-generator-030324-rei, 1, en_GB]
Figure C-11
Connection example 7UT613 as transversal differential protection for a generator with two
windings per phase
Connection Examples
C.1 Current Transformer Connection Examples
SIPROTEC 4, 7UT6x, Manual 513
C53000-G1176-C230-5, Edition 09.2016
