Processor Board A–CPU for 7SJ62.../FF
[prozbgr-a-cpu-geraetebises-ff-20070319, 1, en_US]

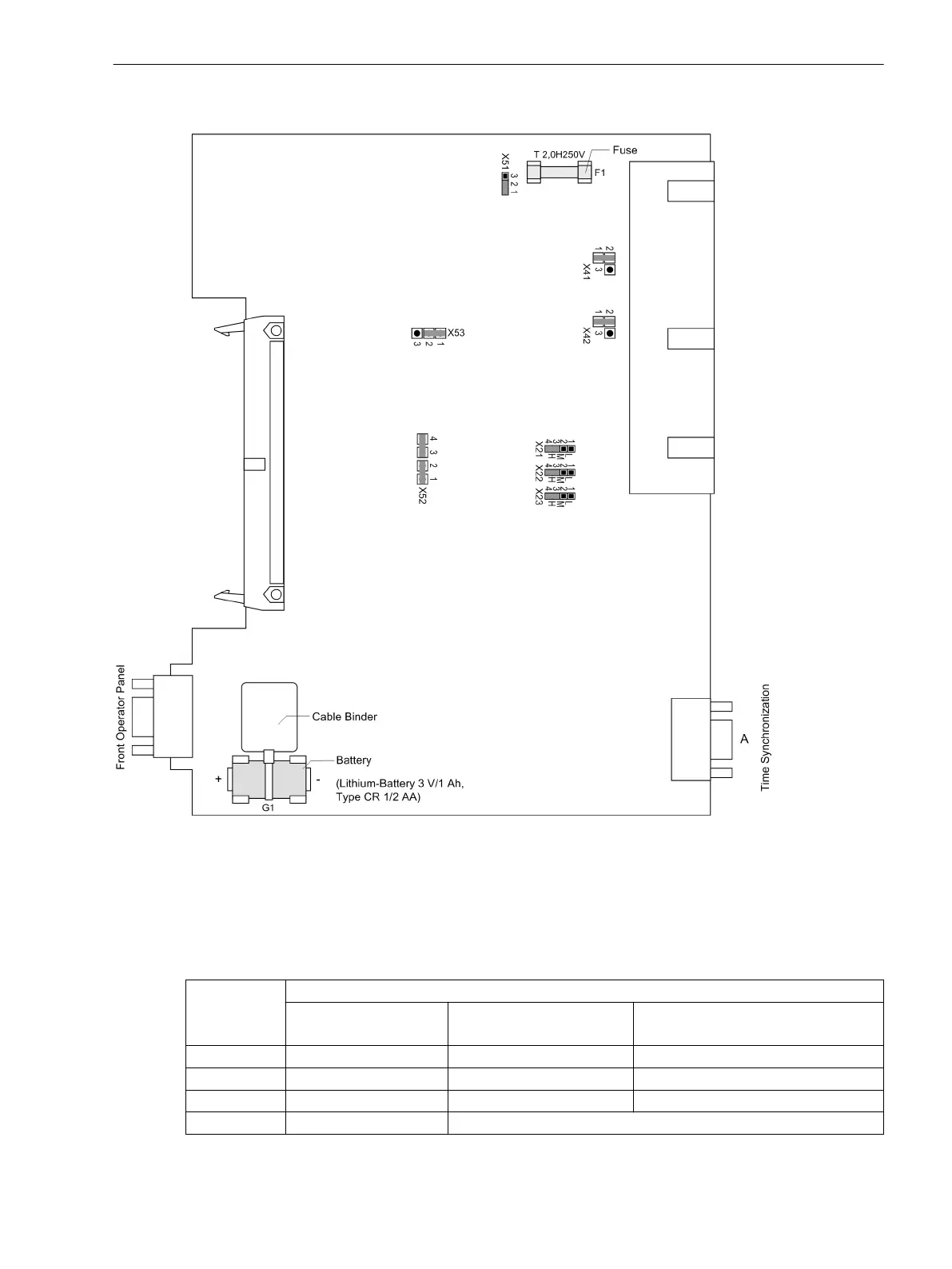

Figure 3-11
Processor printed circuit board A–CPU for devices releases .../FF and higher with jumpers
settings required for the module configuration (as from firmware V4.7)
Power Supply
Table 3-7
Jumper settings for the nominal voltage of the integrated power supply on the processor
board A–CPU as from 7SJ62.../FF
Jumper Nominal Voltage
DC 24 V/ 48 V DC 60 V to 125 V DC 110 V to 250 V,
AC 115 V to 230 V
X51 not used 1-2 2-3
X52 not used 1-2 and 3-4 2-3
X53 not used 1-2 2-3
not changeable interchangeable
Mounting and Commissioning
3.1 Mounting and Connections
SIPROTEC 4, 7SJ62/64, Manual 381
C53000-G1140-C207-8, Edition 08.2016
